AR67.10-P-1200P Remove/Install Windshield Molding

AR67.10-P-1200P Remove/Install Windshield Molding
- except CODE (413) Panorama sliding roof [models 203.7]

Illustrated On Model 203.0:

1 Loosen water deflector (1) in area of windshield on left and right (see arrows).
2 Lift windshield molding (2) at side and pull out.

See "Special Tools" given below.

3 Install molding (2), align at side and press on
4 Fasten water deflector (1) on left and right in windshield area


Special Tools

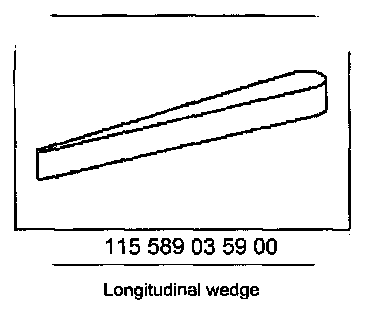

Longitudinal Wedge, P/N # 115 589 03 59 00:
