Home >> Mercedes Benz >> 2006 >> C 280 4MATIC (203.092) V6-3.0L (272.941) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Glass >> Front Door Window Glass >> Service and Repair >> AR72.10-P-1900P Remove/Install Crank Window In Front Door

AR72.10-P-1900P Remove/Install Crank Window In Front Door



AR72.10-P-1900P Remove/Install Crank Window In Front Door
- Without window clamp

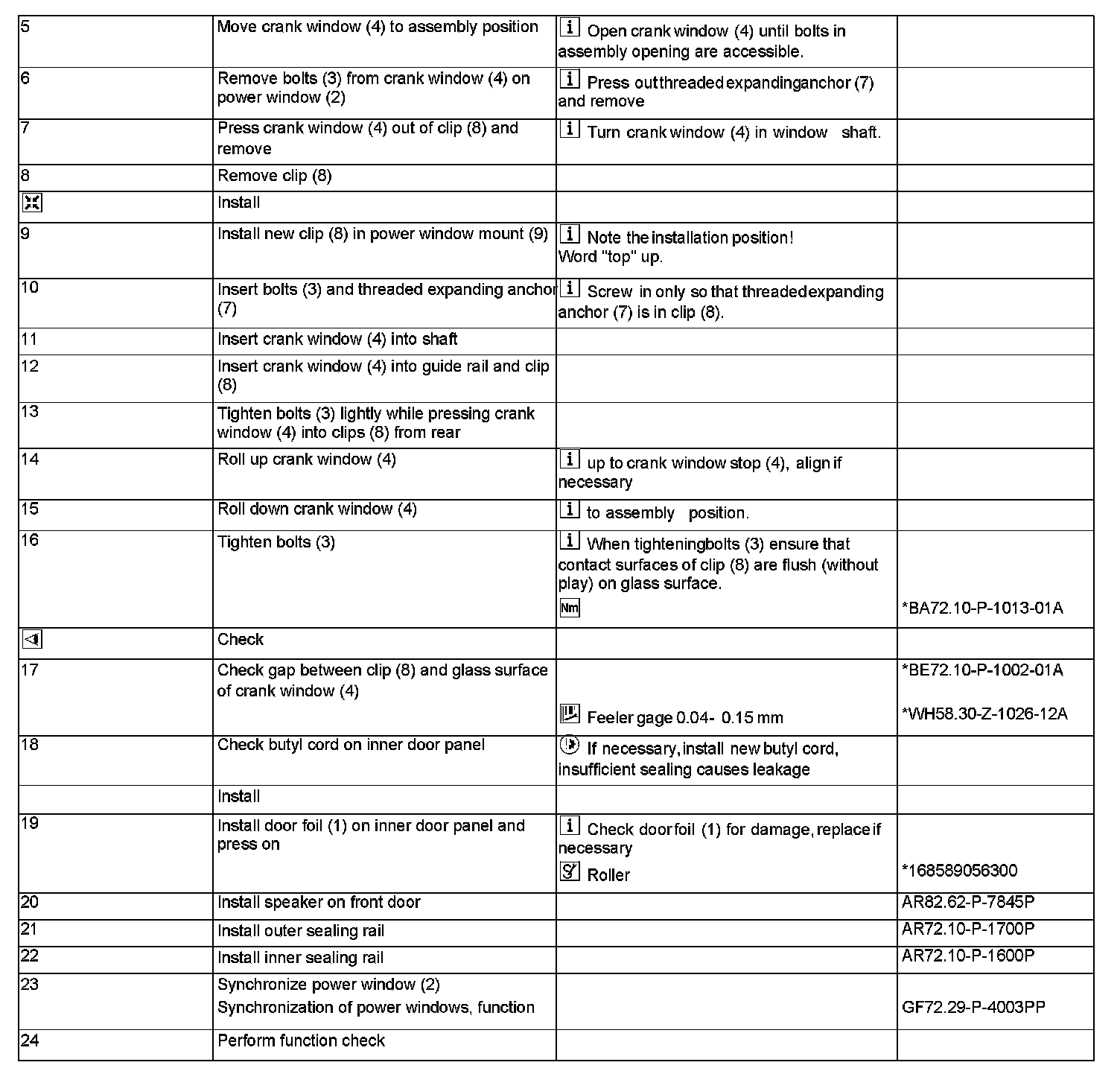

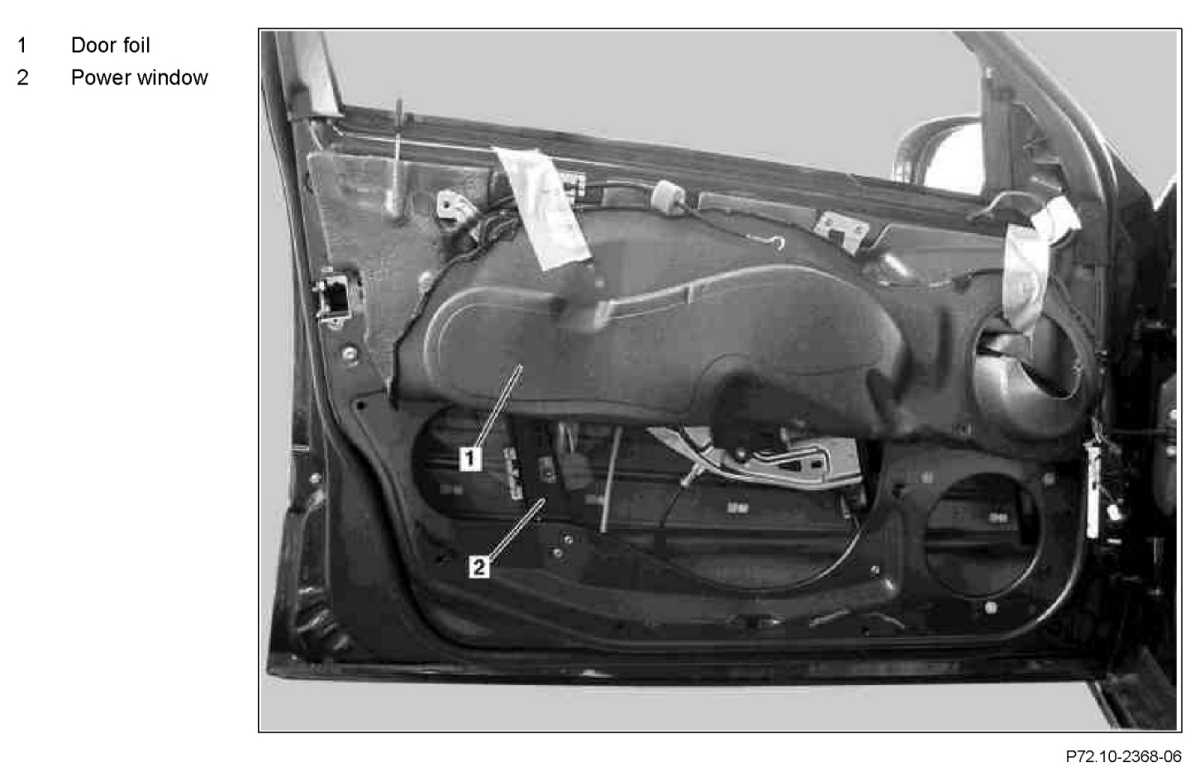

Part 1:

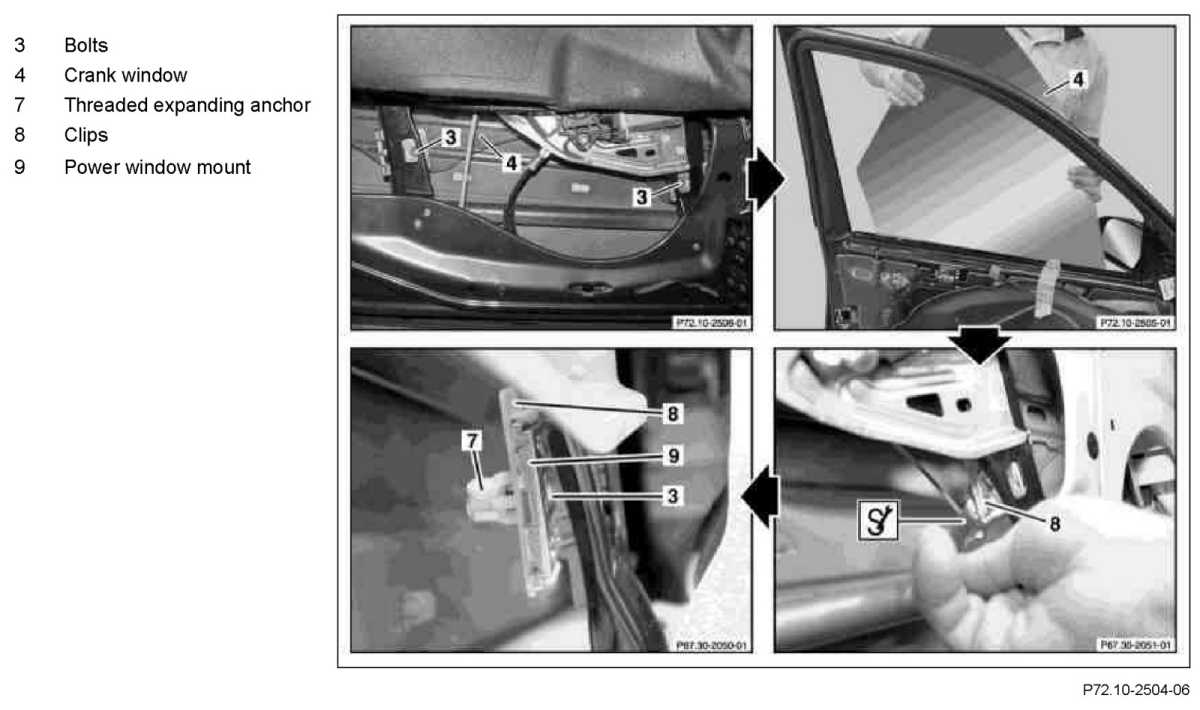

Part 2:

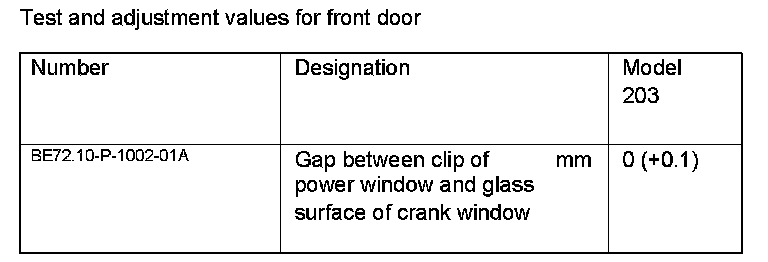

Test and Adjustment Values for Front Door:






Front Door:
