AR35.31-P-0550-02PA Removing Tapered Roller Bearing Outer Race From Rear Axle Housing

AR35.31-P-0550-02PA Removing tapered roller bearing outer race from rear axle housing
- Rear axle center assembly dia. 185, 198, 210

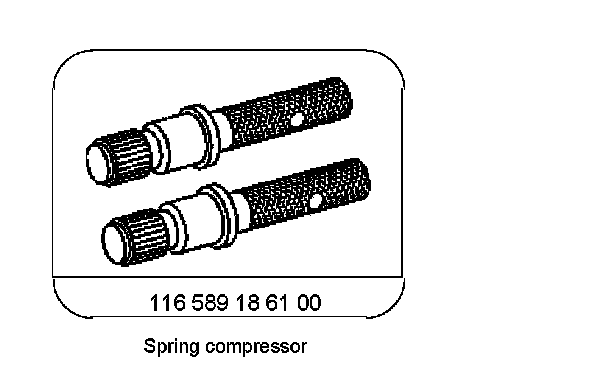

Special Tools:

Component Identification:

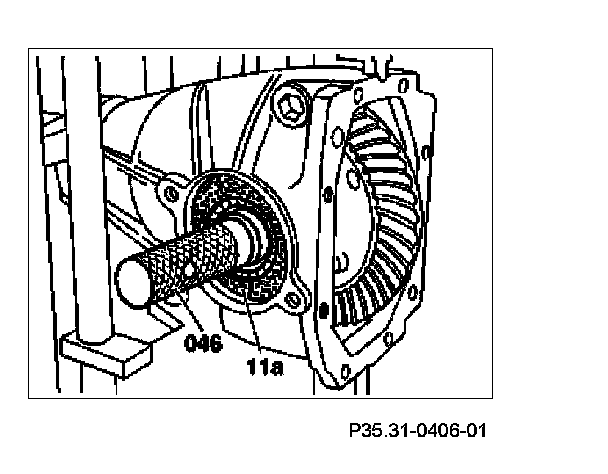

1 Push in assembly mandrel (046) for differential pinions on the left-hand side and press complete differential to the right until it touches the rear axle housing.
2 Remove left and right tapered roller bearing outer race (11a).
3 Mark tapered roller bearing outer races (11a).
