Ignition Lock Cable: Service and Repair
AR27.60-P-0122P Remove/install ignition lock control cable

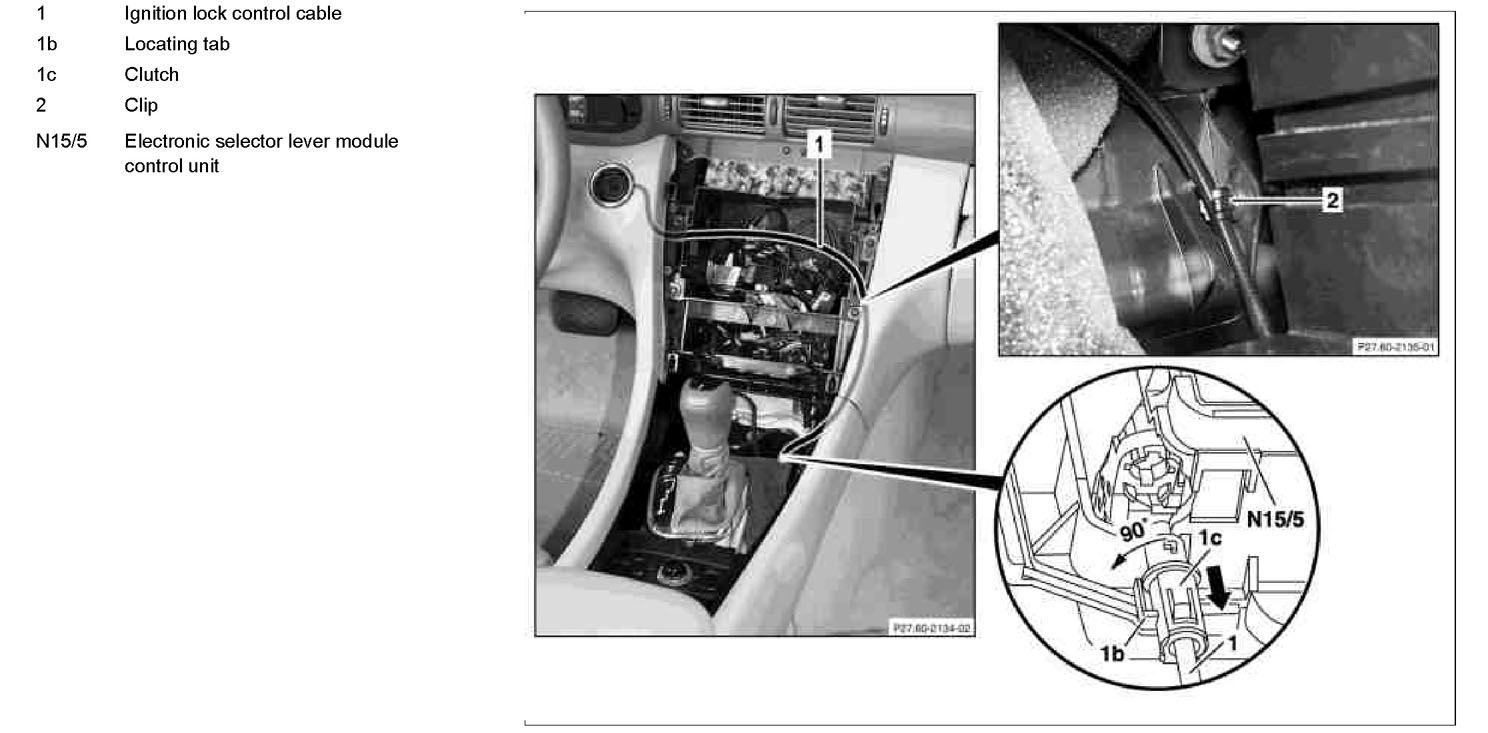

Component Identification:

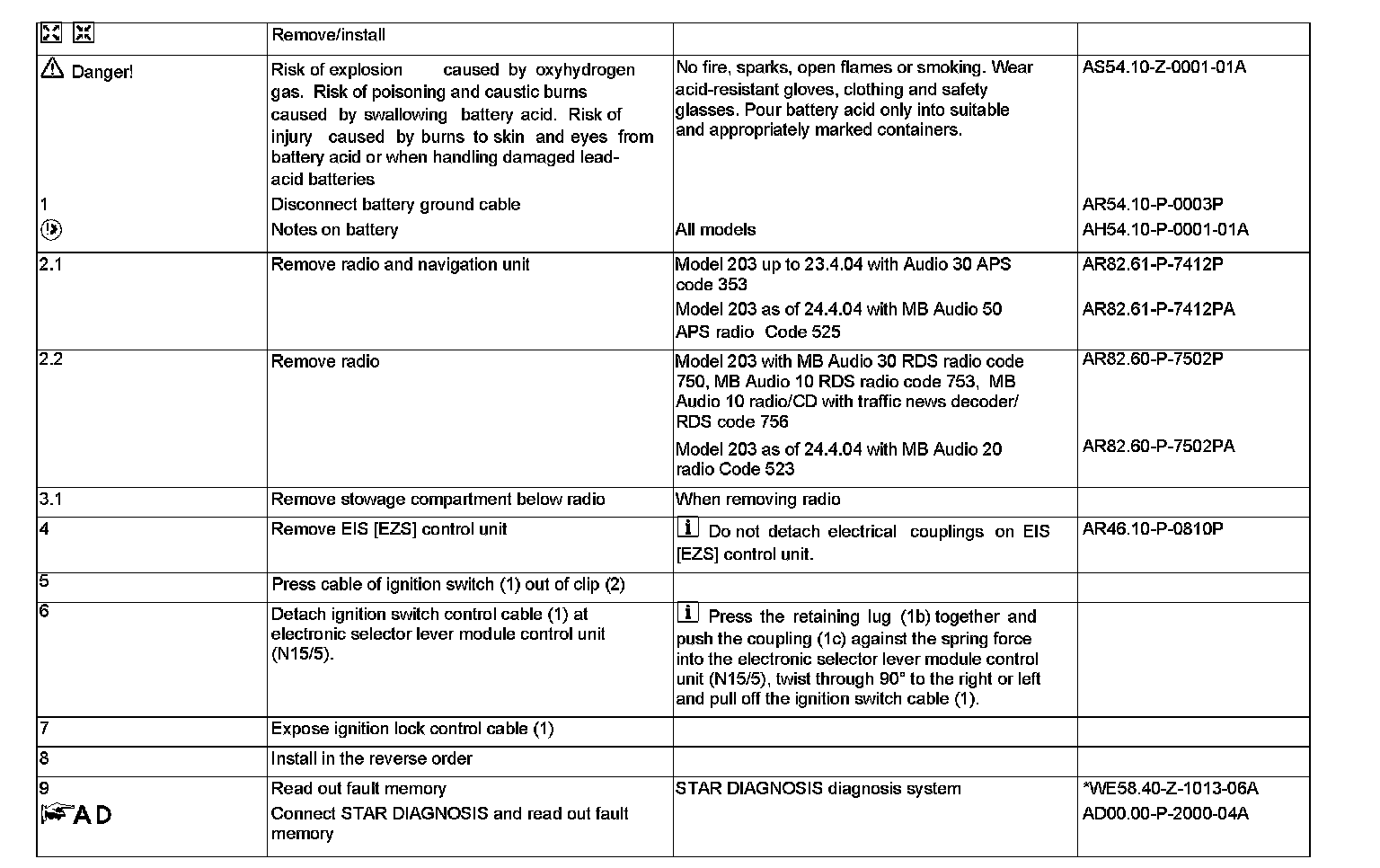

Steps 1 - 9:

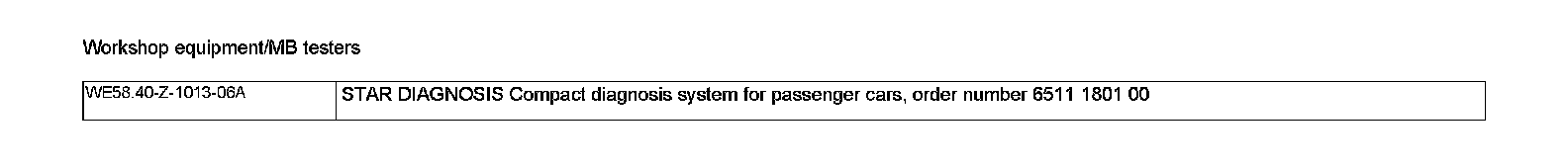

Workshop Equipment/MB Testers:
