Coolant Level Sensor: Locations

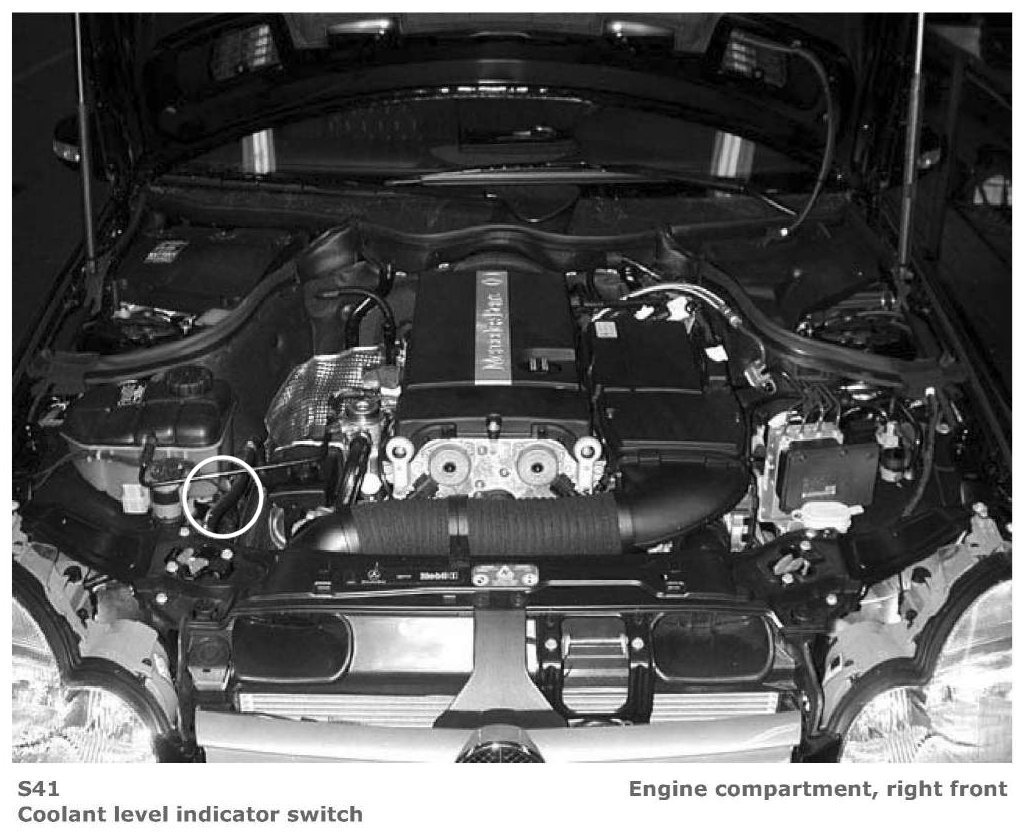

Coolant Level Indicator Switch (View 1):

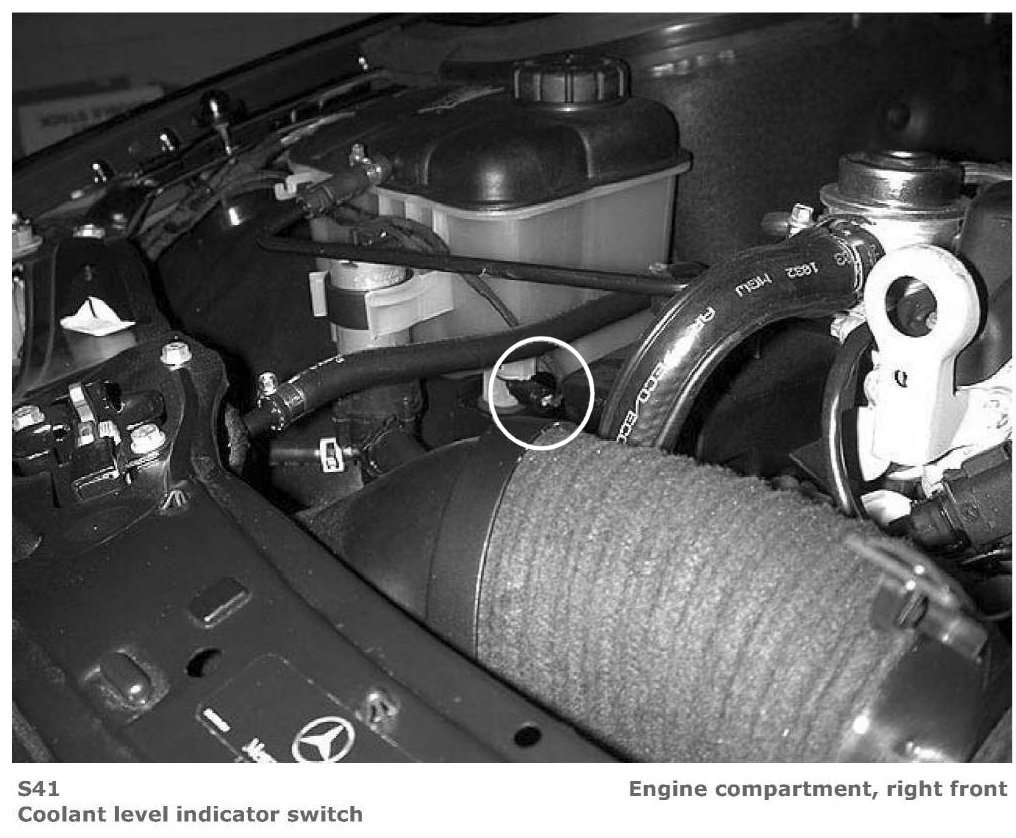

Coolant Level Indicator Switch (View 2):

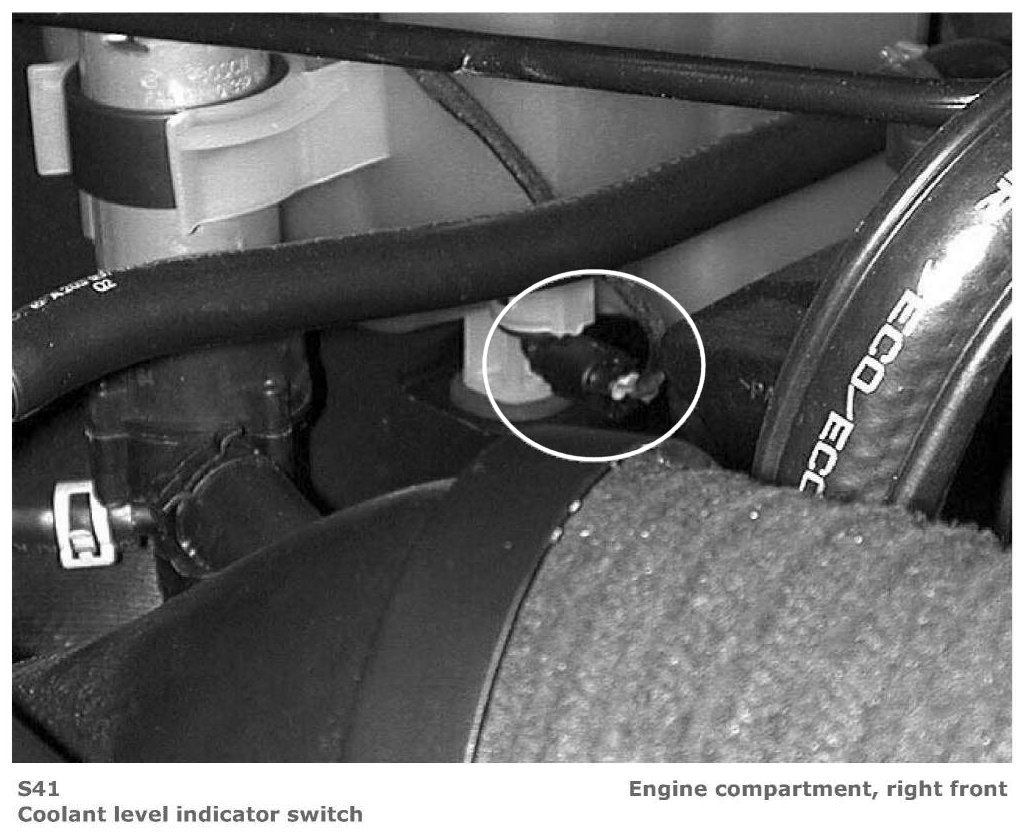

Coolant Level Indicator Switch (View 3):
