Catalytic Converter: Service and Repair
AR49.10-P-5531QB Remove/install
catalytic converter
and front
exhaust system

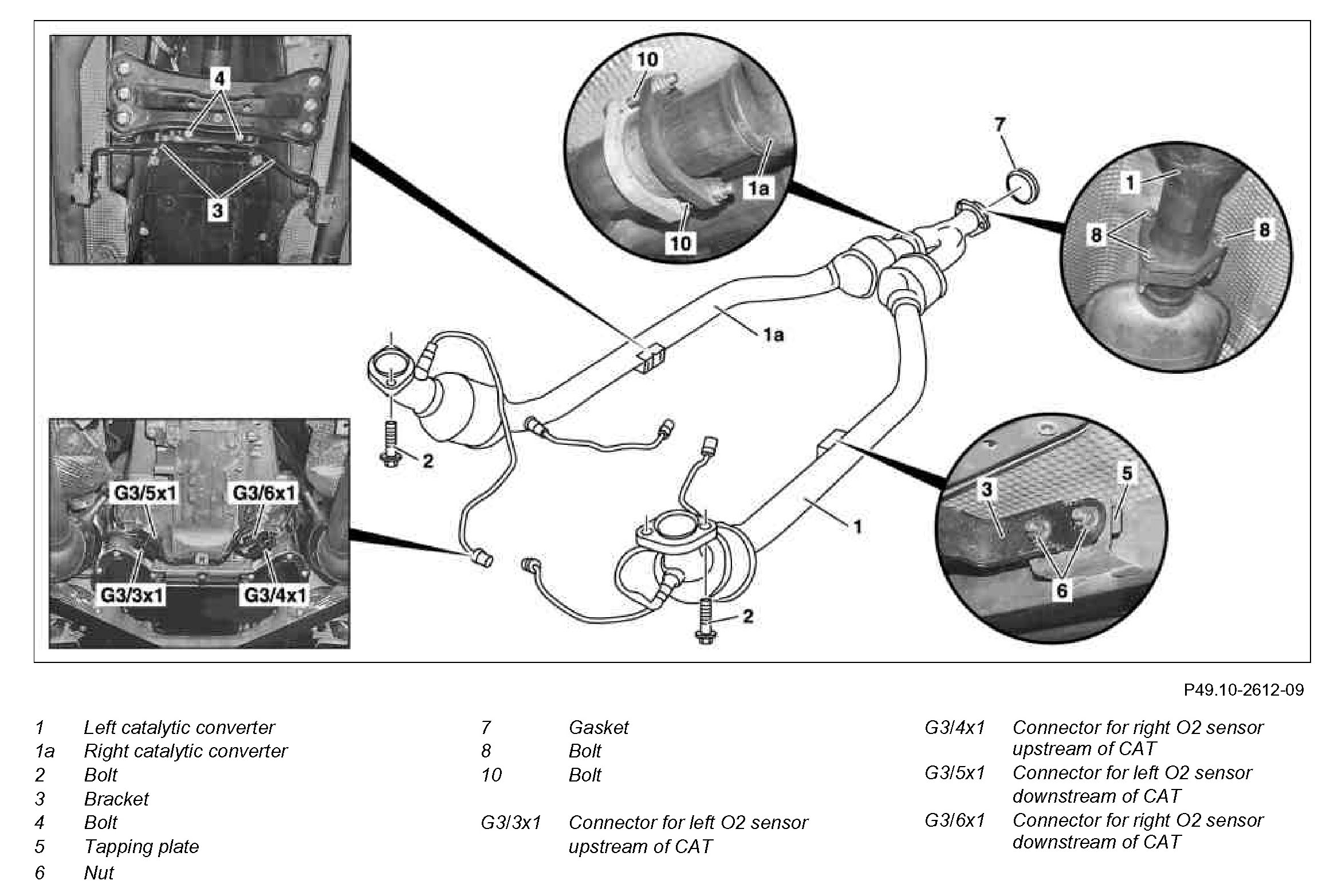

Component Identification:

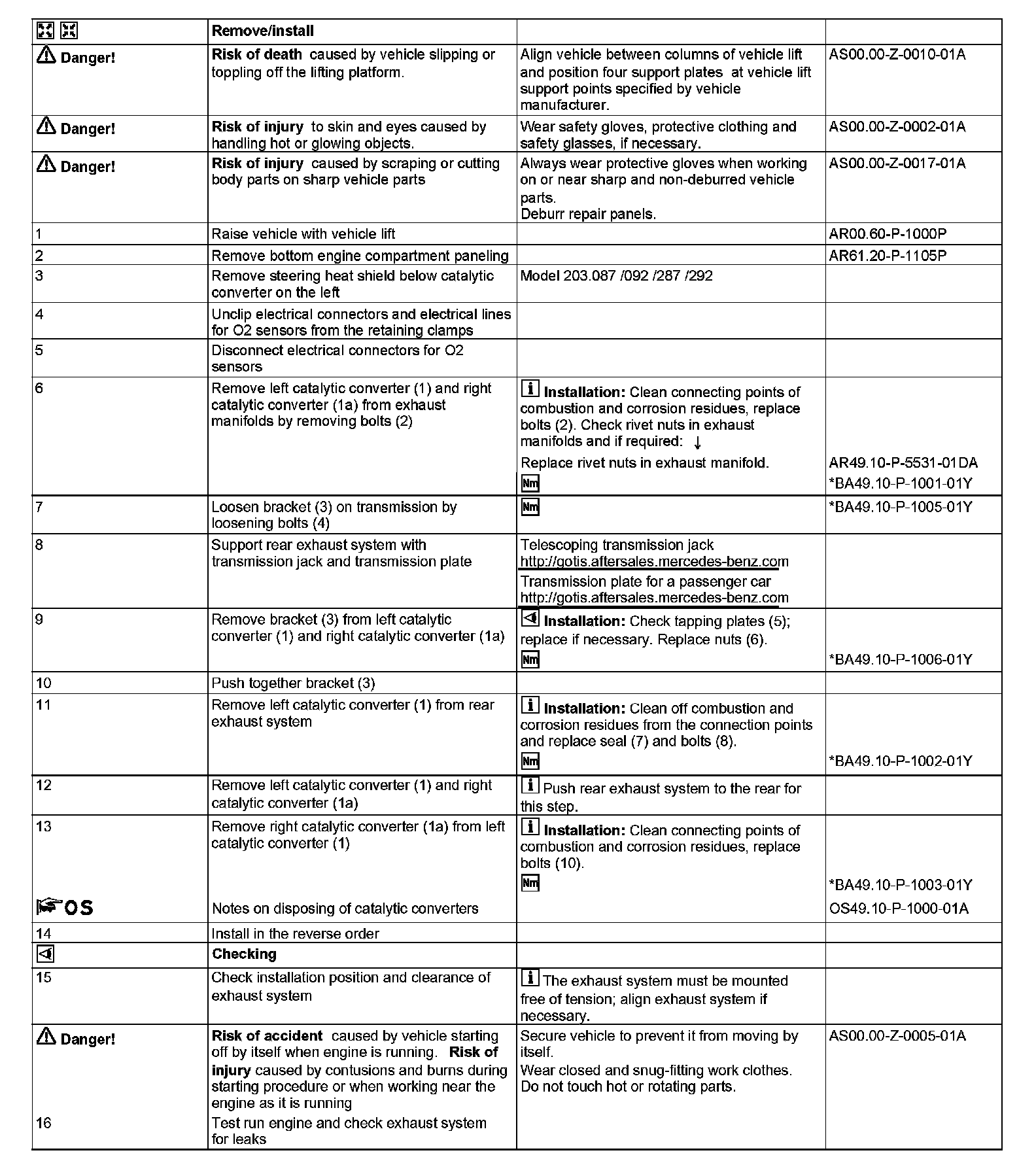

Steps 1-16:

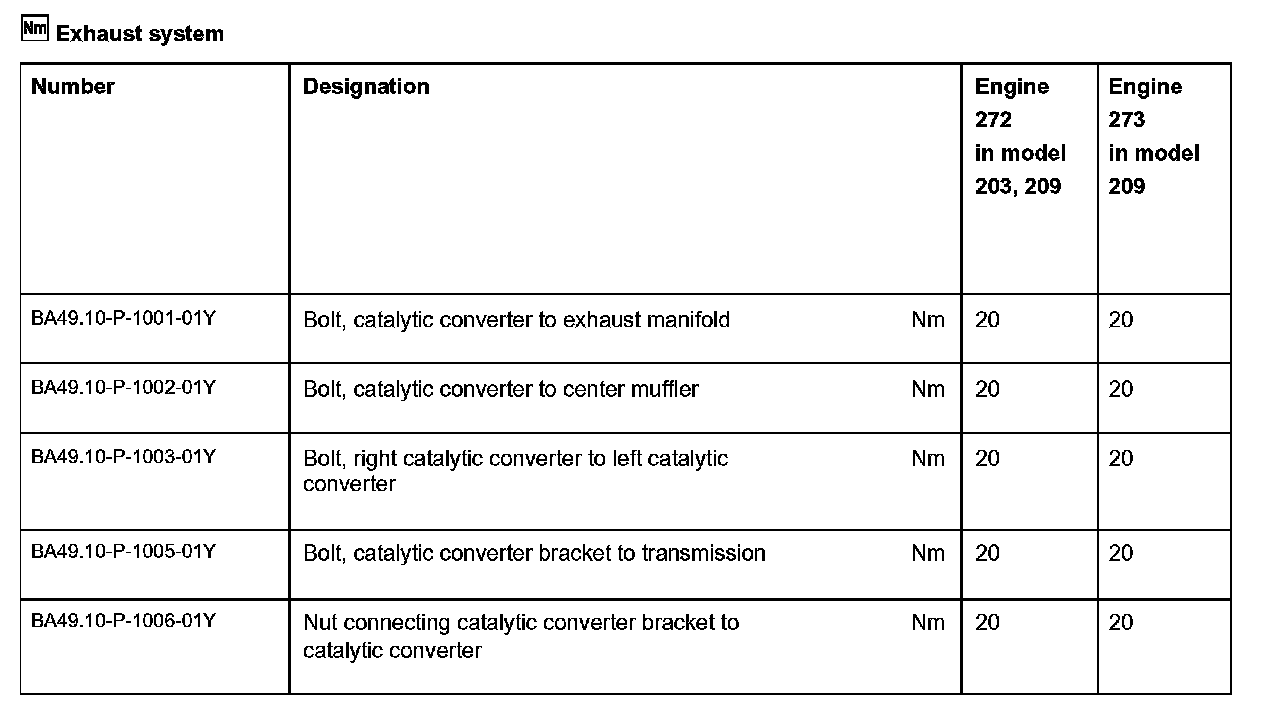

Exhaust system:
