Ground (Output Ground - Component Compartment)

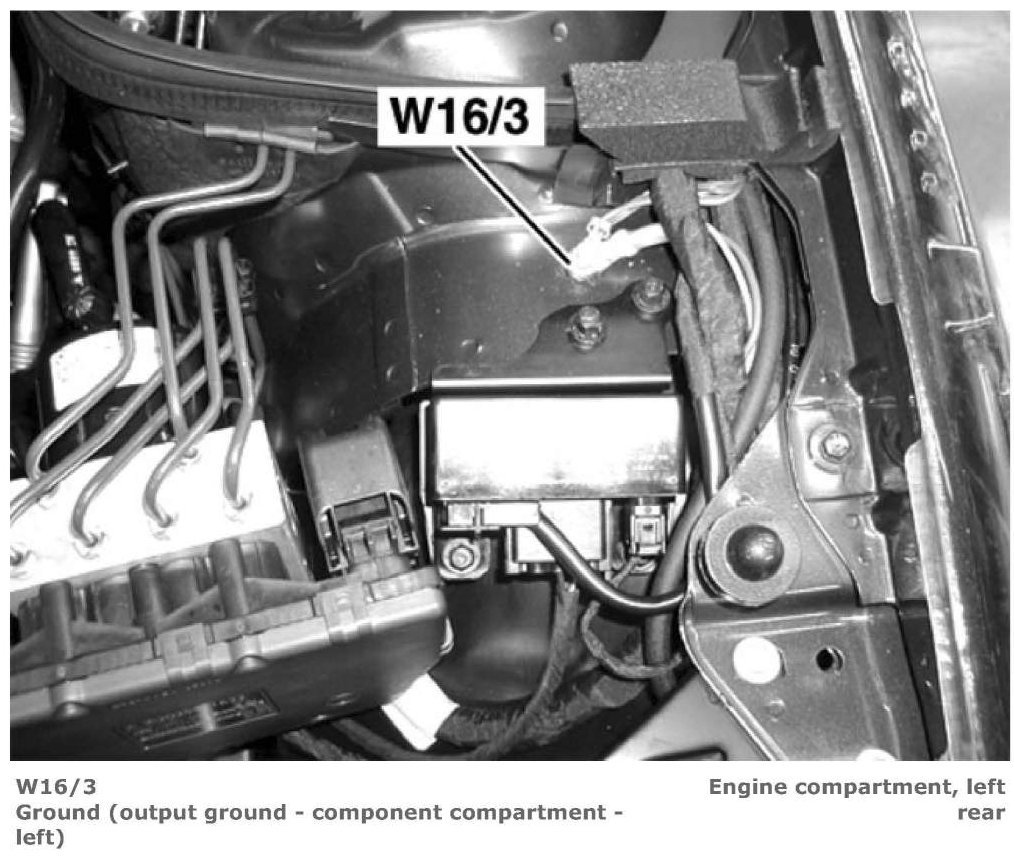

Ground (Output Ground - Component Compartment) (View 1):

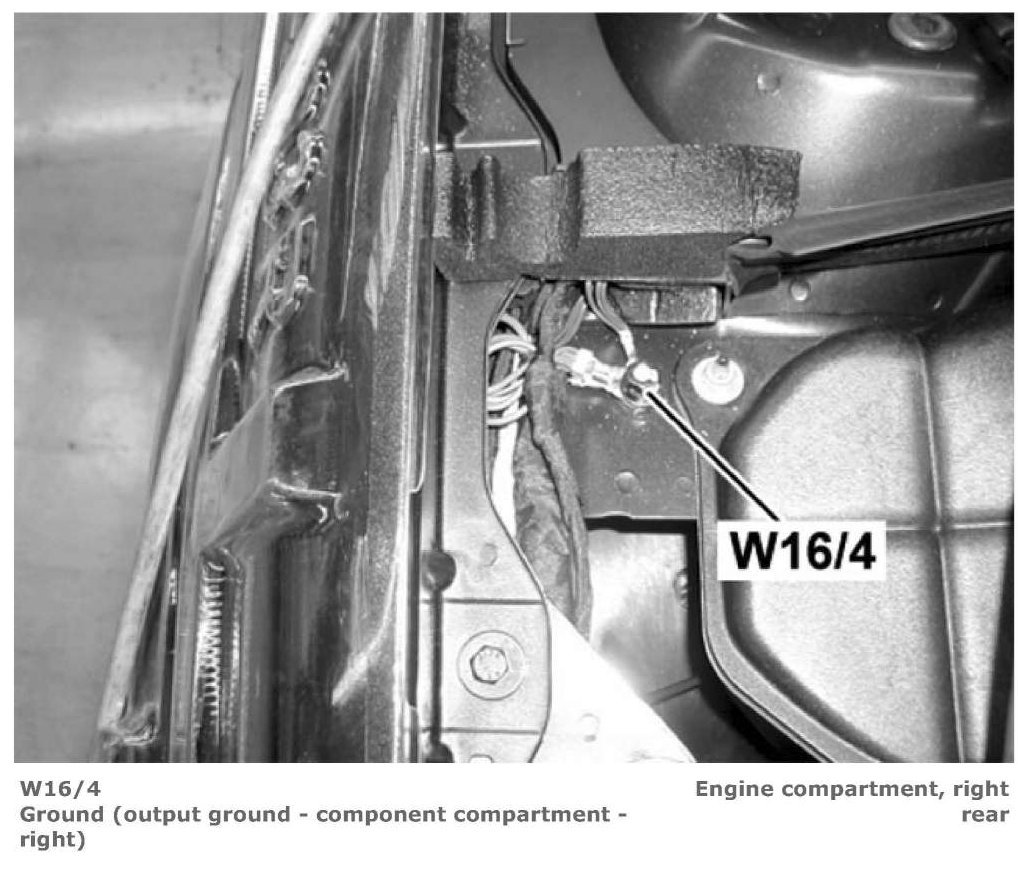

Ground (Output Ground - Component Compartment) (View 2):

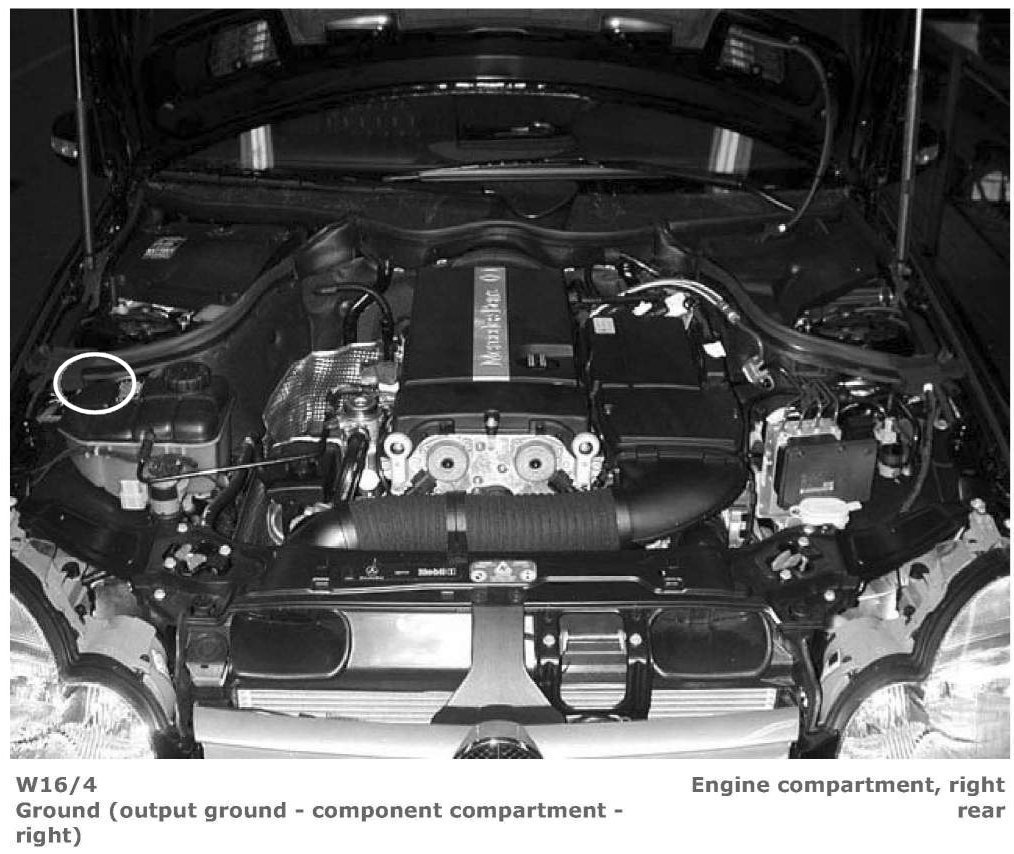

Ground (Output Ground - Component Compartment) (View 3):

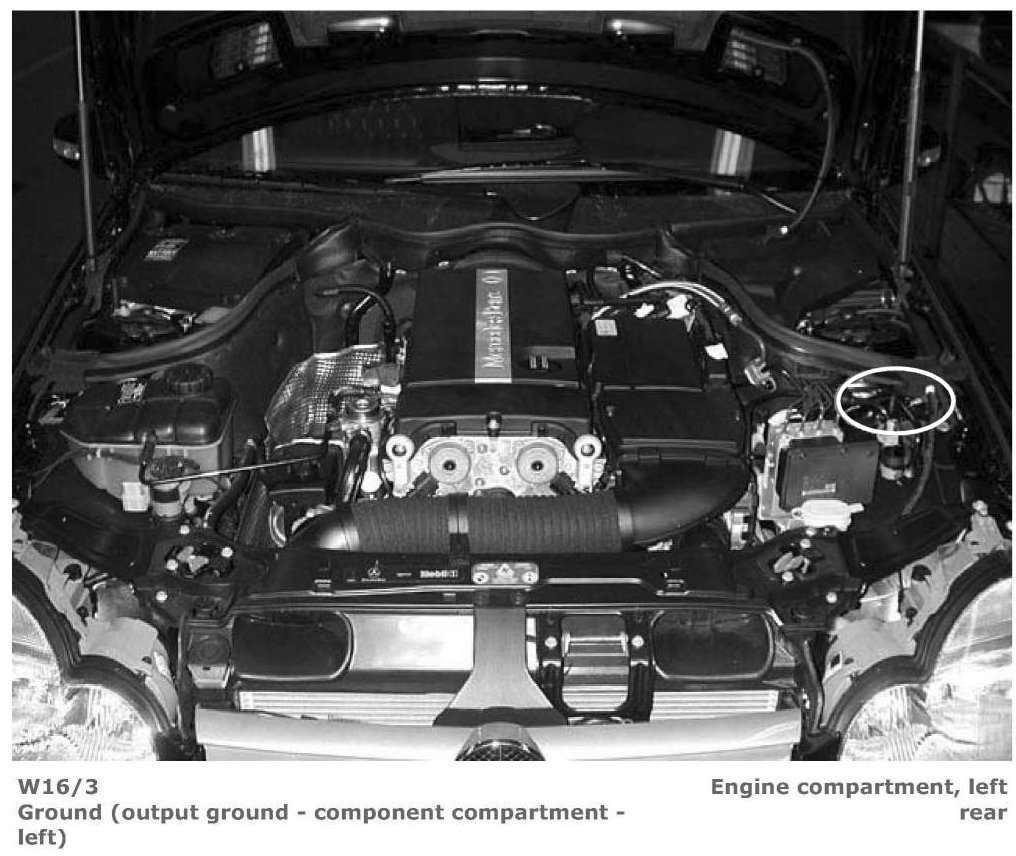

Ground (Output Ground - Component Compartment) (View 4):
