Rear Shelf: Service and Repair

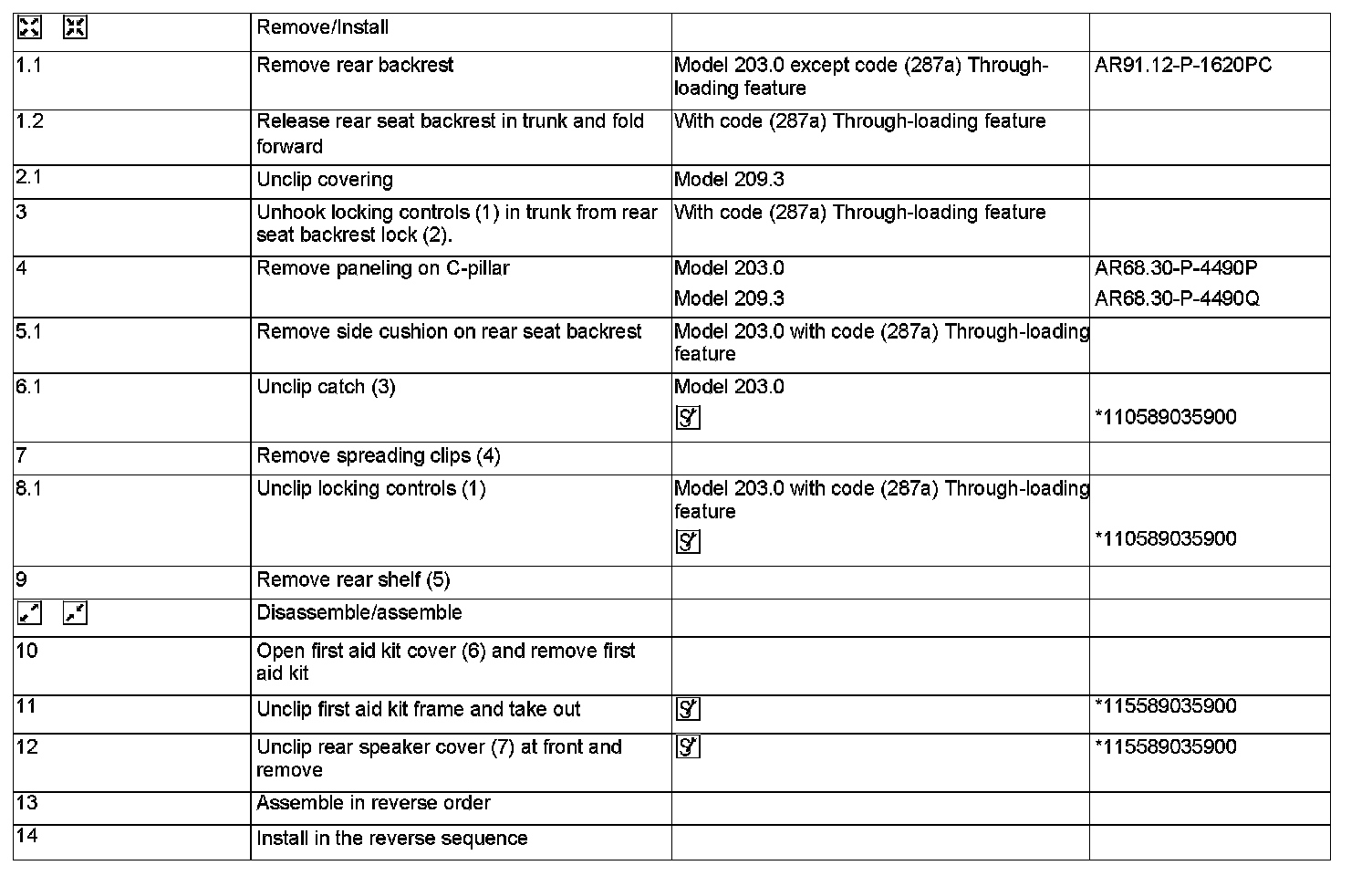

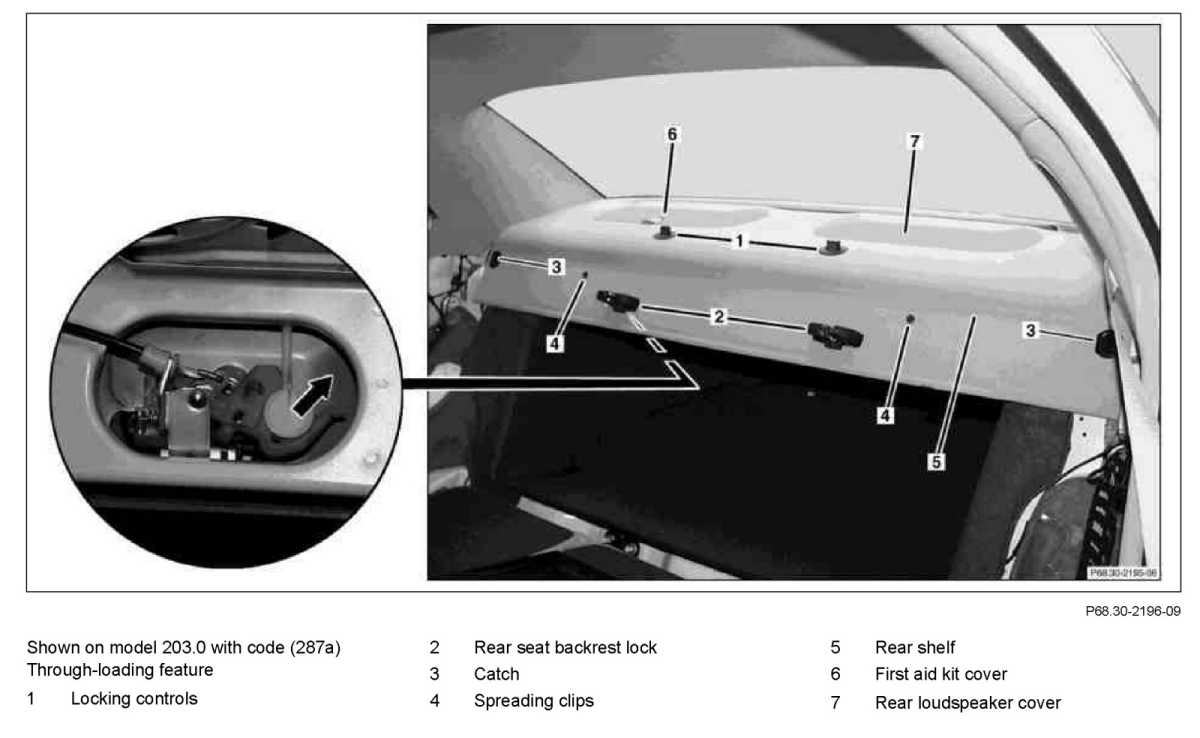

AR68.30-P-4580P Remove/Install and Disassemble Parcel Shelf
- except CODE (540a) Electric sun shade for rear window
