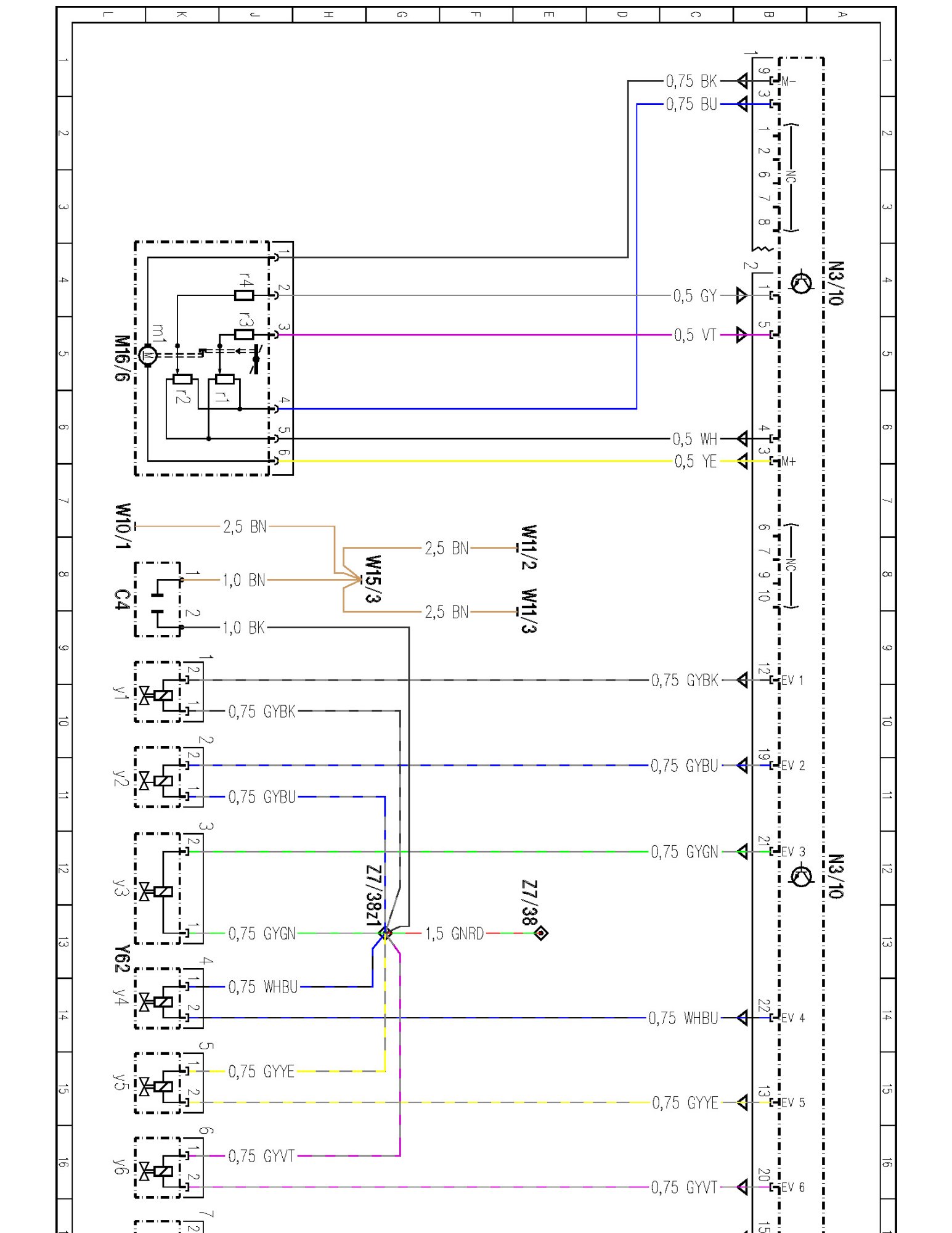

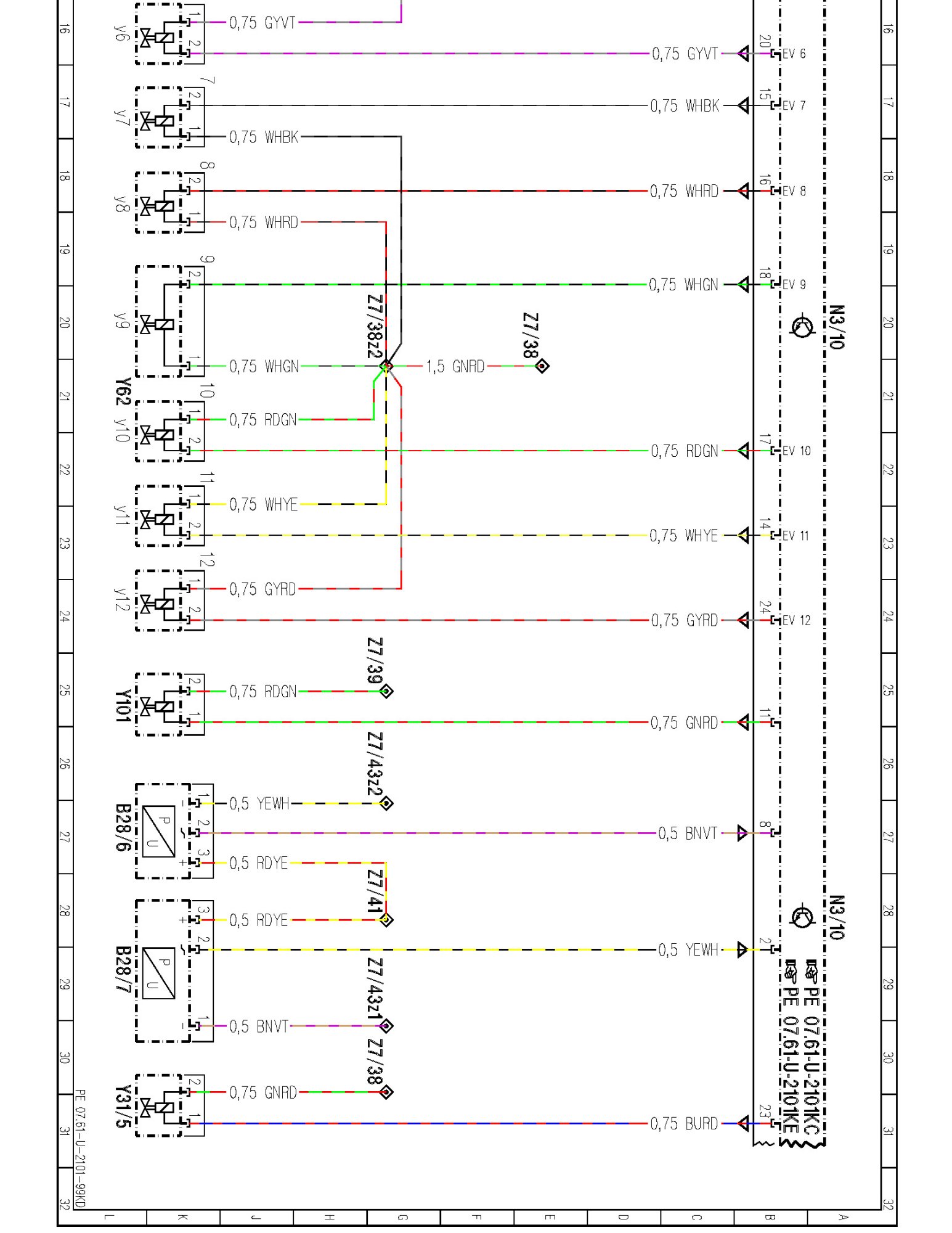

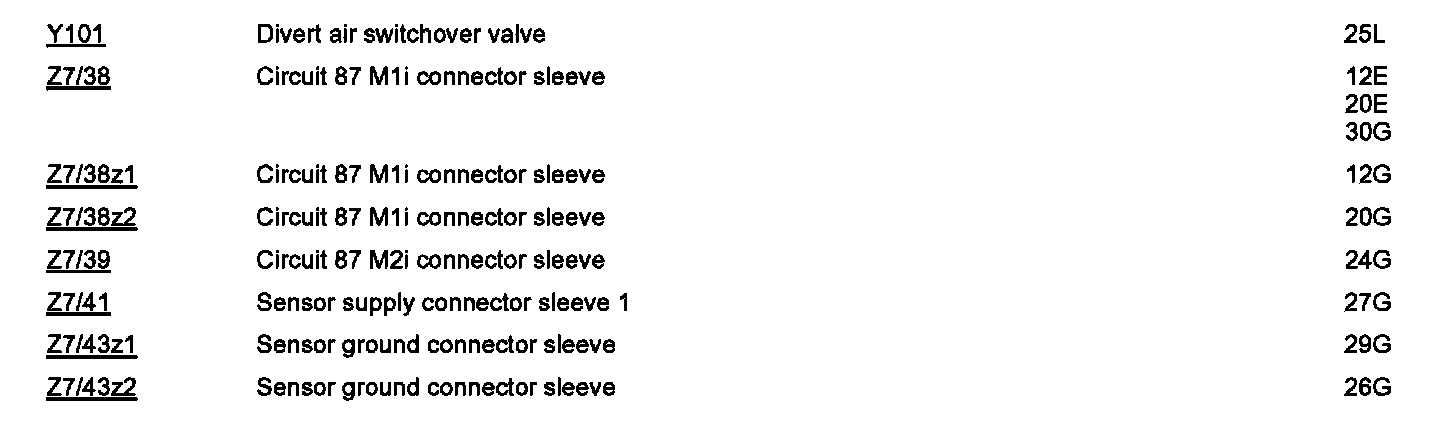

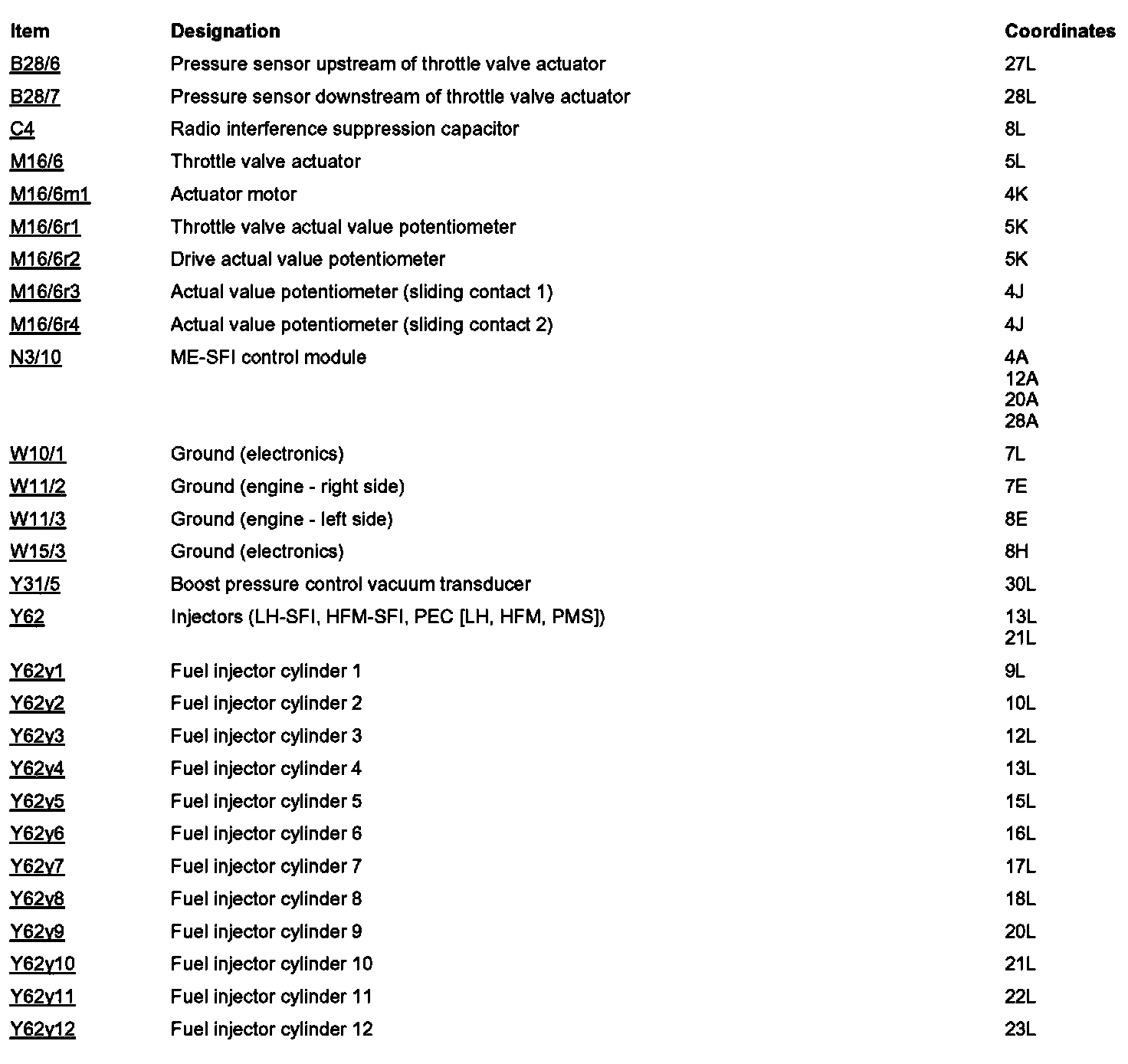

PE07.61-U-2101KD ME-SFI Fuel Injection and Ignition System, Control Module



PE07.61-U-2101KD ME-SFI Fuel Injection and Ignition System, Control Module
- 275.951 up to 02/28/06
- 275.954 from 03/01/06
- 275.981
- ME 2.7.1
- Sheet 1
