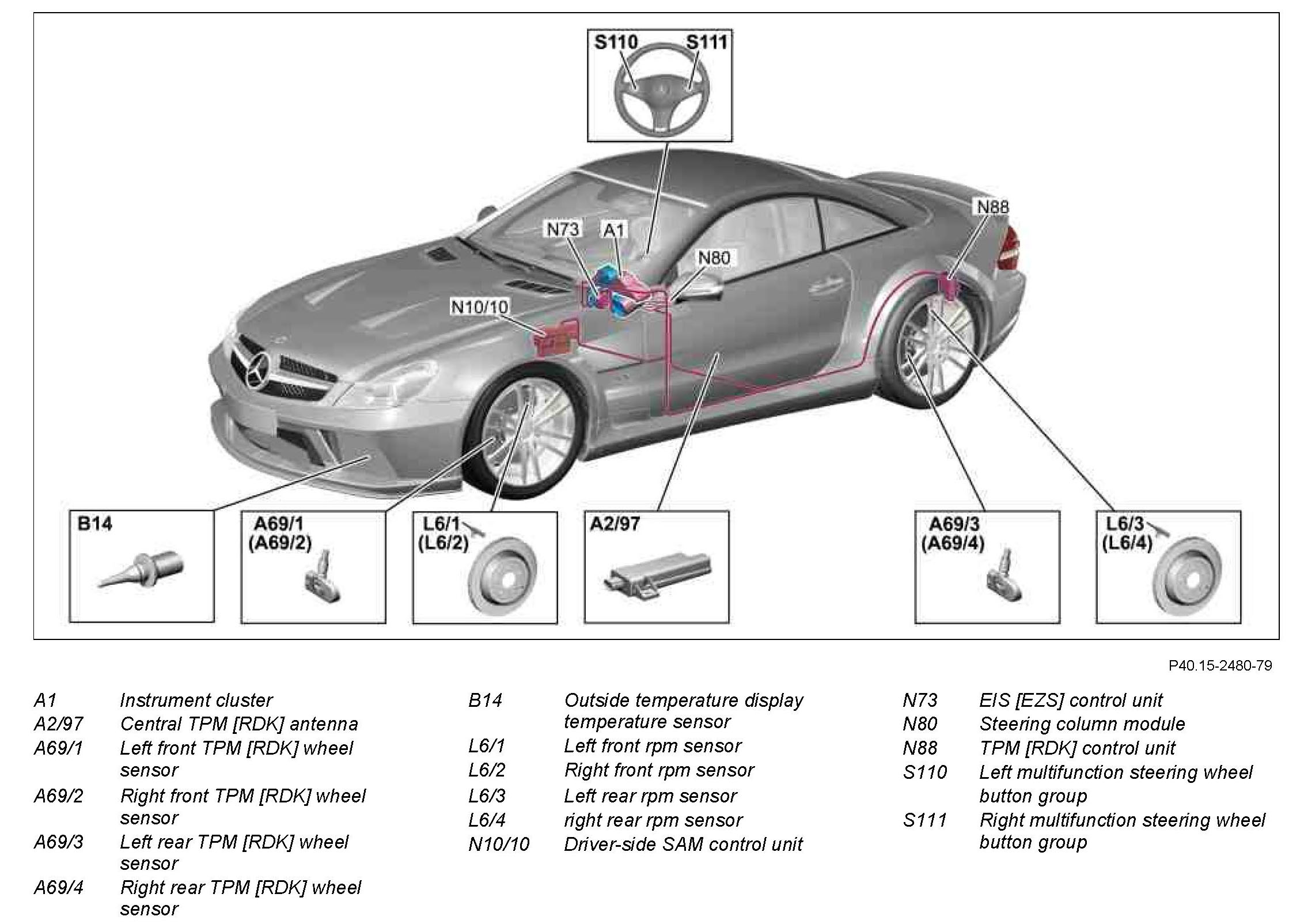

GF40.15-P-0001-06RIT Tire Pressure Monitor (TPM (RDK)) Location of Components



GF40.15-P-0001-06RIT Tire pressure monitor (TPM [RDK]) location of components
- with CODE (470) Tire pressure monitor (base)
- with CODE (P99) Special model "AMG Black Series"
- Fa. Siemens


Component Identification:
