SL 65 AMG (230.479) V12-6.0L Turbo (275.981)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roof and Associated Components
>>
Convertible Top
>>
Convertible Top Weatherstrip
>>
Service and Repair
>>
Removal and Replacement
>>

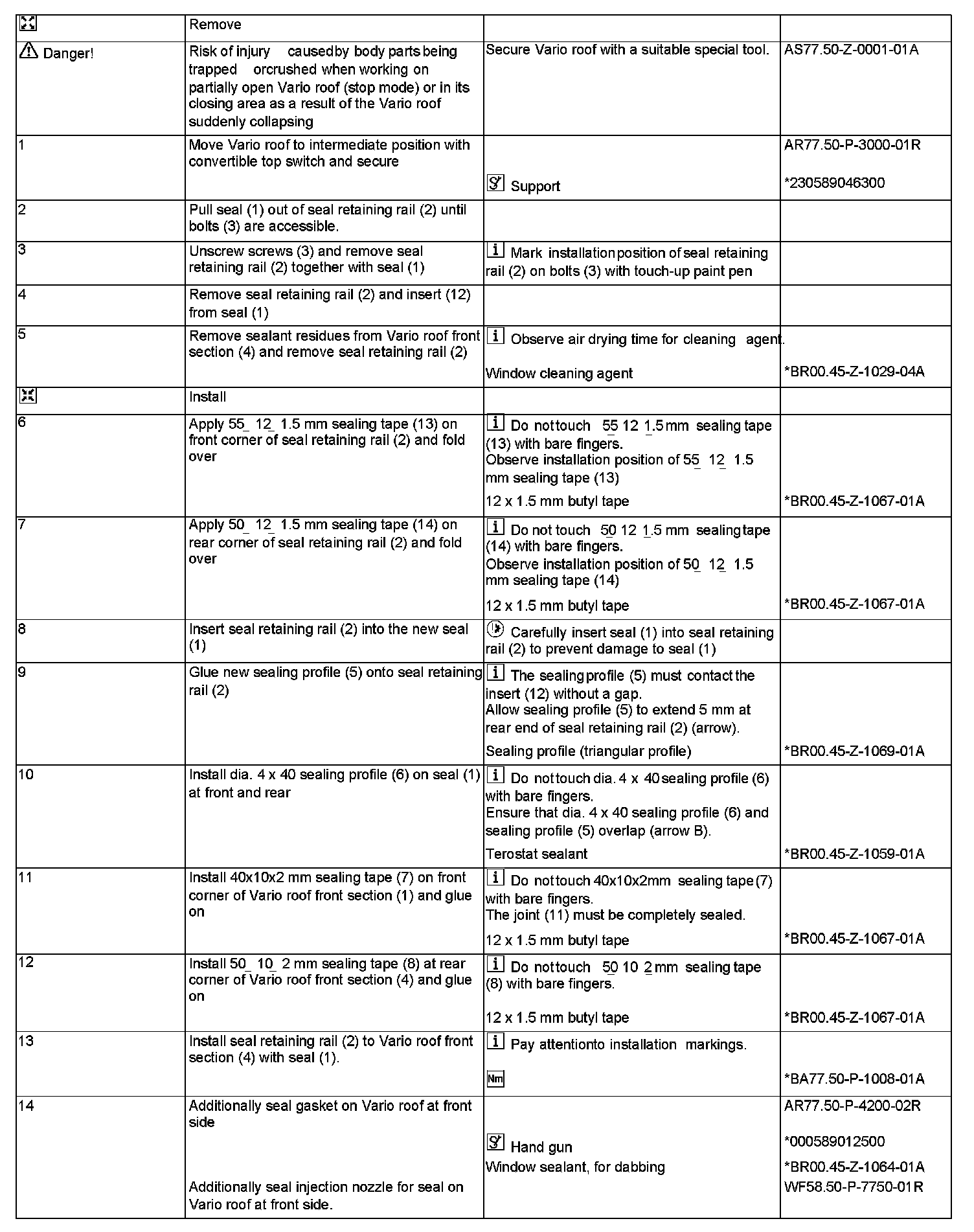

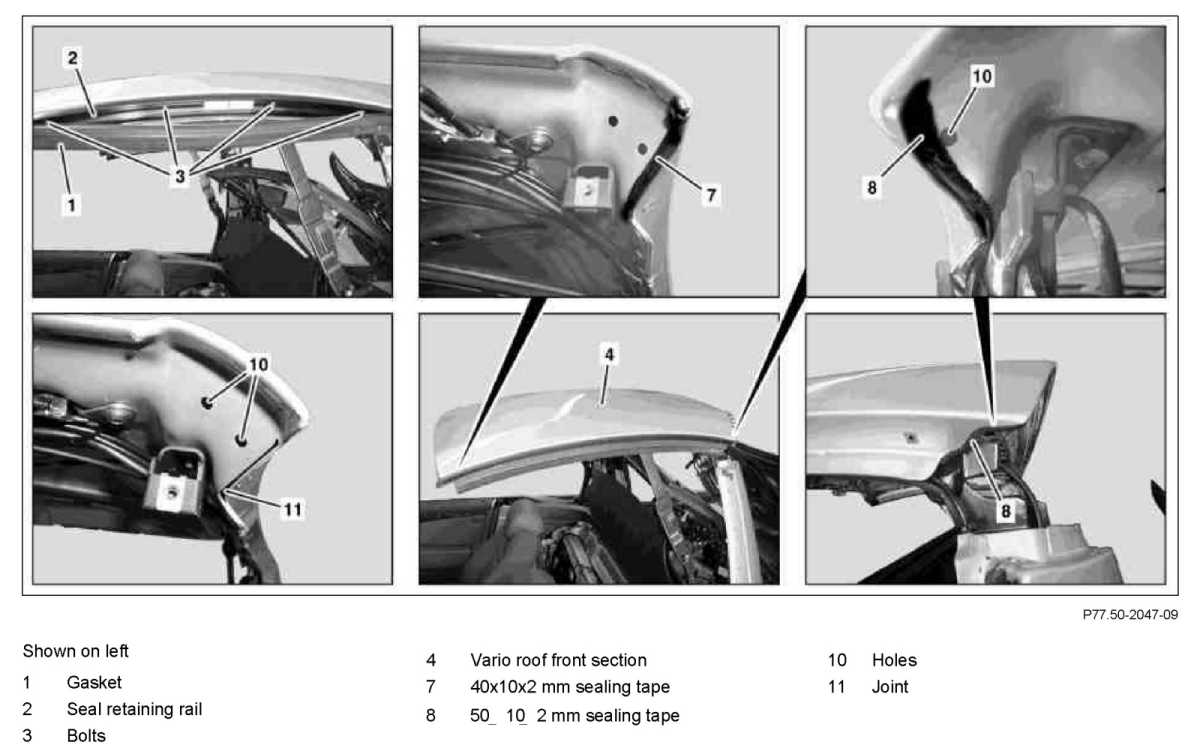

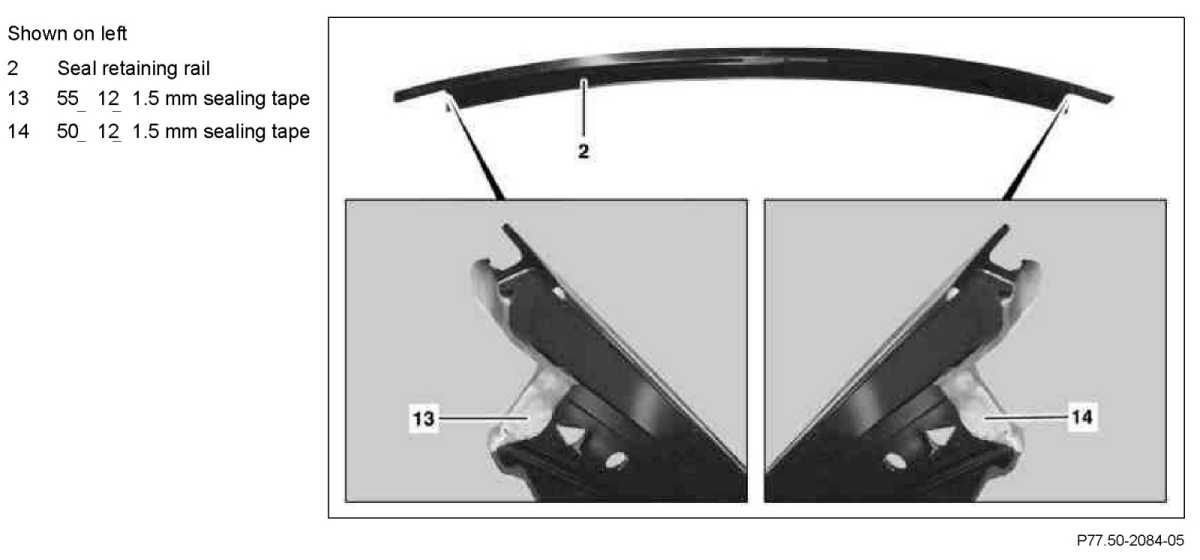

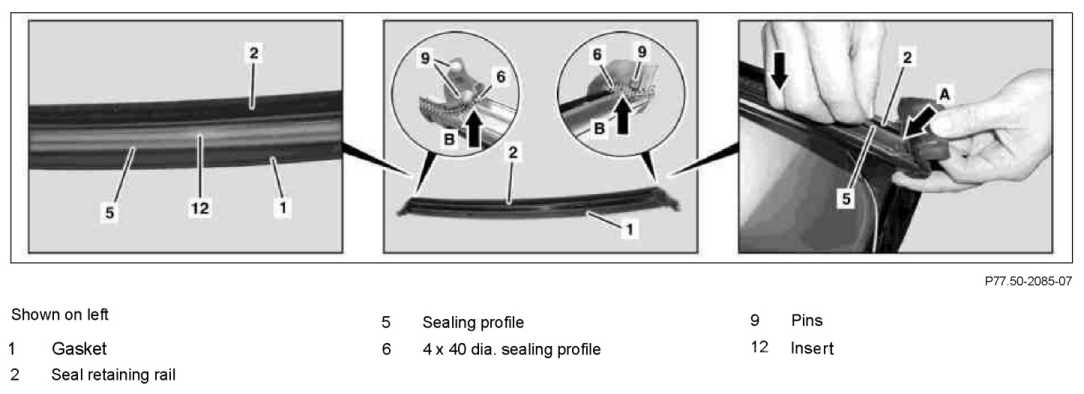

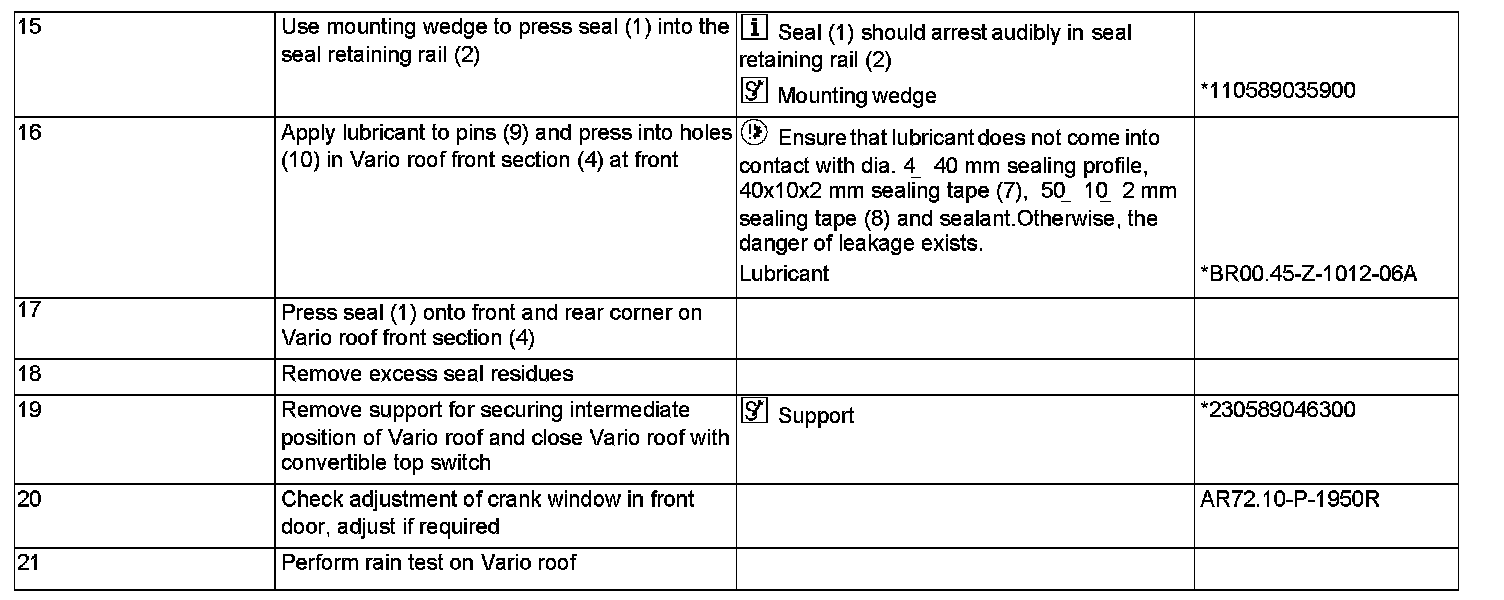

AR77.50-P-4200R Remove/Install Seal At Front of Vario Roof on Side
AR77.50-P-4200R Remove/Install Seal At Front of Vario Roof on Side
AR77.50-P-4200R Remove/Install Seal At Front of Vario Roof on Side

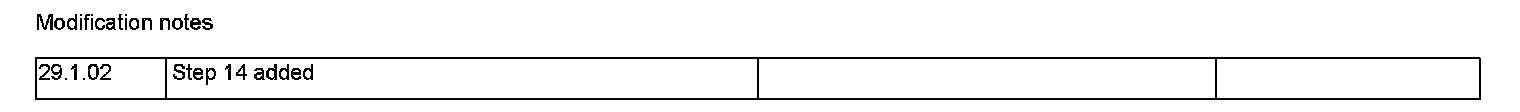

Modification Notes:
Part 1:
Part 2:

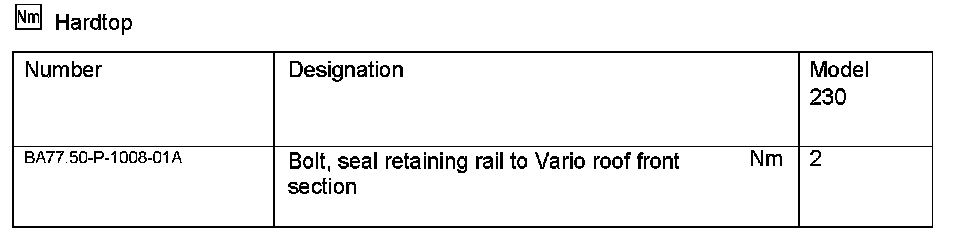

Hardtop:
