SL 55 AMG (230.474) V8-5.5L SC (113.992)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Sensors and Switches - Transmission and Drivetrain
>>
Sensors and Switches - A/T
>>
Transmission Speed Sensor
>>
Locations
>>
Output Speed Sensor (VGS)
Output Speed Sensor (VGS)
Output Speed Sensor (VGS)

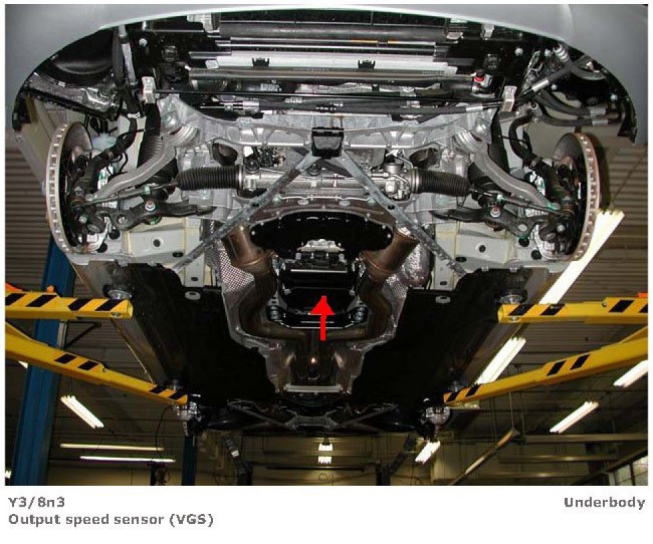

Output Speed Sensor (VGS) (View 1):

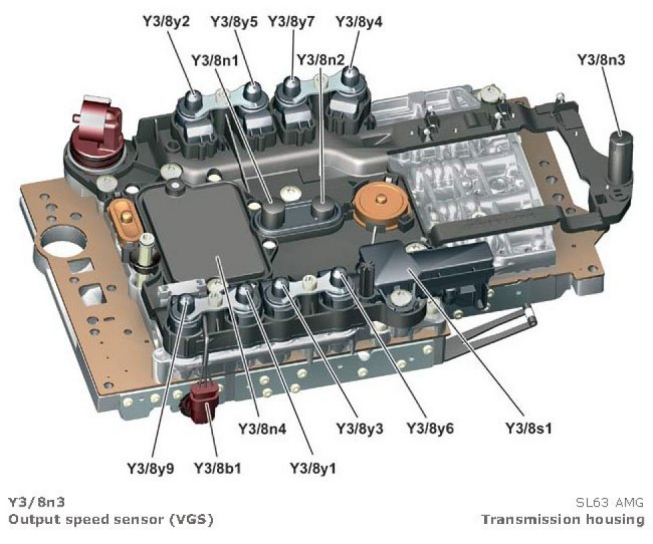

Output Speed Sensor (VGS) (View 2):

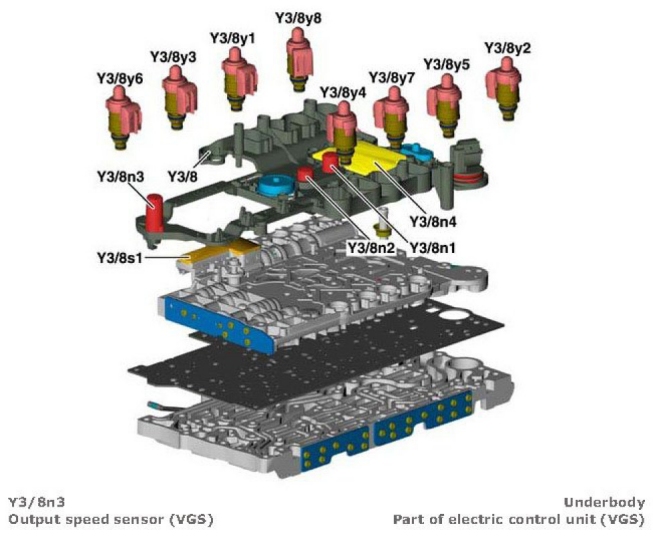

Output Speed Sensor (VGS) (View 3):
