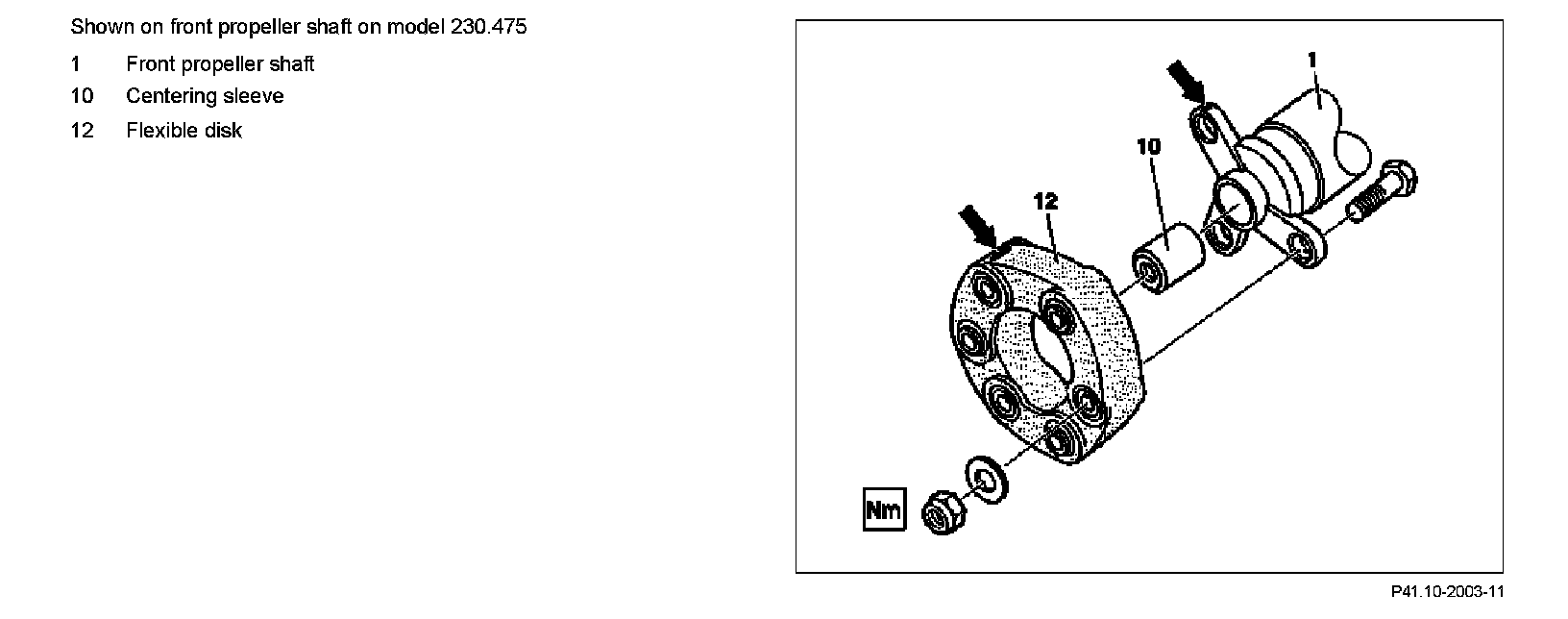

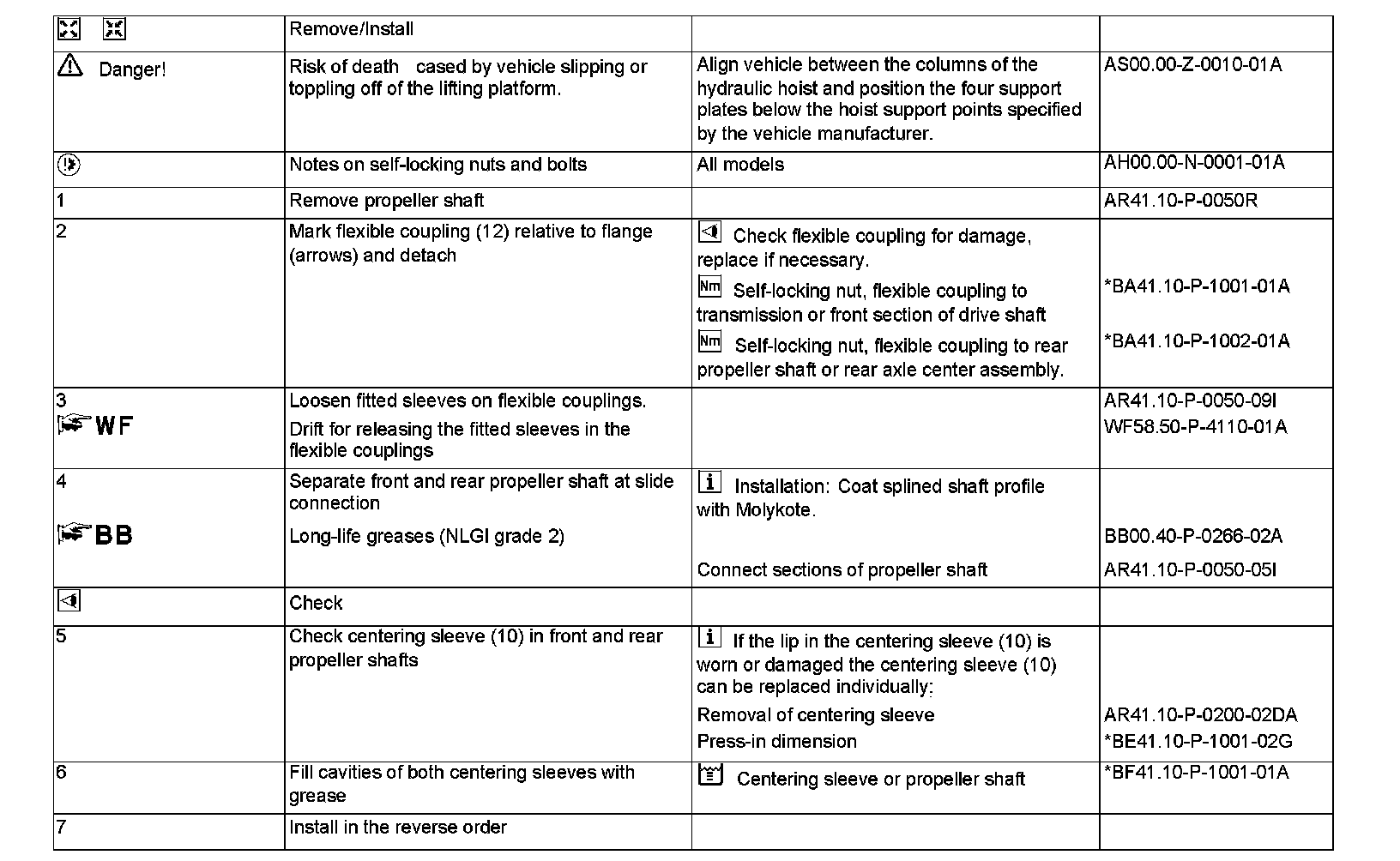

AR41.10-P-0200R Replacing Centering Sleeve
AR41.10-P-0200R Replacing Centering Sleeve
AR41.10-P-0200R Replacing Centering Sleeve

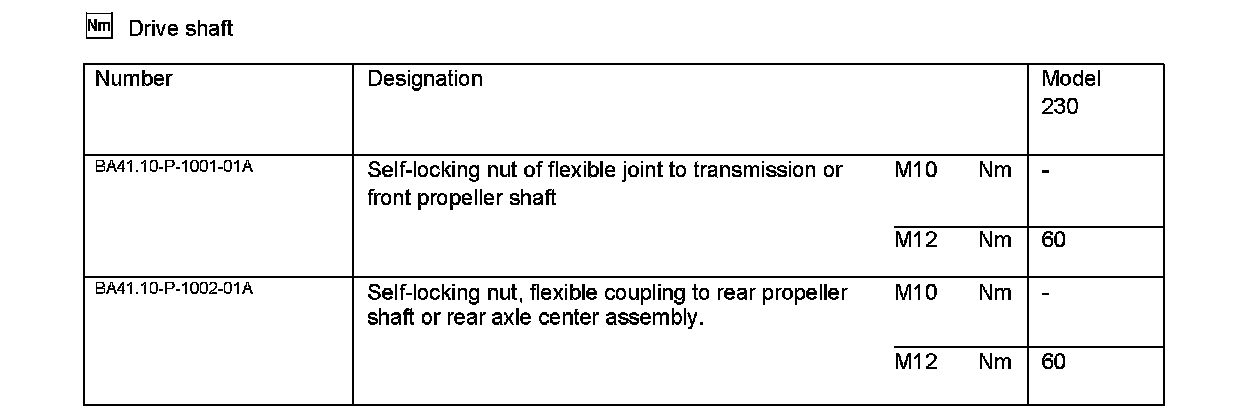

Test values for propeller shaft centering sleeve:
