AR35.30-P-0620RM Remove/Install Rear Axle Shaft



AR35.30-P-0620RM Remove/install rear axle shaft
- with rear axle shafts screwed-on

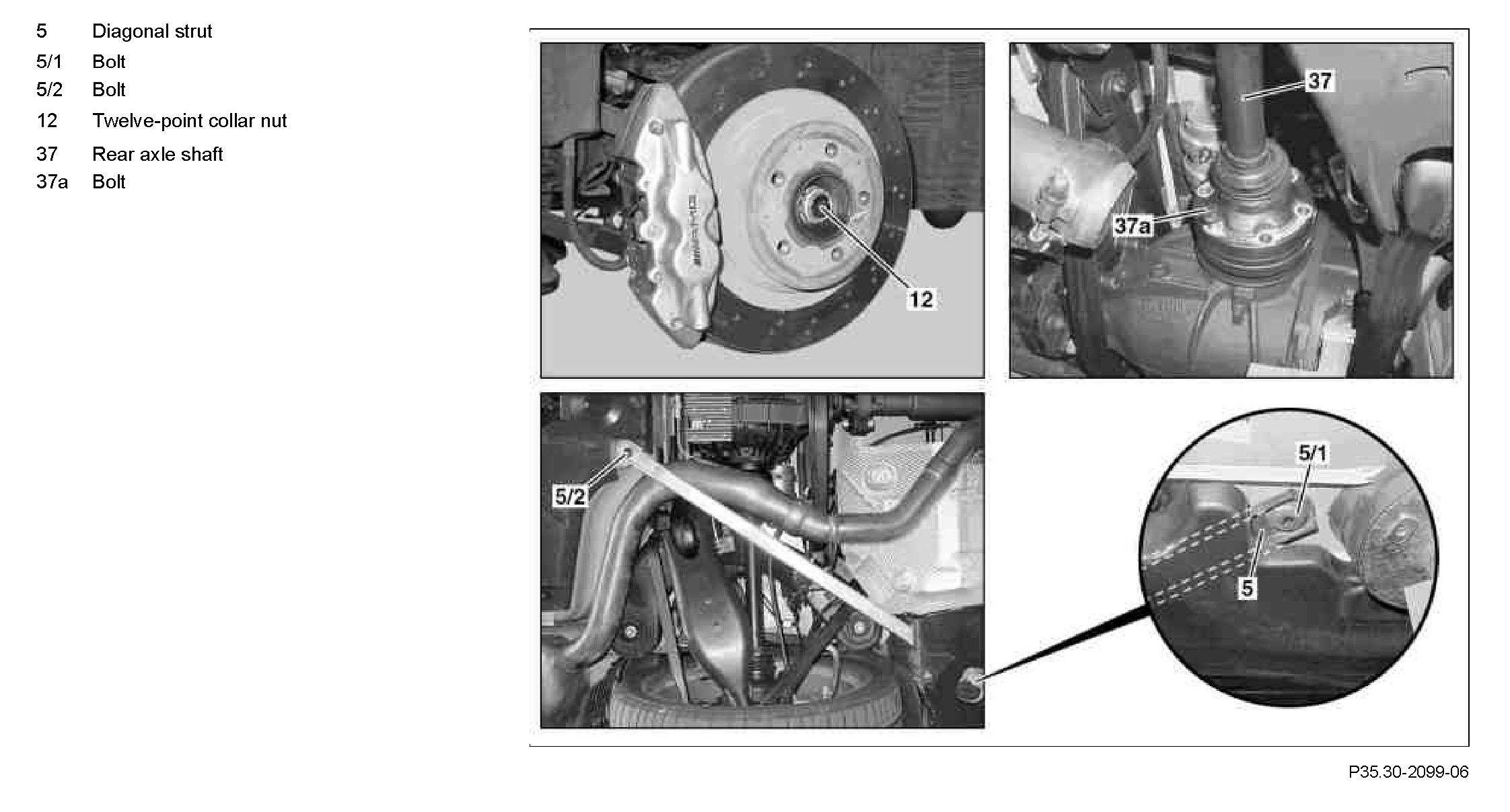

Component Identification:




Steps 1 - 6:

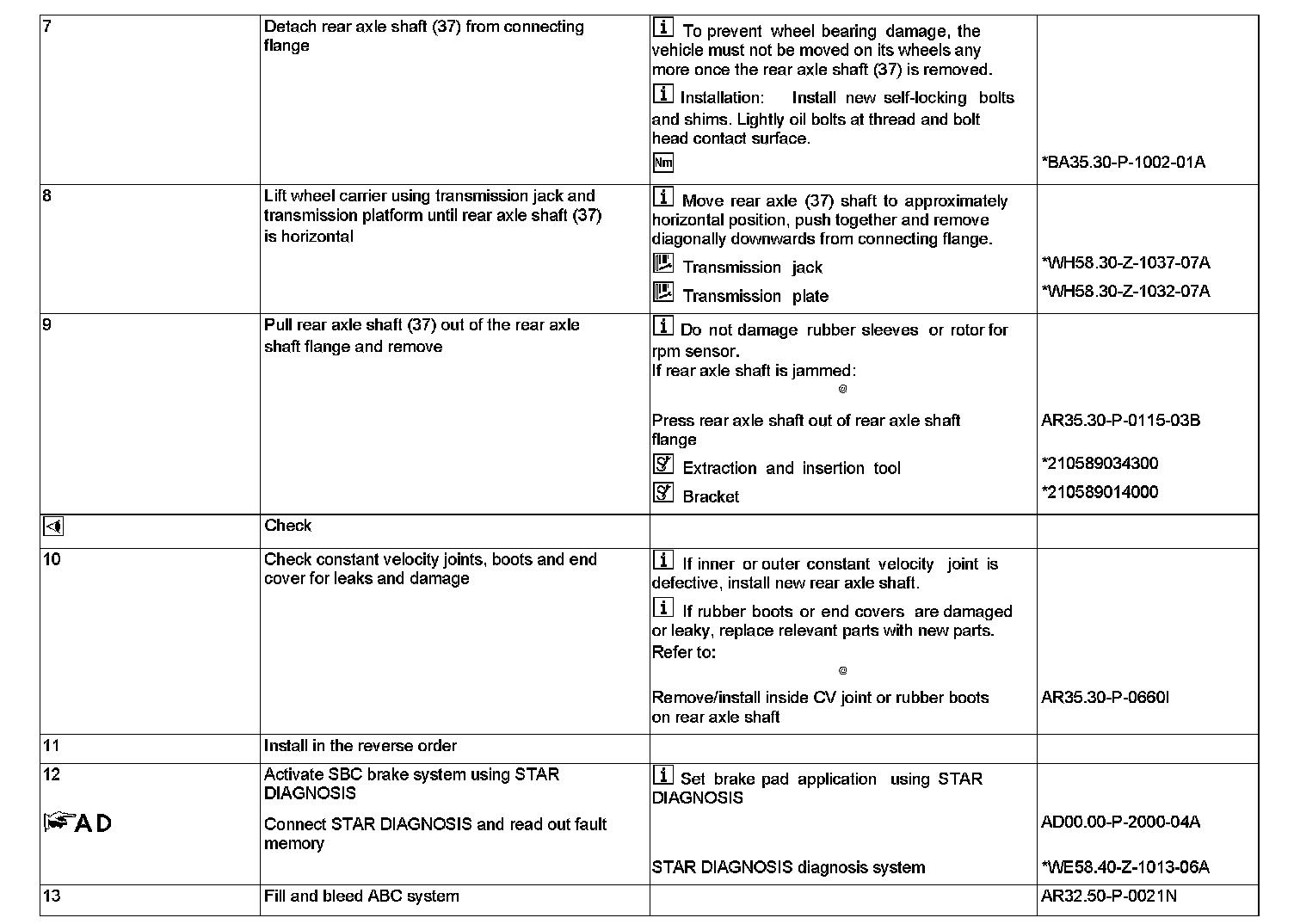

Steps 7 - 13:




Rear Axle Shaft:

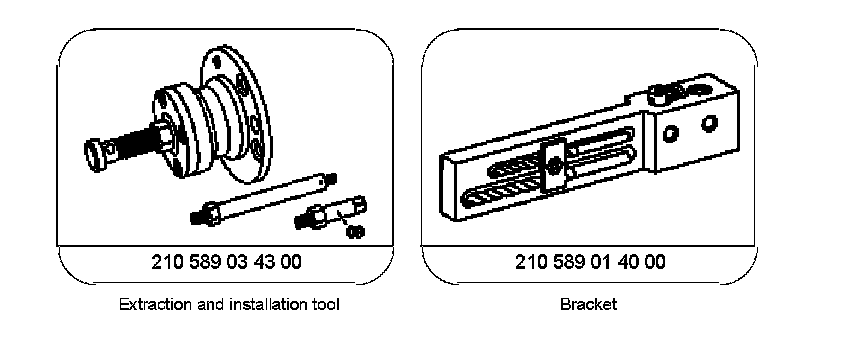

Special Tools:

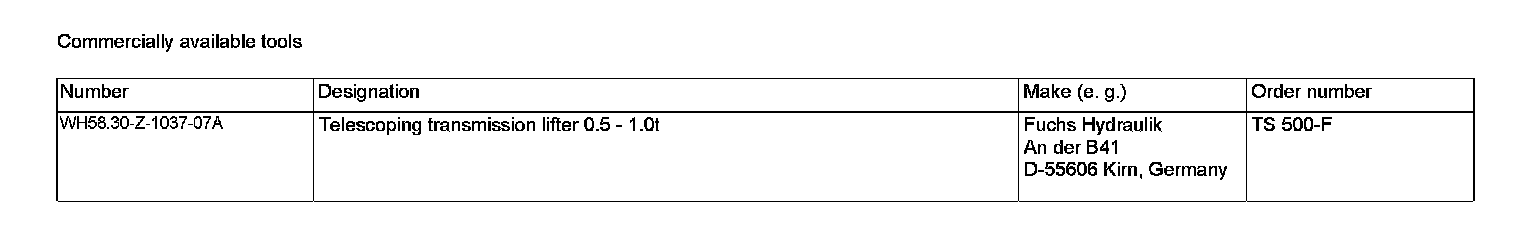

Commercially Available Tools:

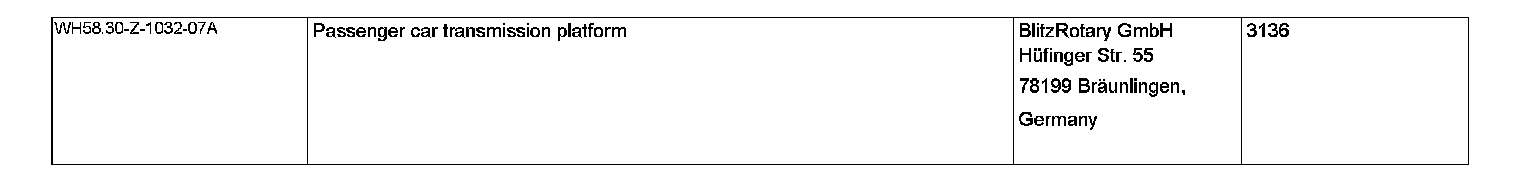

Commercially Available Tools:

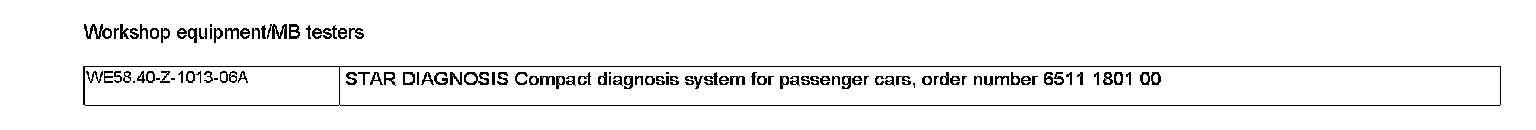

Workshop Equipment/MB Testers:
