SL 55 AMG (230.474) V8-5.5L SC (113.992)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Body and Frame
>>
Convertible Top Deck Lid Position Switch / Sensor
>>
Service and Repair
>>

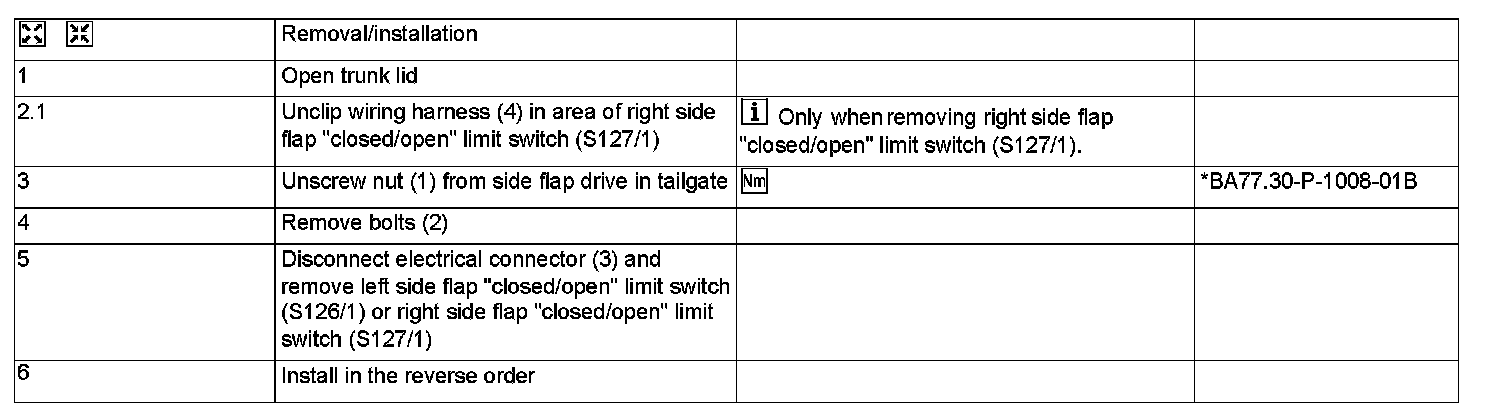

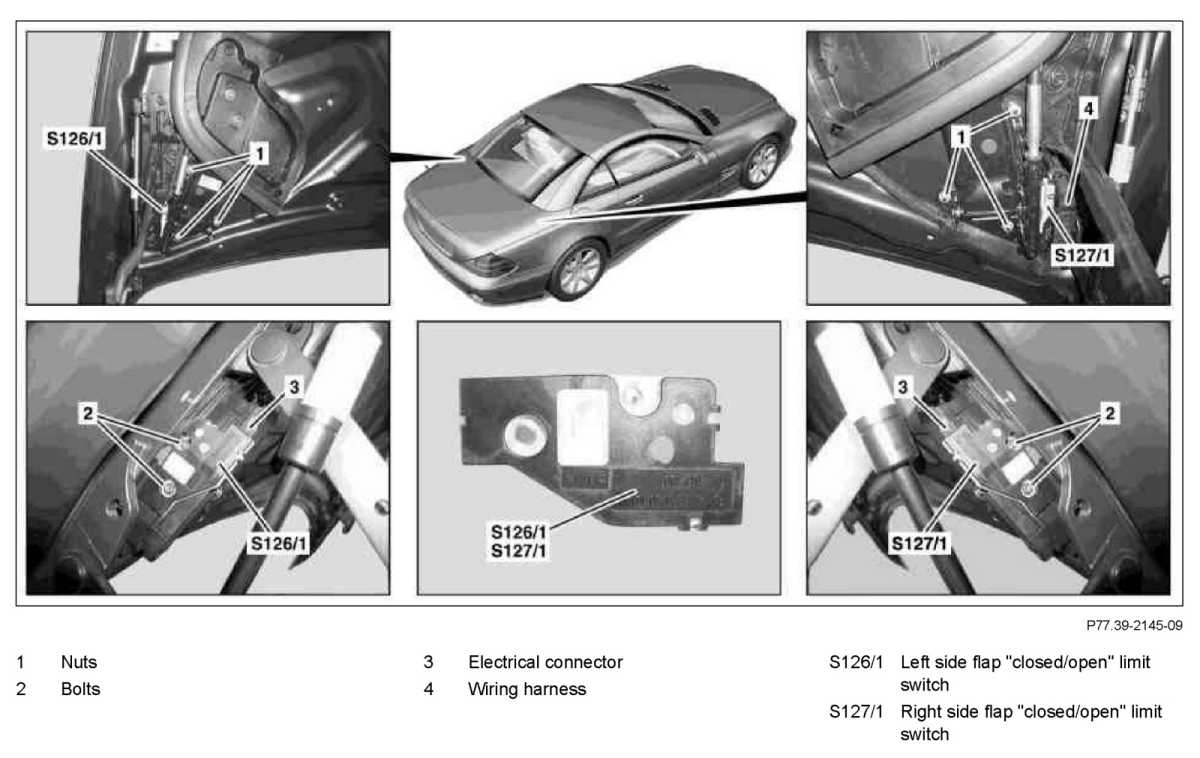

AR77.39-P-3697R Remove/Install Side Flap "Closed" Limit Switch
AR77.39-P-3697R Remove/Install Side Flap "Closed" Limit Switch
AR77.39-P-3697R Remove/Install Side Flap "Closed" Limit Switch
Convertible Top:
