Home >> Mercedes Benz >> 2005 >> SL 55 AMG (230.474) V8-5.5L SC (113.992) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Seat Belt Tensioner >> Description and Operation >> GF91.40-P-4000R Front Emergency Tensioning Retractor, Location/Task/Design/Function

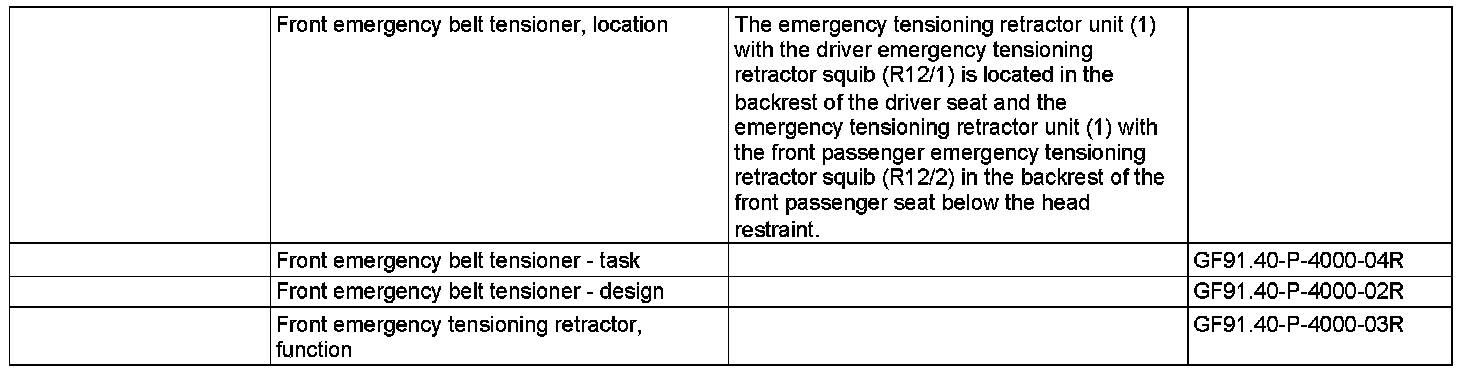

GF91.40-P-4000R Front Emergency Tensioning Retractor, Location/Task/Design/Function



GF91.40-P-4000R Front Emergency Tensioning Retractor, Location/Task/Design/Function

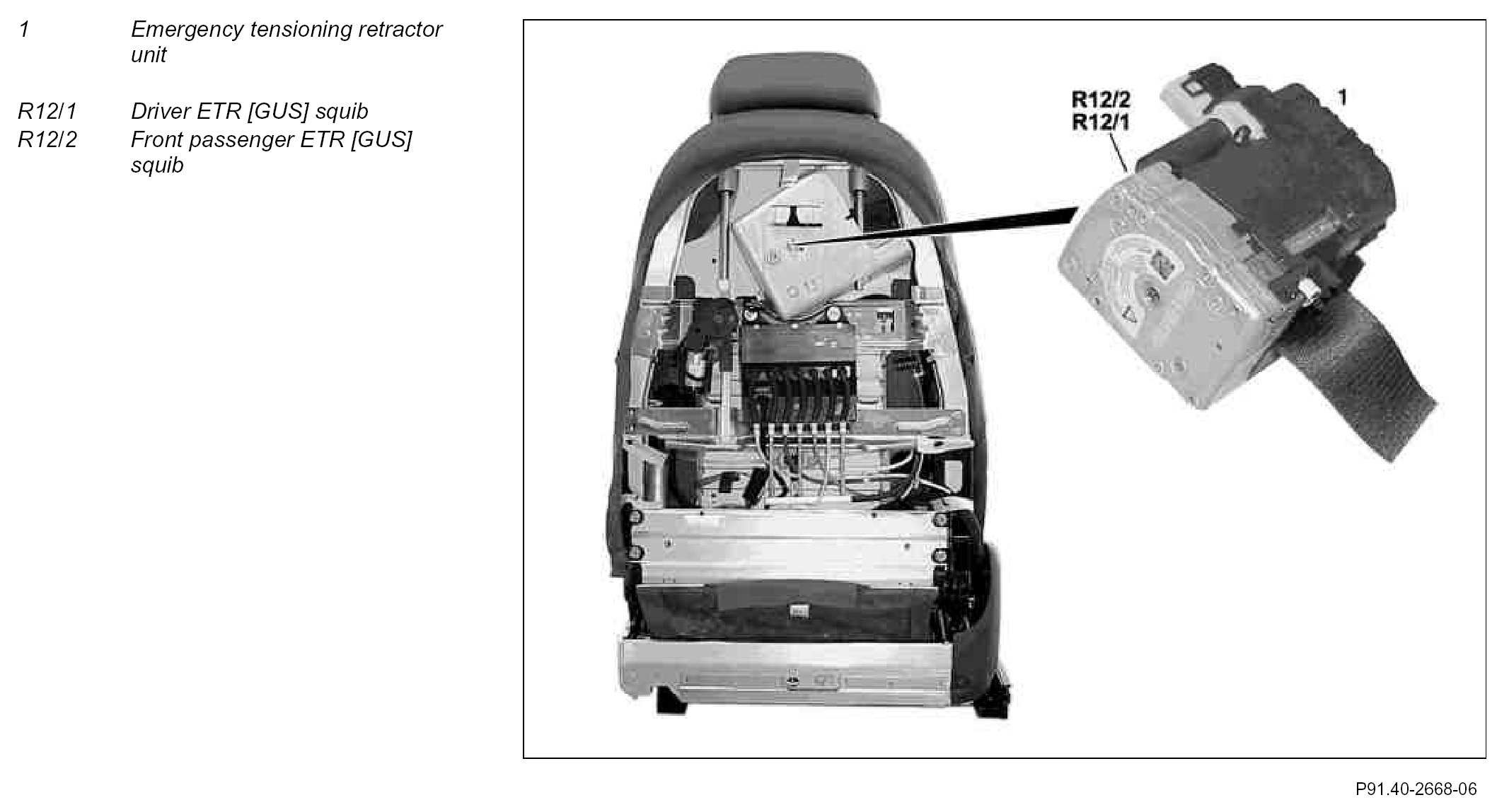

Component Identification:
