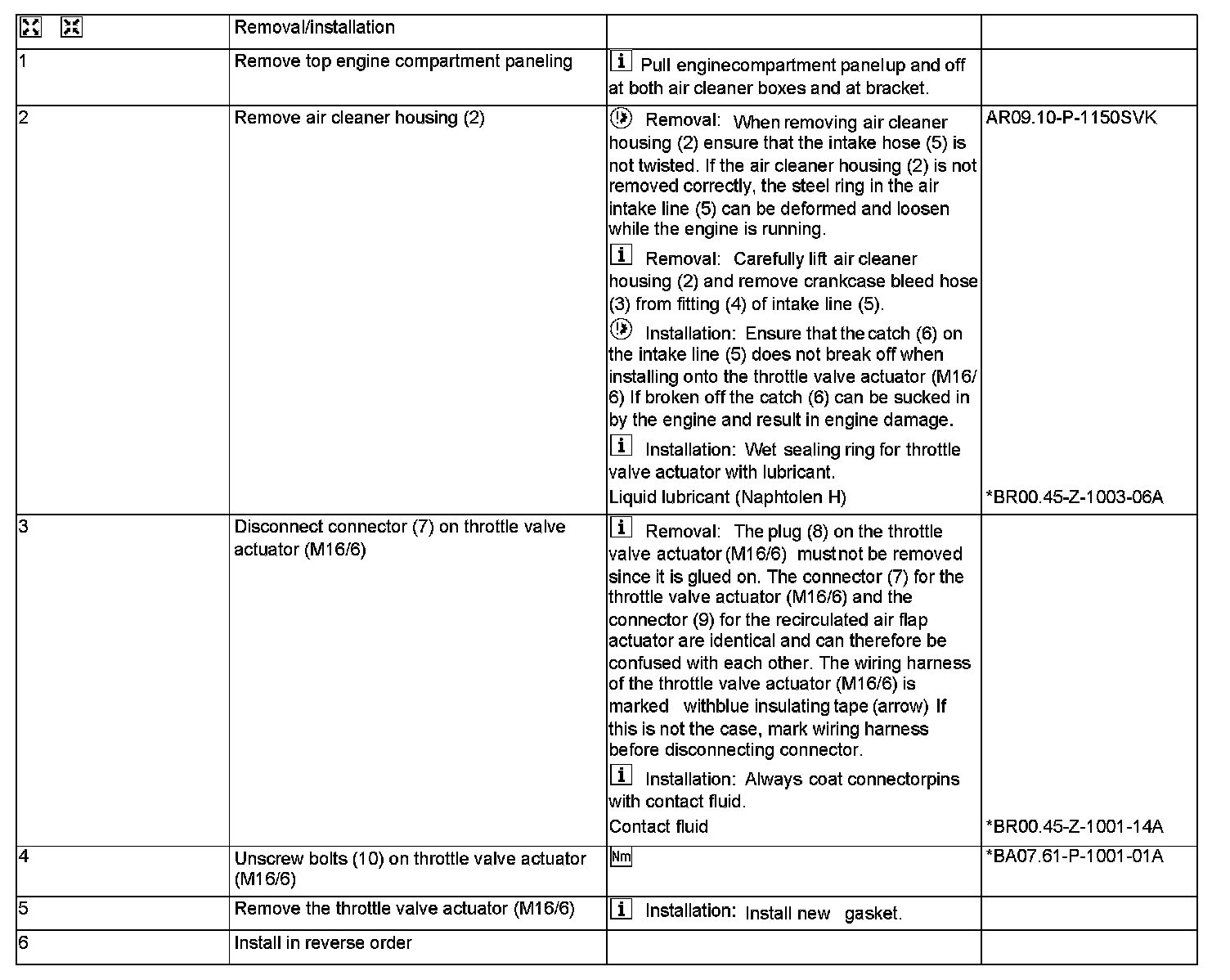

AR07.61-P-1401SVK Remove/Install Throttle Valve Actuator
AR07.61-P-1401SVK Remove/Install Throttle Valve Actuator
AR07.61-P-1401SVK Remove/Install Throttle Valve Actuator

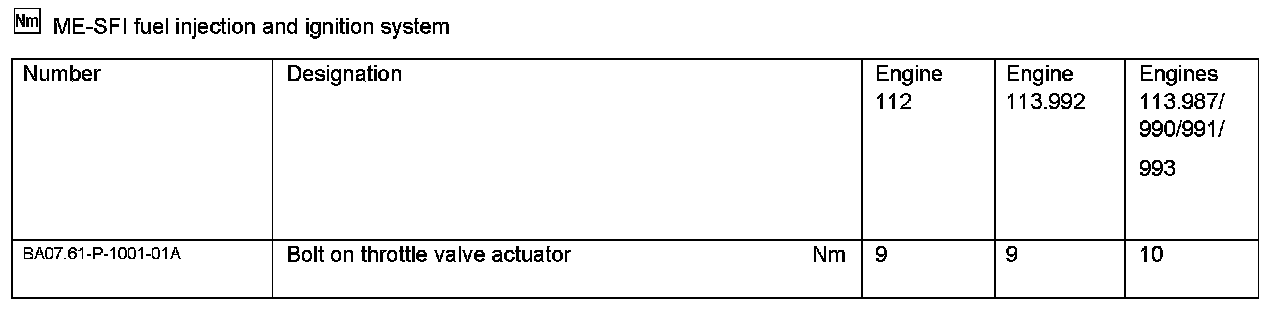

ME-SFI Fuel Injection And Ignition System:
