Home >> Mercedes Benz >> 2005 >> SL 55 AMG (230.474) V8-5.5L SC (113.992) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Description and Operation >> GF54.30-P-0002-04RIT Instrument Cluster (KI), Location of Components

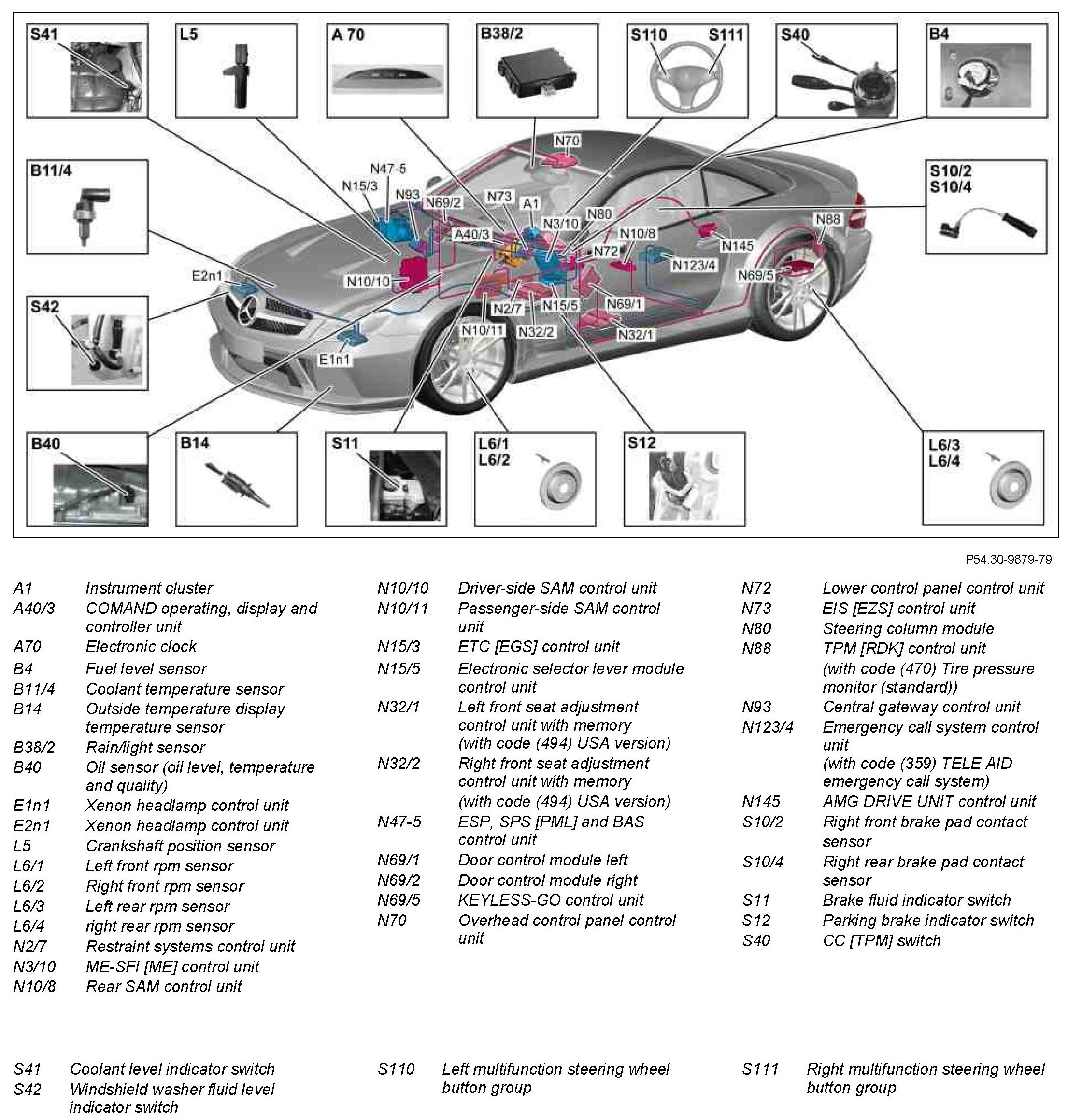

GF54.30-P-0002-04RIT Instrument Cluster (KI), Location of Components



GF54.30-P-0002-04RIT Instrument Cluster (KI), Location Of Components
- with CODE (P99) Special model "AMG Black Series"

Component Identification:
