PE91.59-U-2050KA Electrical Function Diagram For Roll Bar

PE91.59-U-2050KA Electrical function diagram for roll bar

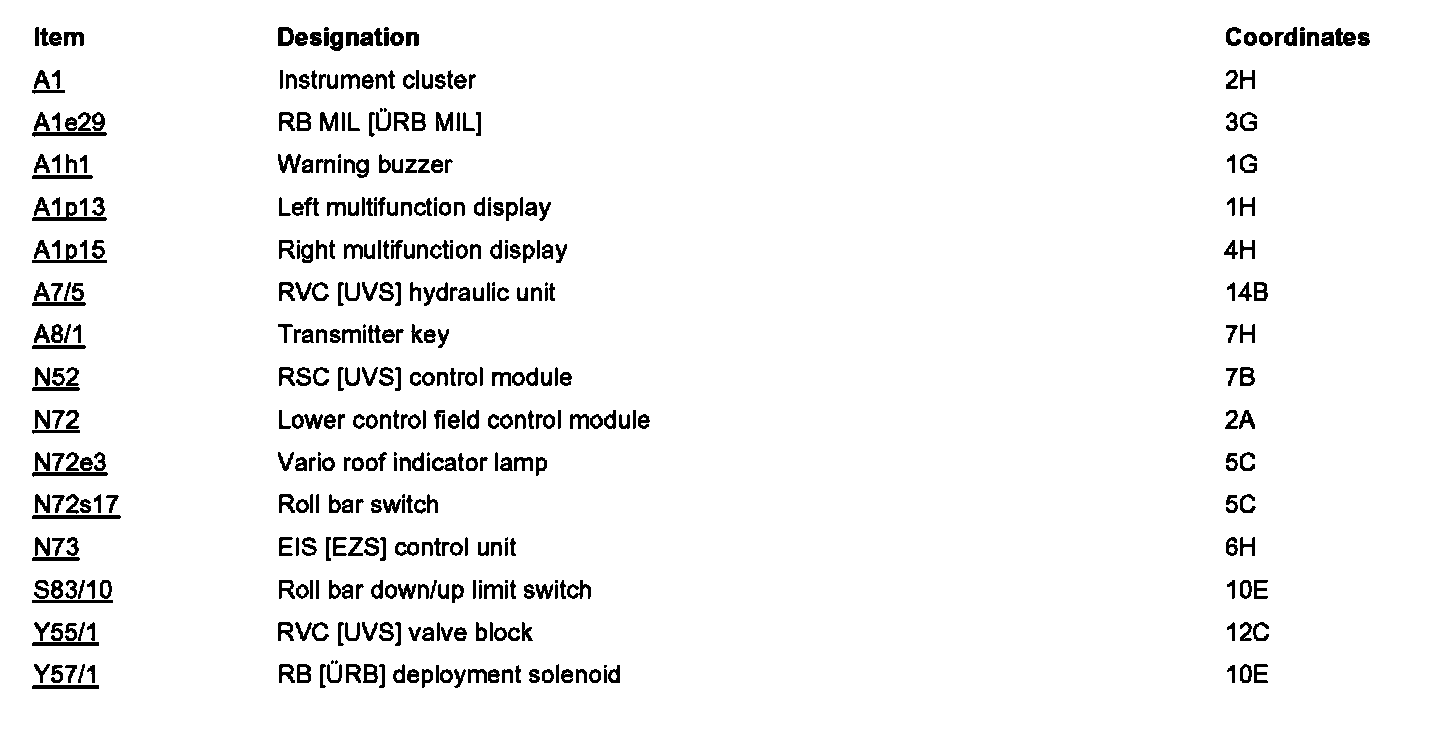

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
