PE80.57-U-2000KA Drive Authorization System (DAS)



Drive Authorization System (DAS) PE80.57-U-2000KA

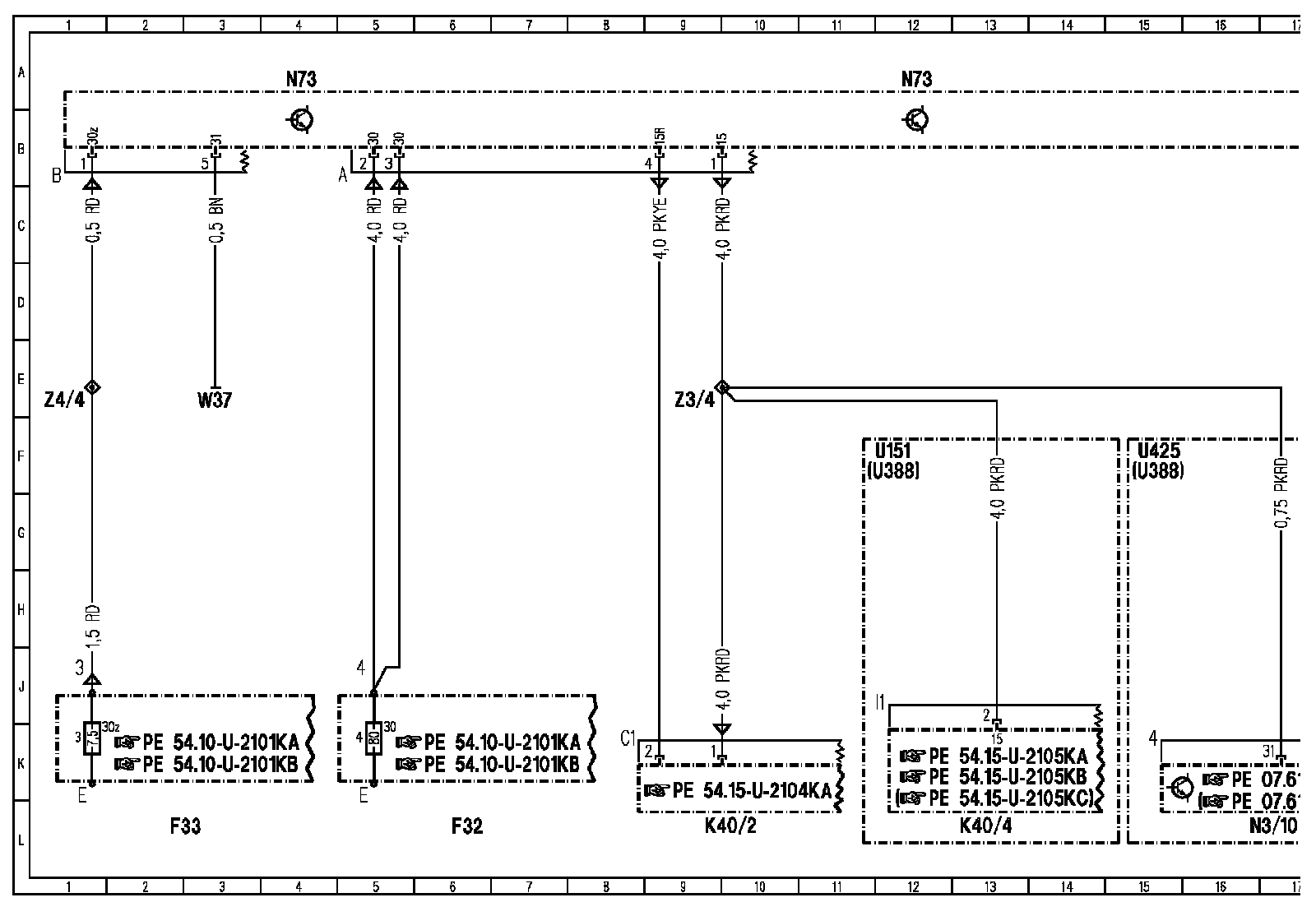

Wiring Diagram, Part-1:

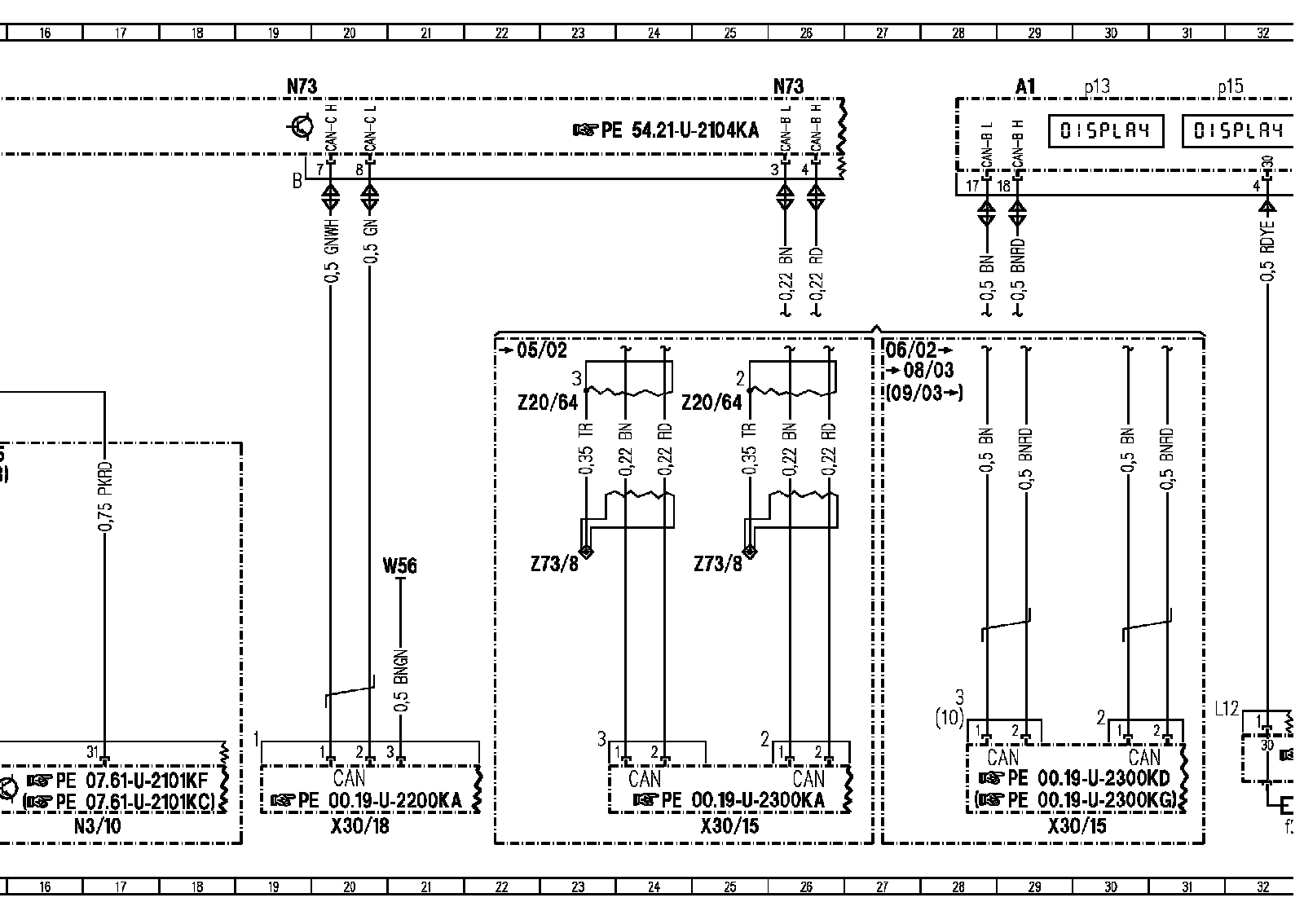

Wiring Diagram, Part-2:

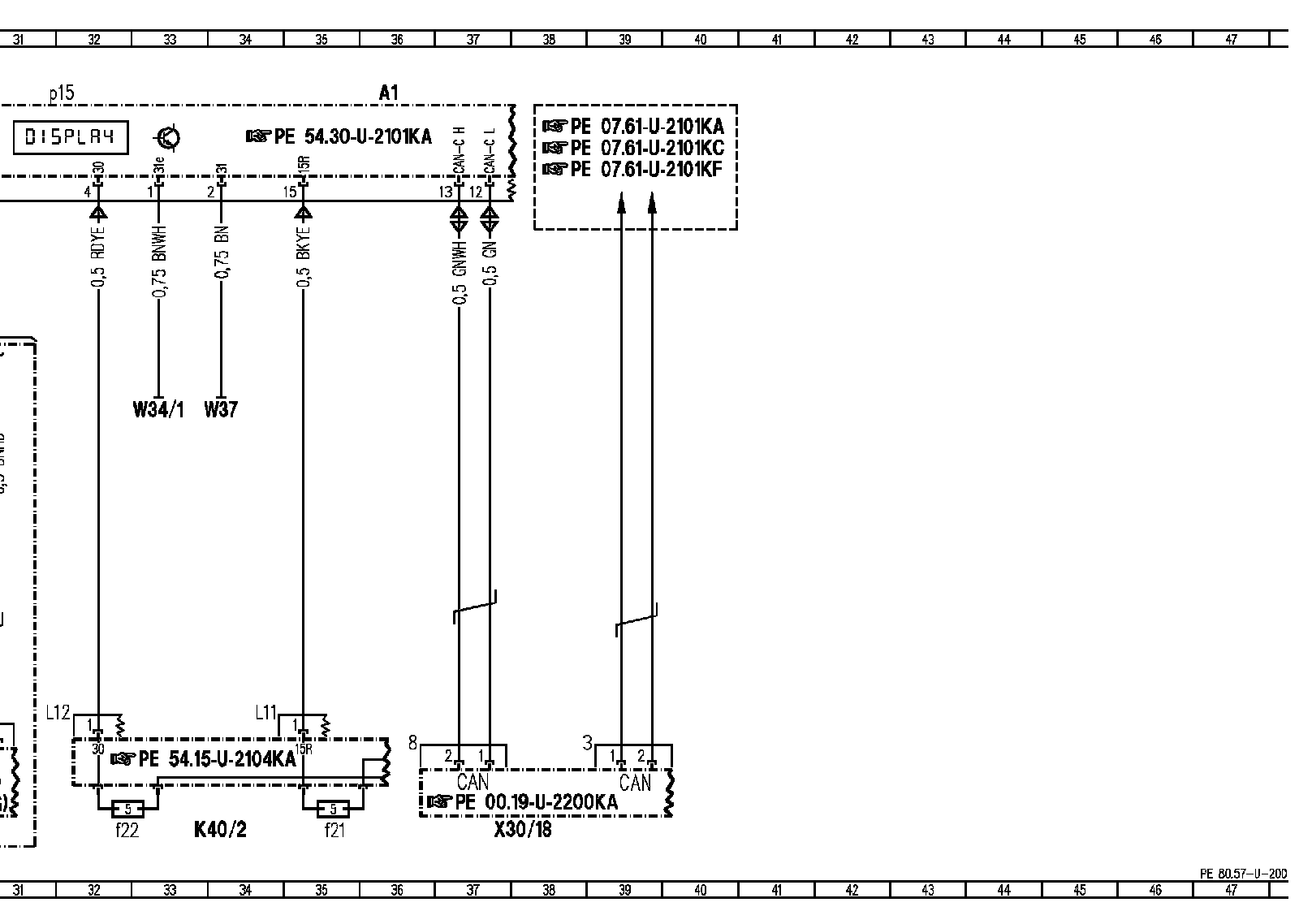

Wiring Diagram, Part-3:

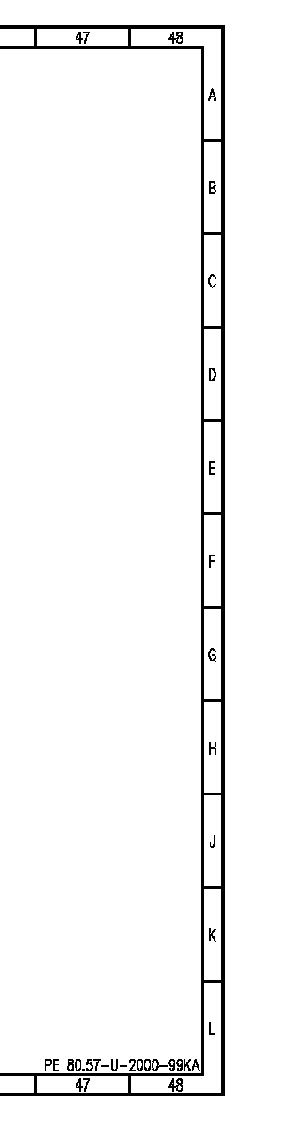

Wiring Diagram, Part-4:

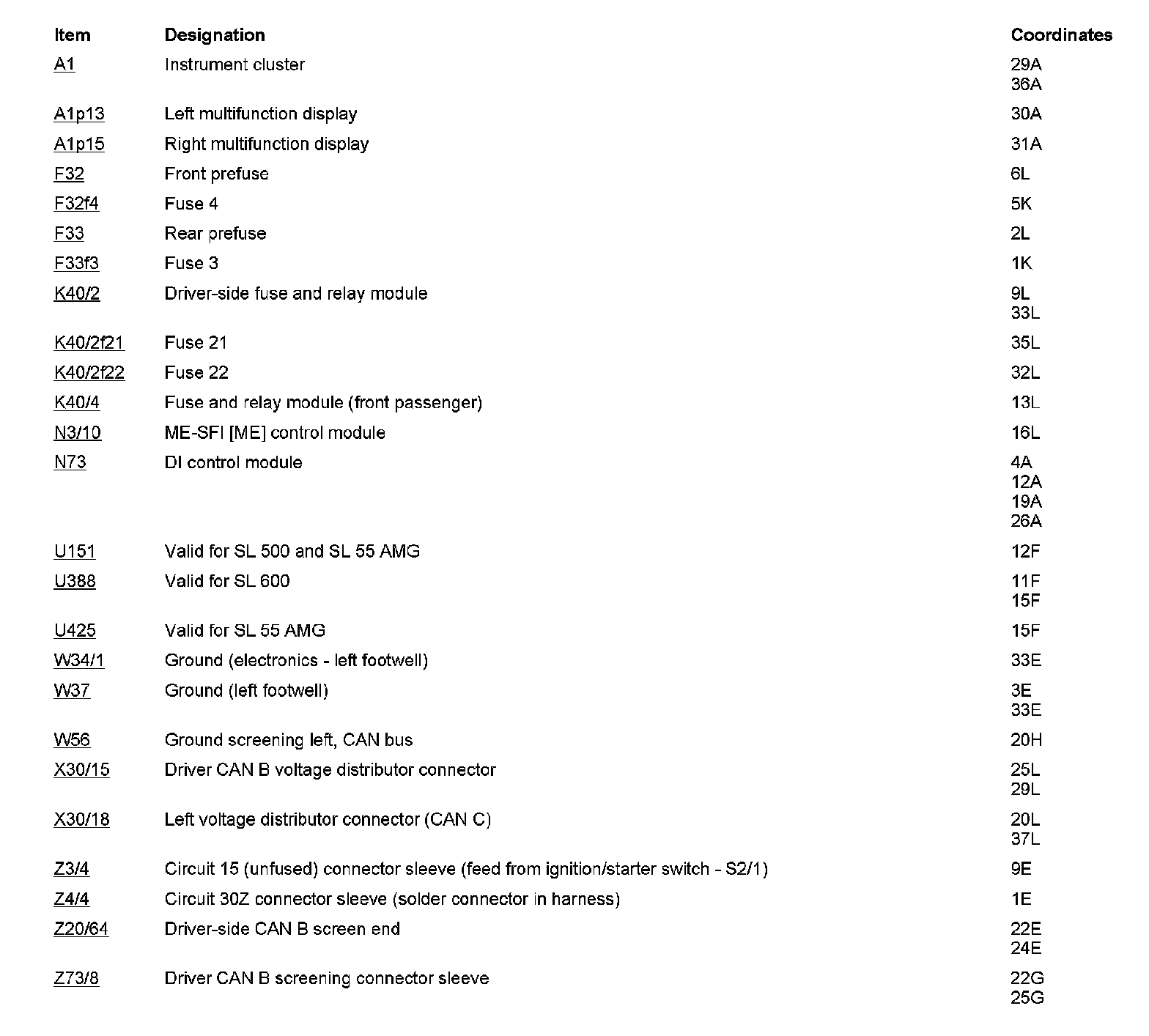

Component Description/Coordinates, A1 To Z73/8:
