AR43.10-P-0355RBS Remove/Install Brake Booster Vacuum Line



AR43.10-P-0355RBS Remove/install brake booster vacuum line
- with CODE (P99) Special model "AMG Black Series"

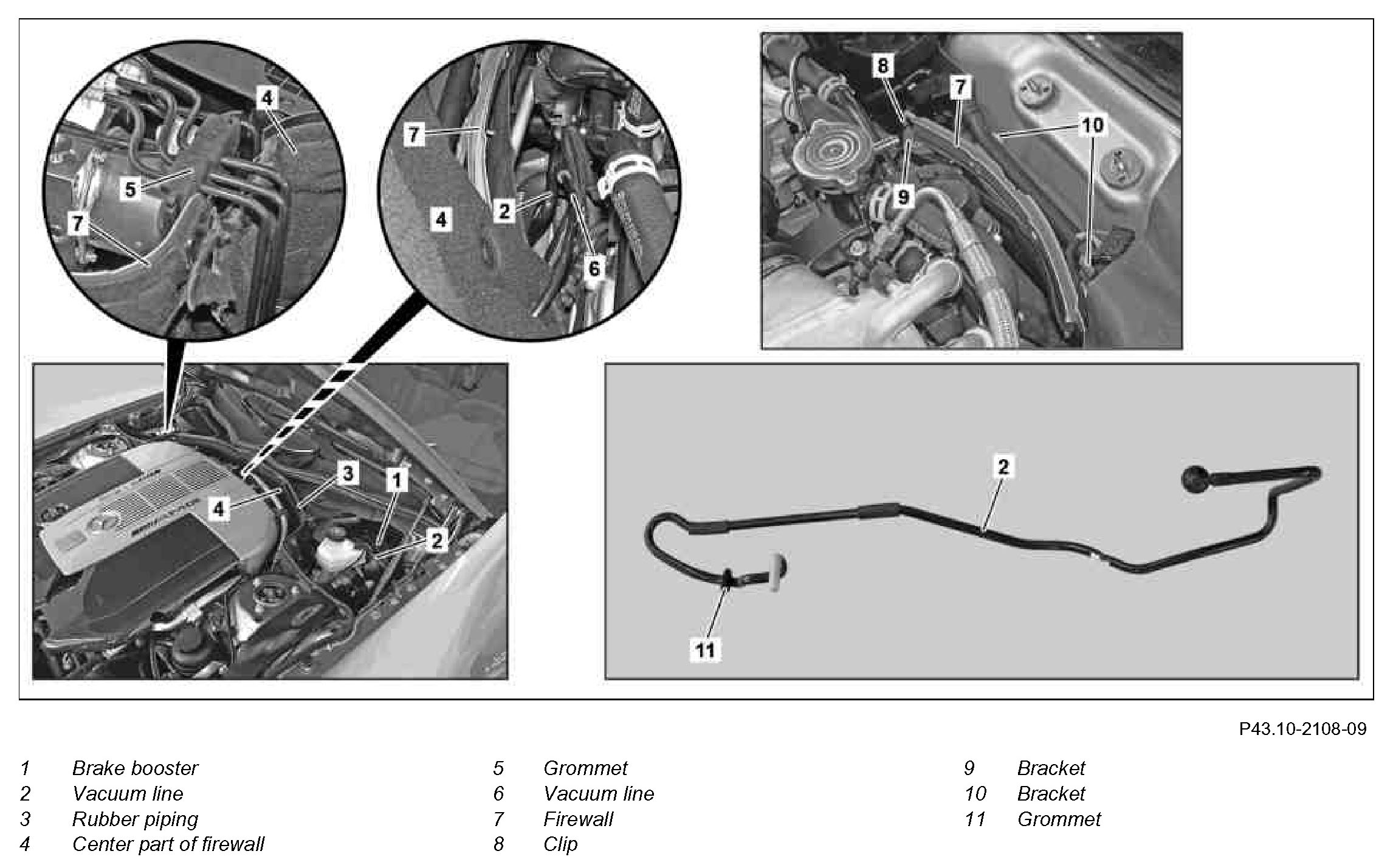

Component Identification:

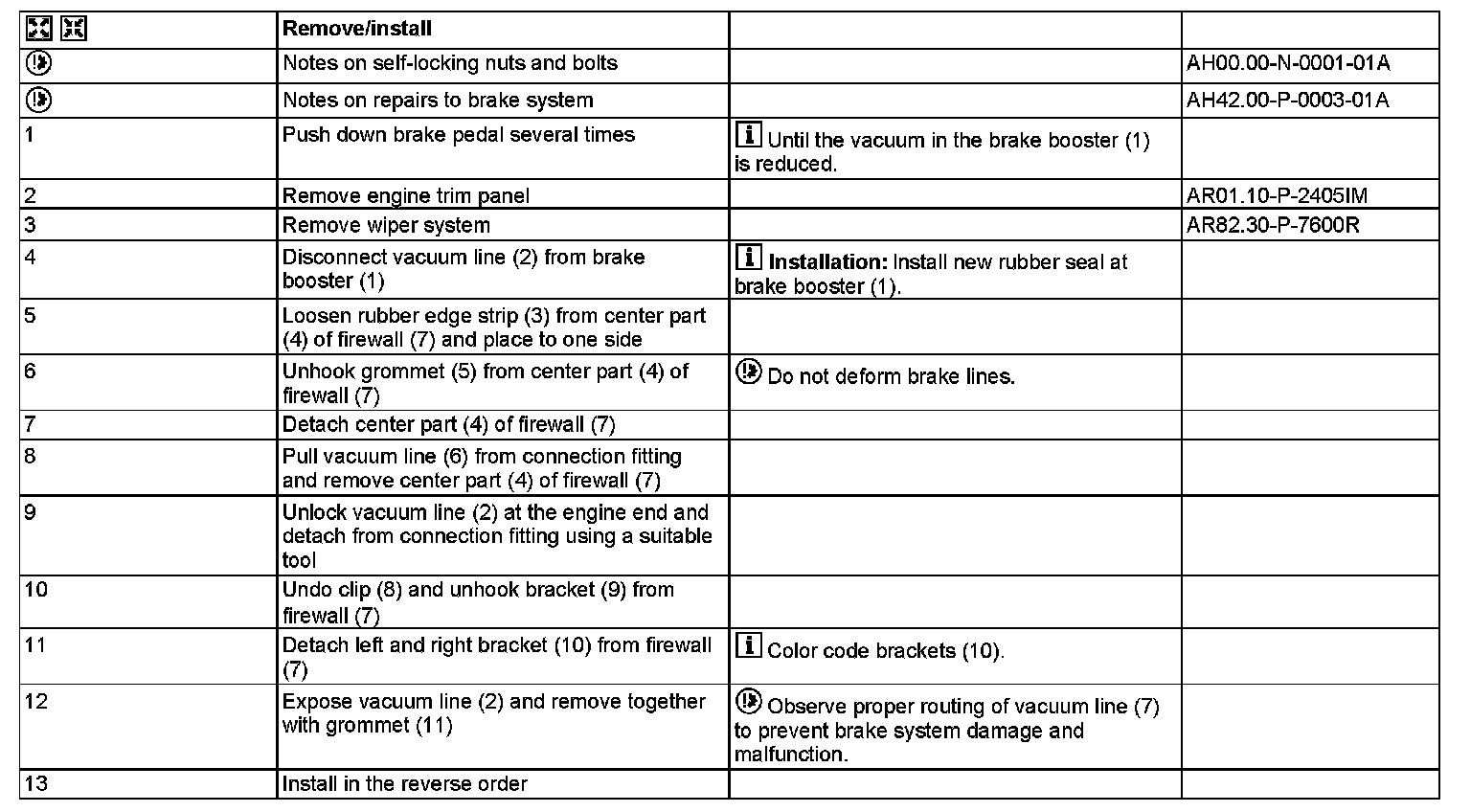

Steps 1-13:
