Home >> Mercedes Benz >> 2005 >> SL 55 AMG (230.474) V8-5.5L SC (113.992) >> Repair and Diagnosis >> Brakes and Traction Control >> Disc Brake System >> Brake Cooling Duct >> Service and Repair >> AR42.10-P-3505RBS Remove/Install Brake Air Duct

AR42.10-P-3505RBS Remove/Install Brake Air Duct



AR42.10-P-3505RBS Remove/install brake air duct
- with CODE (P99) Special model "AMG Black Series"

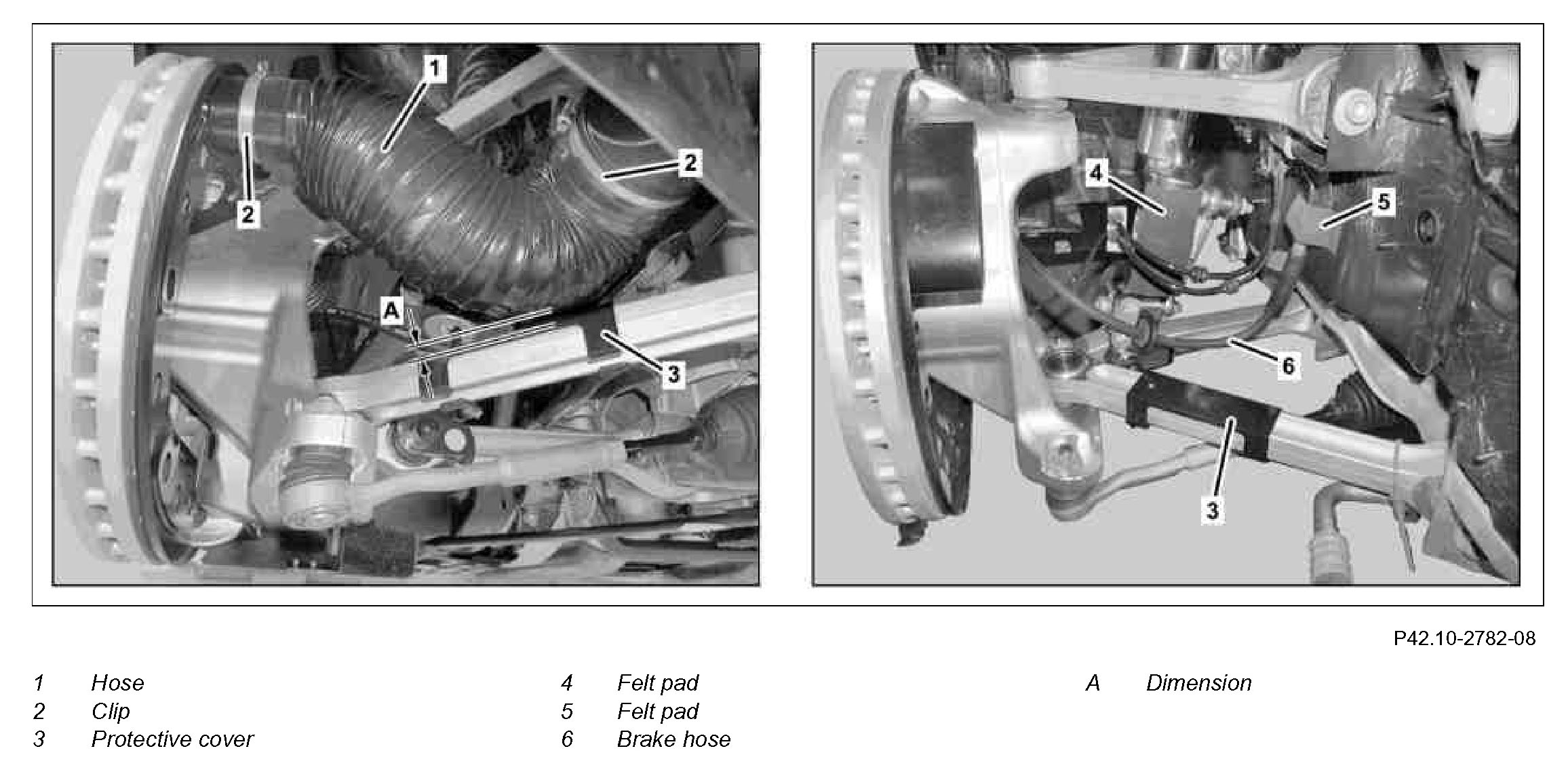

Component Identification:

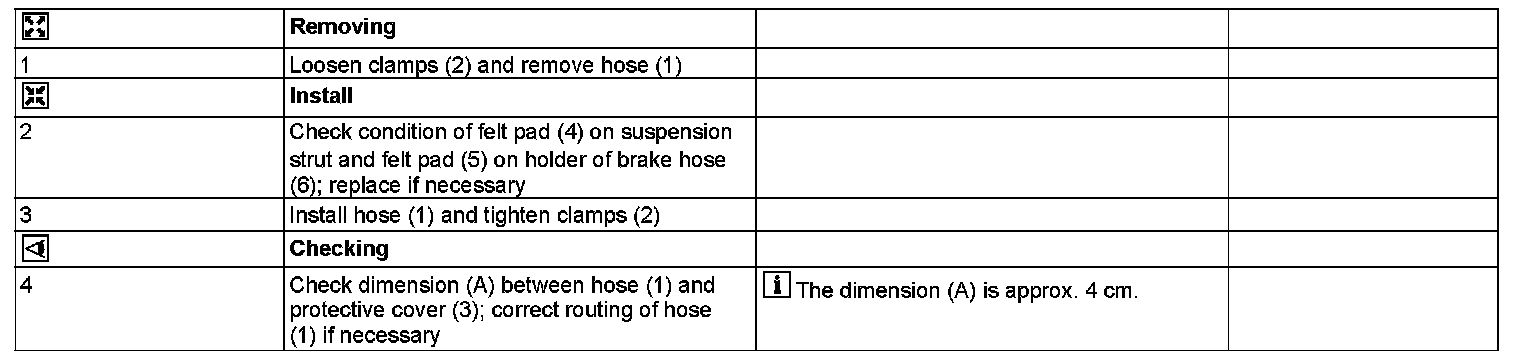

Steps 1-4:
