Brake Pedal Assy: Service and Repair
AR29.10-P-4597R Removing and installing brake pedal

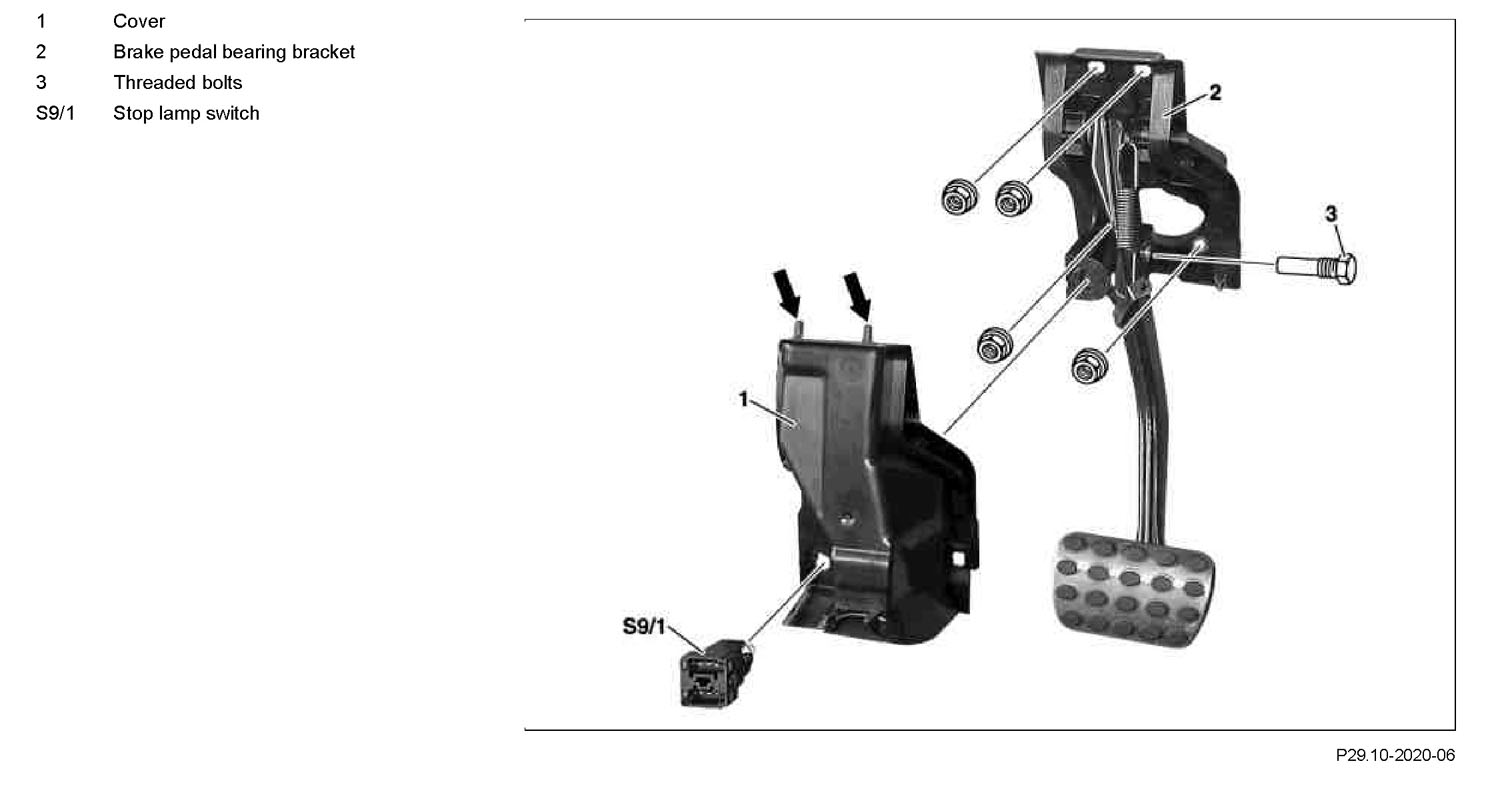

Component Identification:

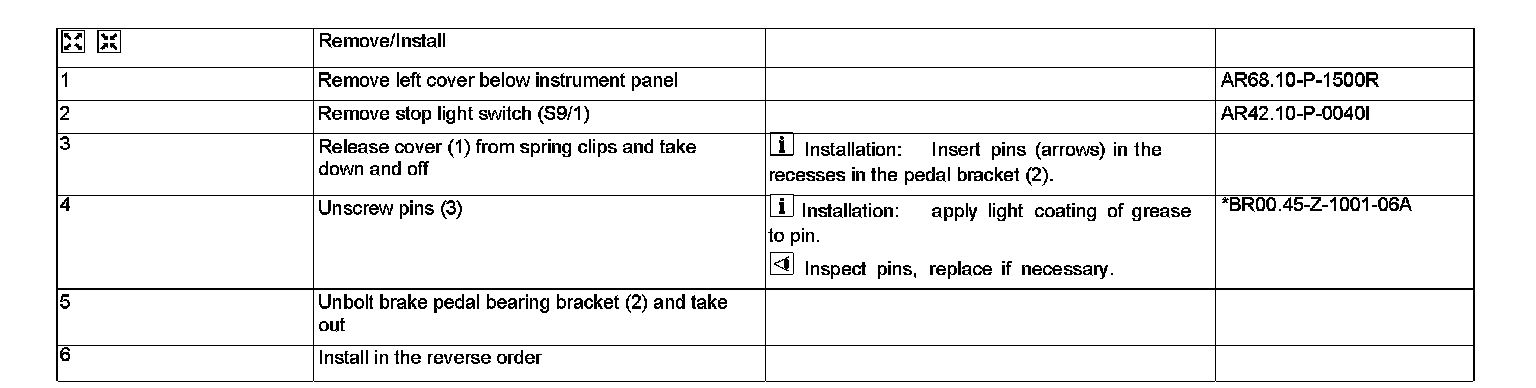

Steps 1 - 6:

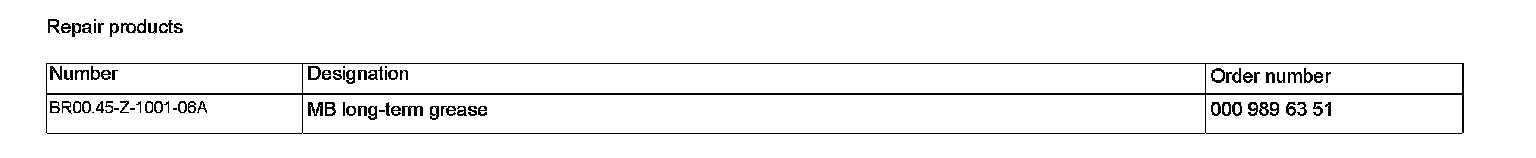

Repair Products:
