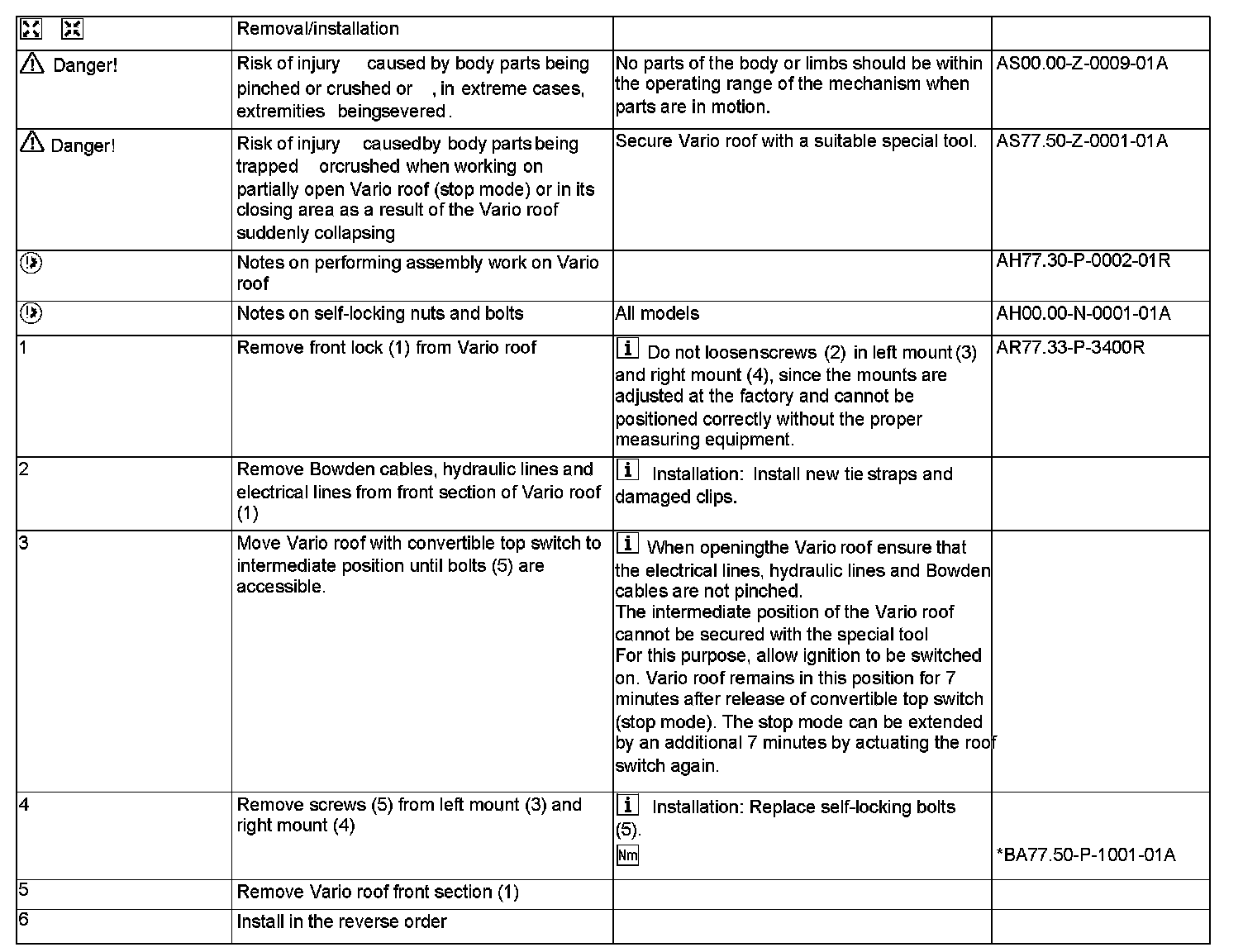

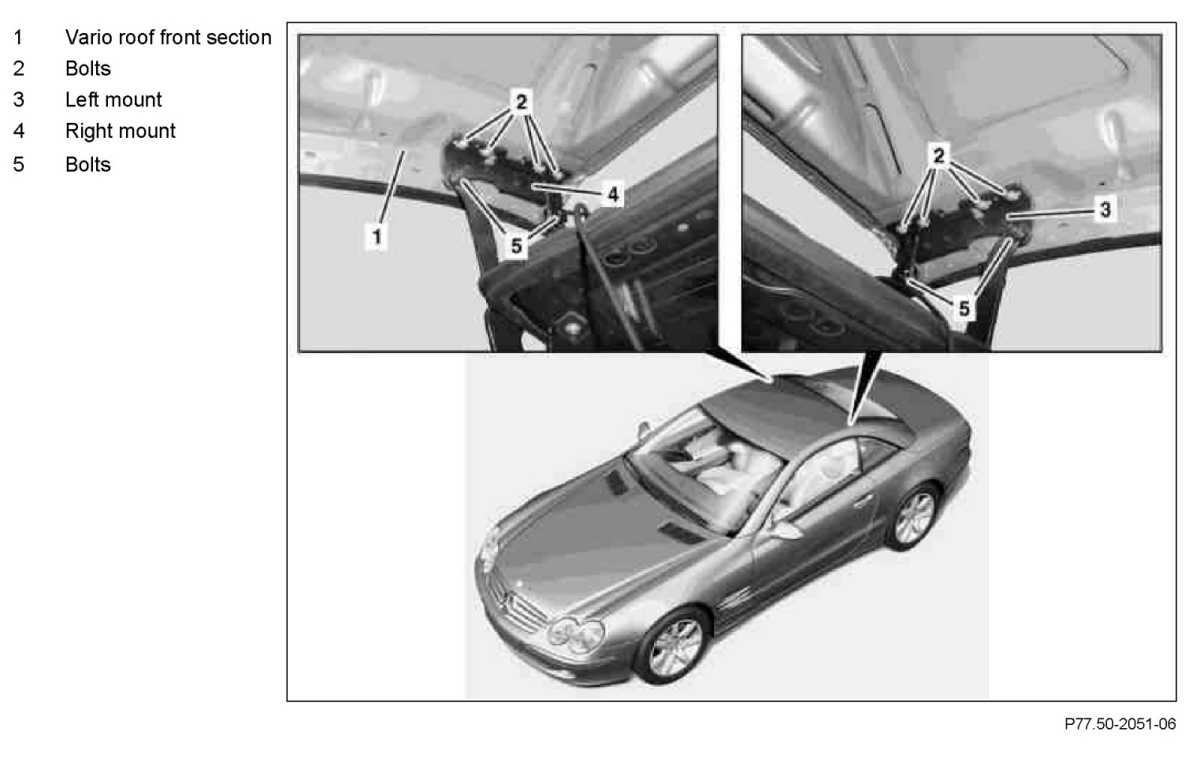

AR77.50-P-3100R Remove/Install Front Section of Vario Roof
AR77.50-P-3100R Remove/Install Front Section of Vario Roof
AR77.50-P-3100R Remove/Install Front Section of Vario Roof
- except CODE (415) Glass roof

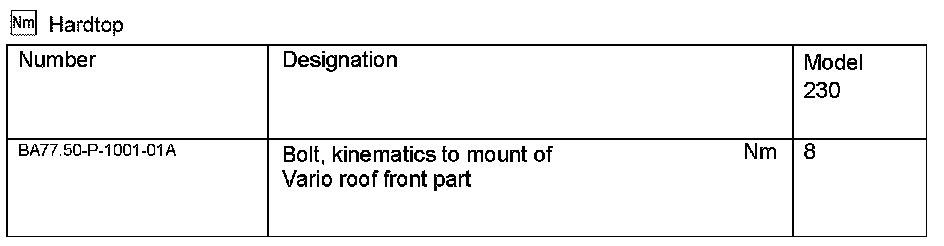

Hardtop:
