AR77.33-P-3470R Adjust Bowden Cable for Lock on C-Pillar

AR77.33-P-3470R Adjust Bowden Cable For Lock on C-pillar
MODEL 230.4
- except CODE (P99) "AMG Black Series" special model





Shown on left C-pillar

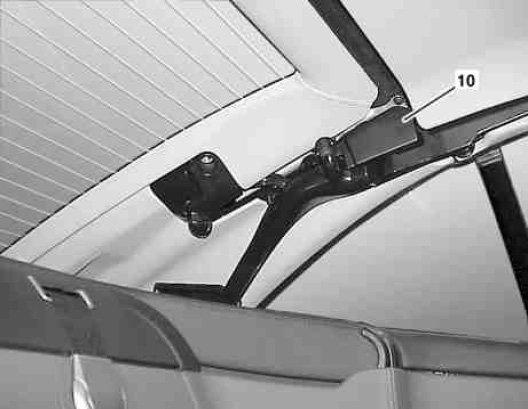

10 Panel





Shown on left C-pillar

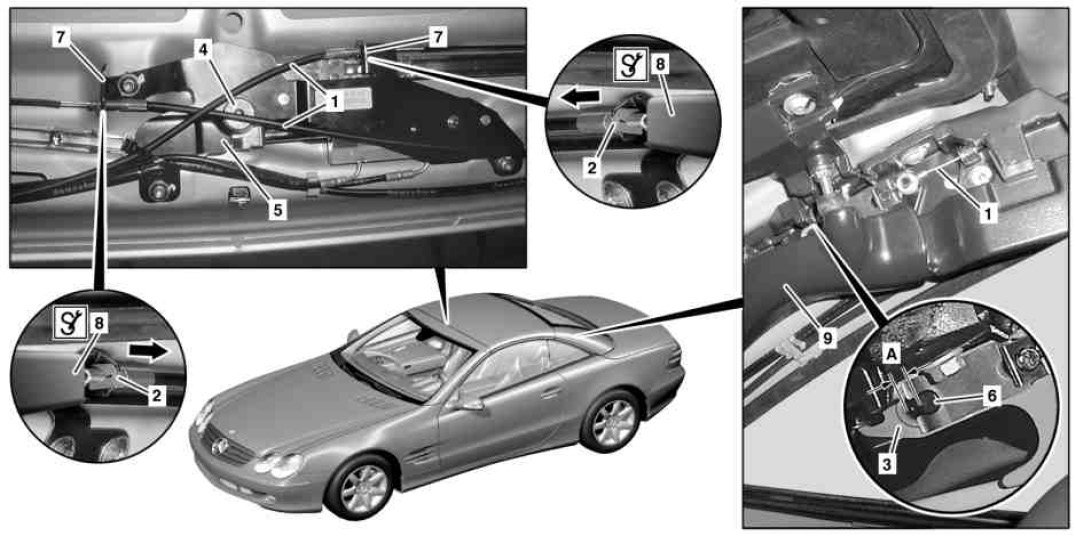

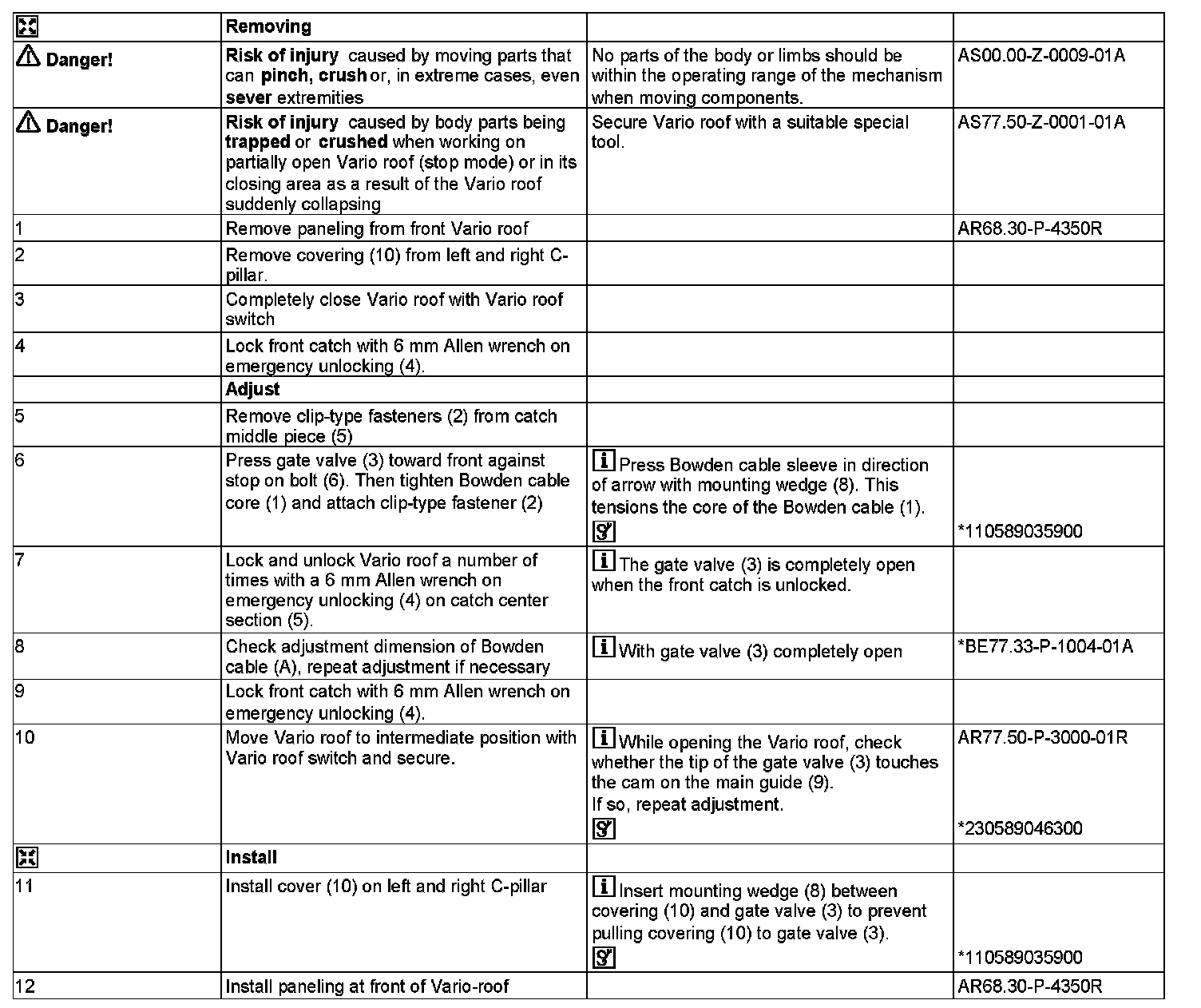

1 Bowden cables
2 Clip-type fastener
3 Wedge slide
4 Emergency unlocking
5 Latch middle piece
6 Pin
7 Mating mount for Bowden cable
8 Mounting wedge
9 Main guide

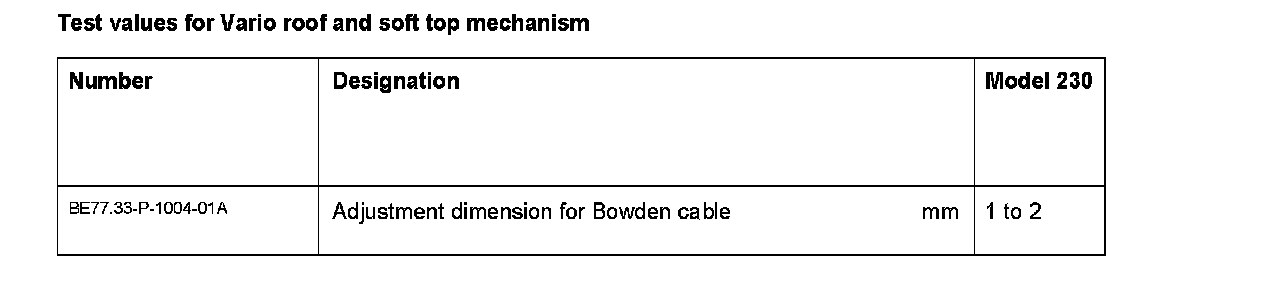

A Adjustment dimension for Bowden cable











110 589 03 59 00
Mounting wedge





230 589 04 63 00
Support
