AR54.21-P-1263R Remove/Install Lower Control Panel Control Unit



AR54.21-P-1263R Removing and Installing Lower Control Panel Control Unit

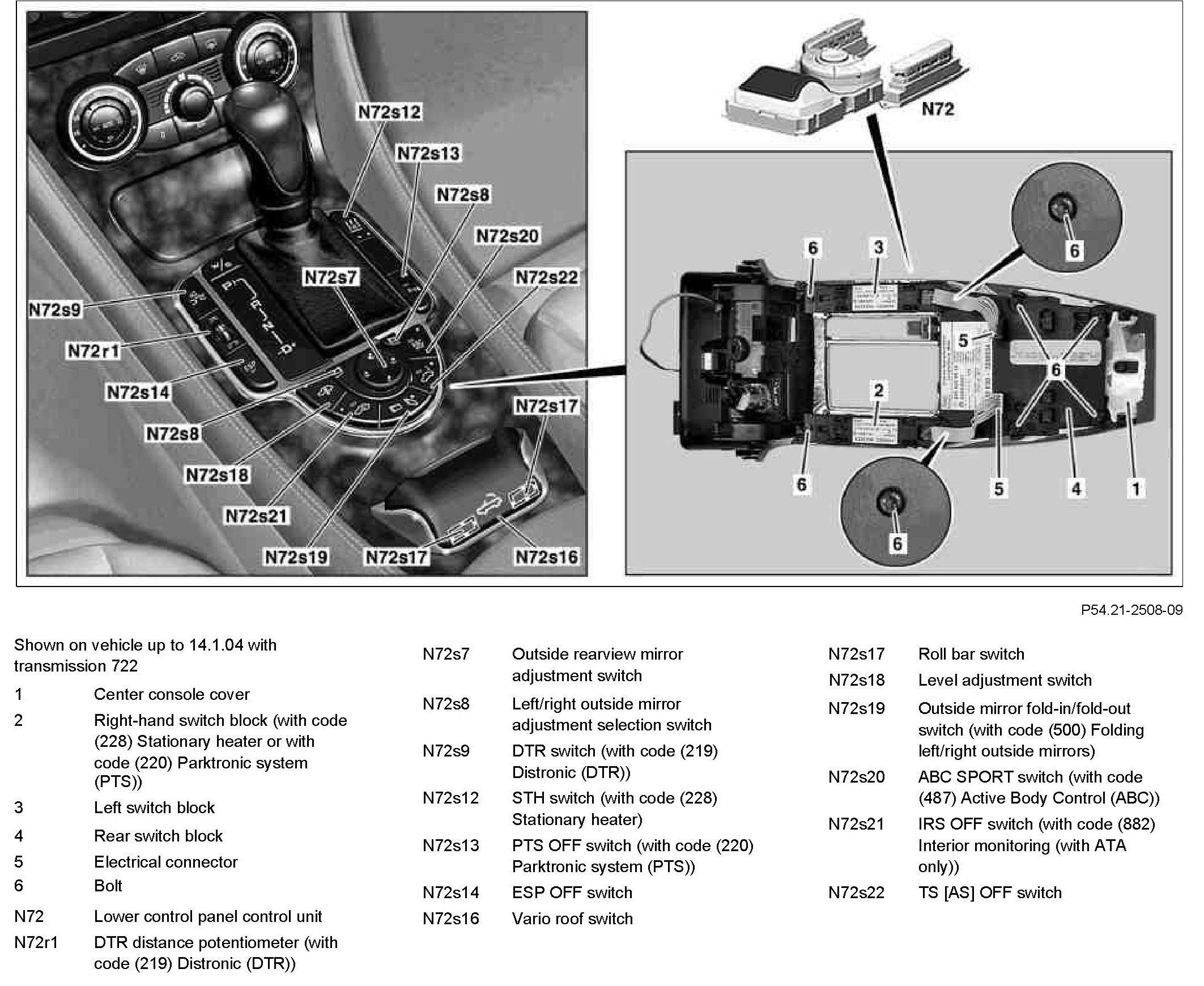

Component Identification:

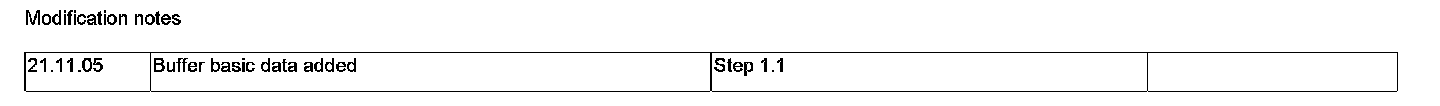

Modification Notes:

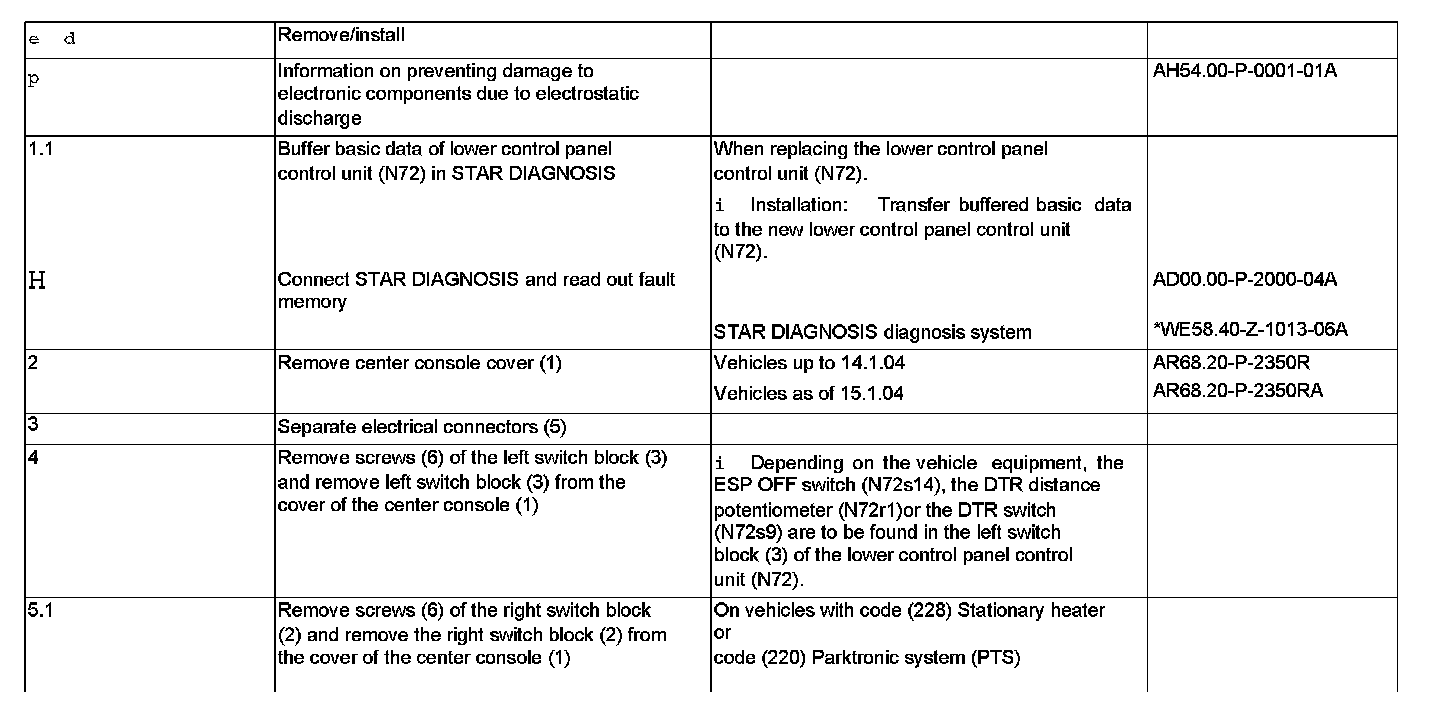

Steps 1.1 - 5.1:

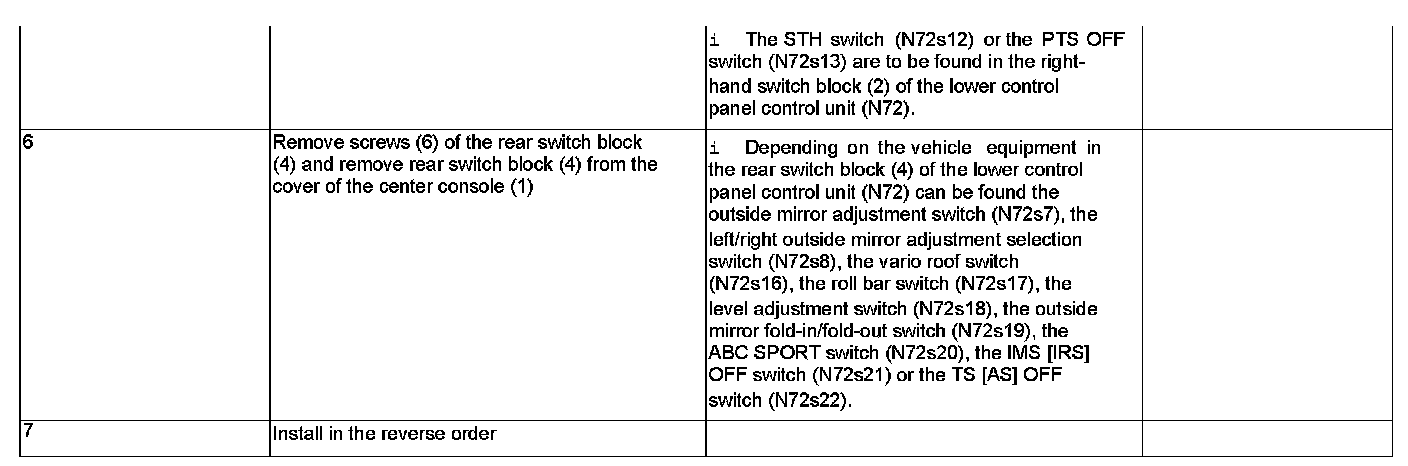

Steps 6 - 7:




Workshop Equipment/MB Testers:
