Electrical Diagrams

PE82.62-U-2101KB Sound Amplifier, Control Module

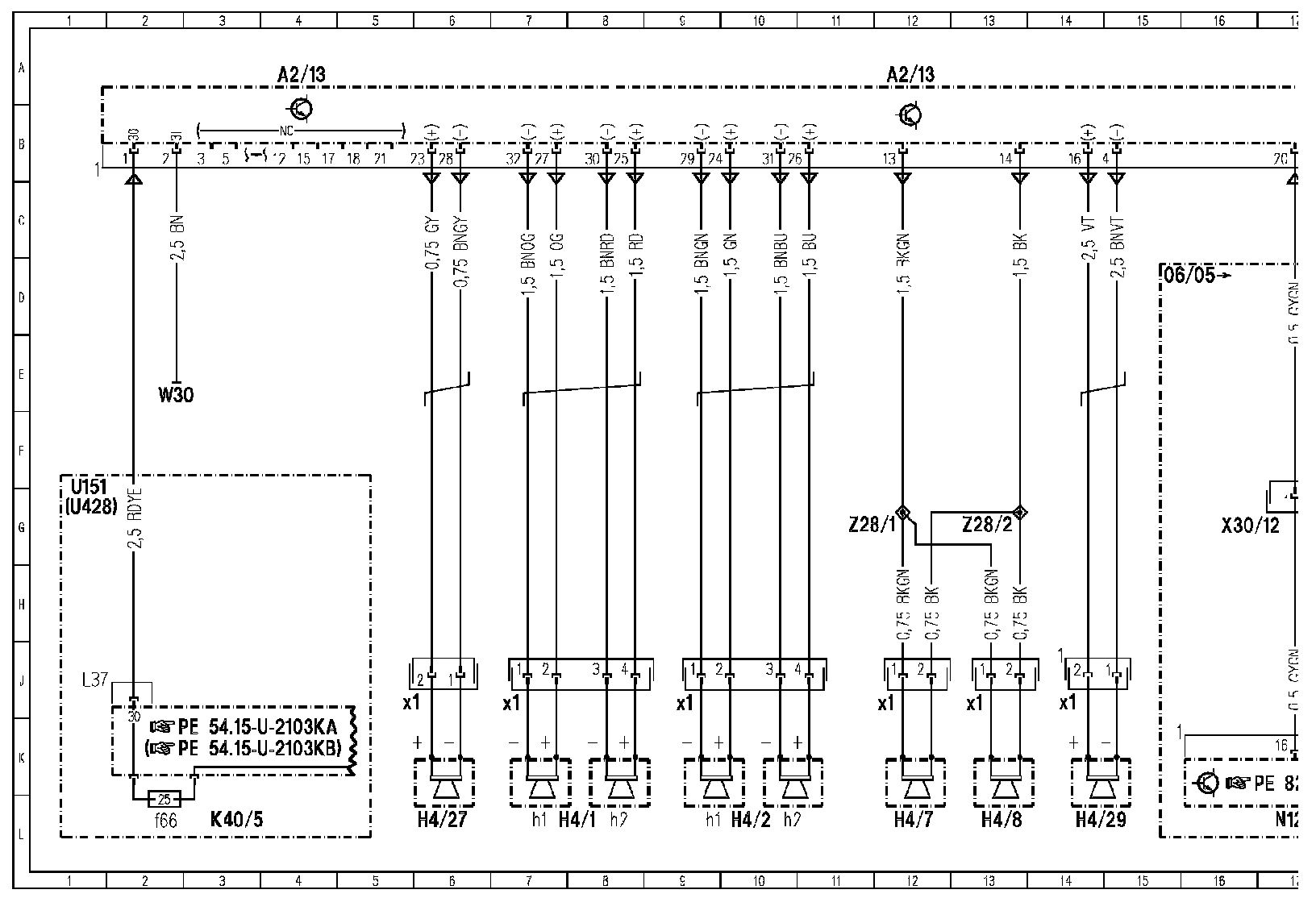

Wiring Diagram, Part 1:

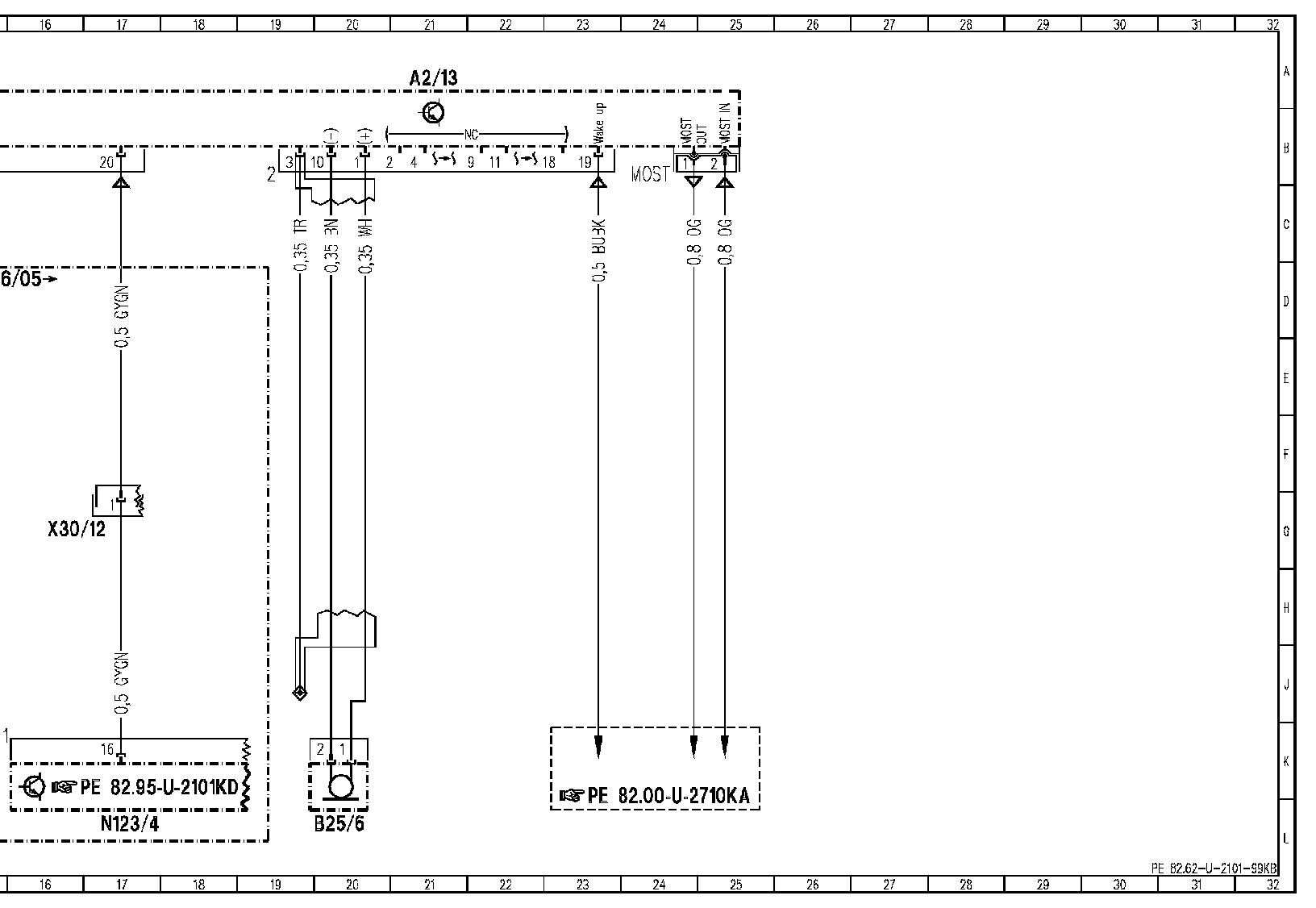

Wiring Diagram, Part 2:

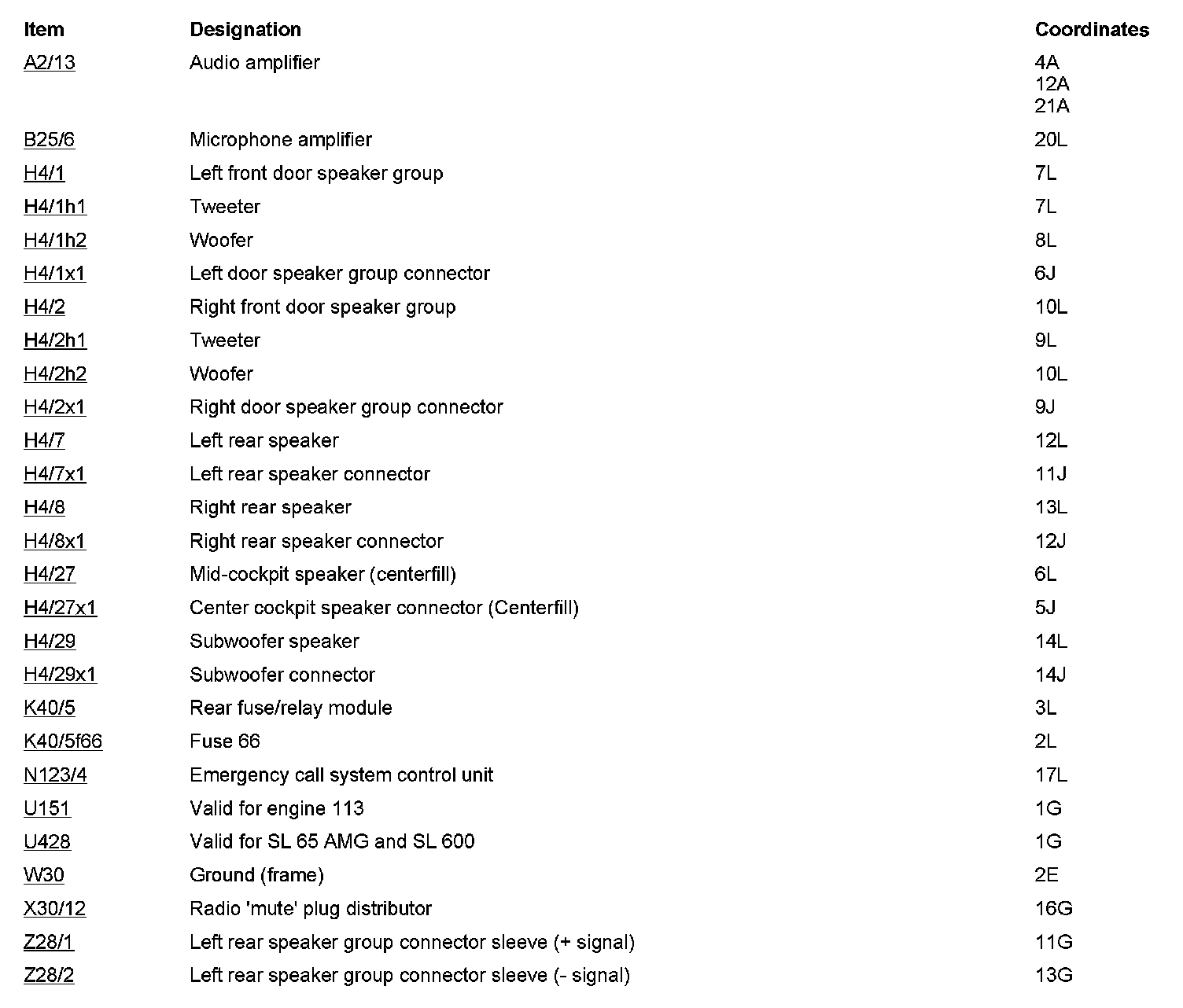

Component Description/Coordinates, A2/13 To Z28/2:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
