AN82.60-P-0001-03RA Retrofit TV Tuner Wiring Harness

AN82.60-P-0001-03RA Retrofit TV Tuner Wiring Harness
- with CODE (860) TV tuner

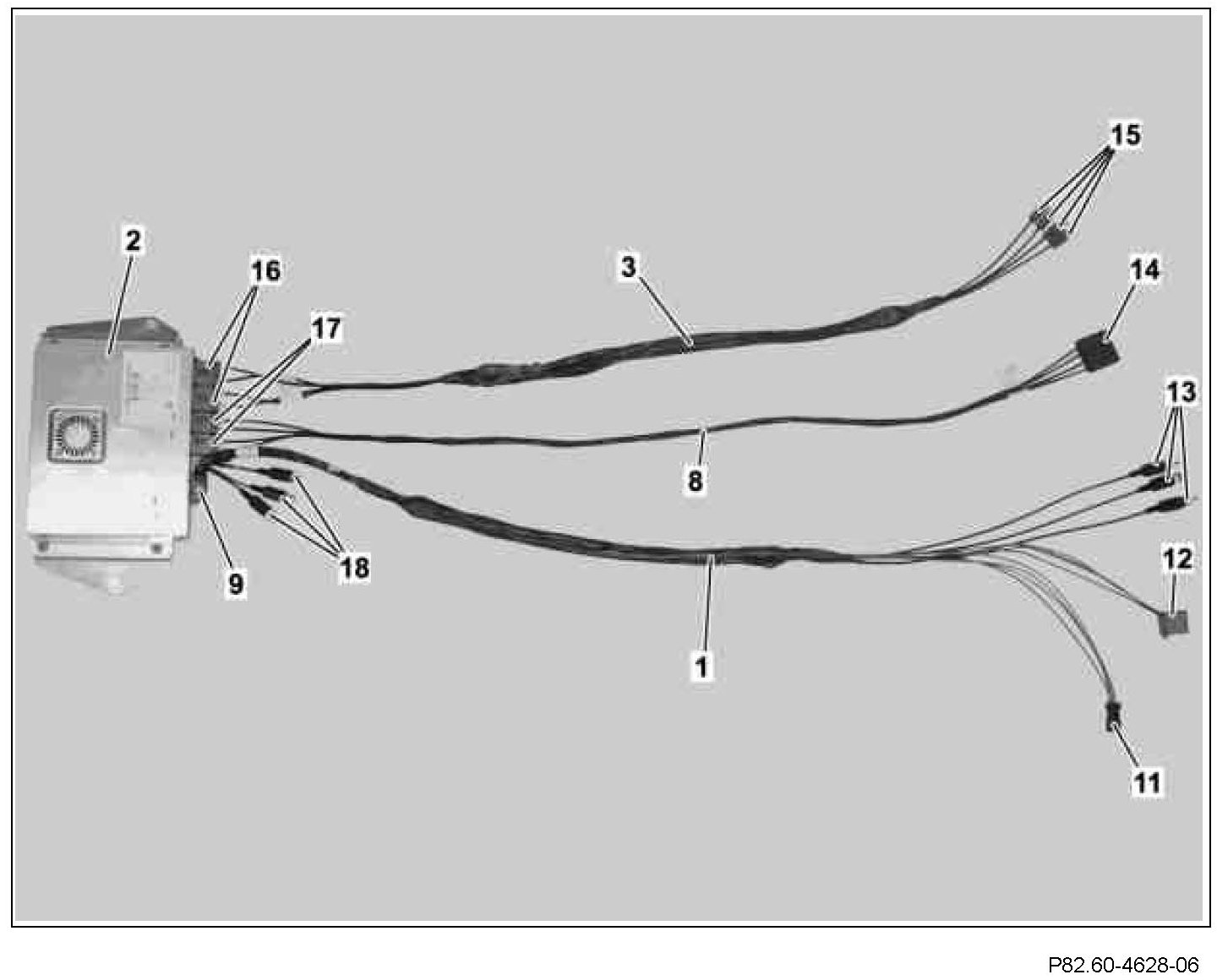

1 Connect coupling (9) of digital TV tuner adapter line (1) to digital TV tuner (2).
2 Secure plug (18) to digital TV tuner adapter line (1) with self-adhesive felt.
3 Connect couplings (16) of digital TV tuner antenna line (3) to digital TV tuner (2).
4 Connect couplings (17) of adapter antenna line (8) to digital TV tuner (2).







5 Remove cover for rear SAM control unit (N10/8) from right rear luggage box (6).

Cover for rear SAM control unit (N10/8) is no longer required.

6 Guide adapter line of digital TV tuner (1), antenna line of digital TV tuner (3), and adapter antenna line (8) of digital TV tuner (2) together through right rear luggage box (6) as per the picture and route along on-board wiring harness to TV tuner (see arrows).

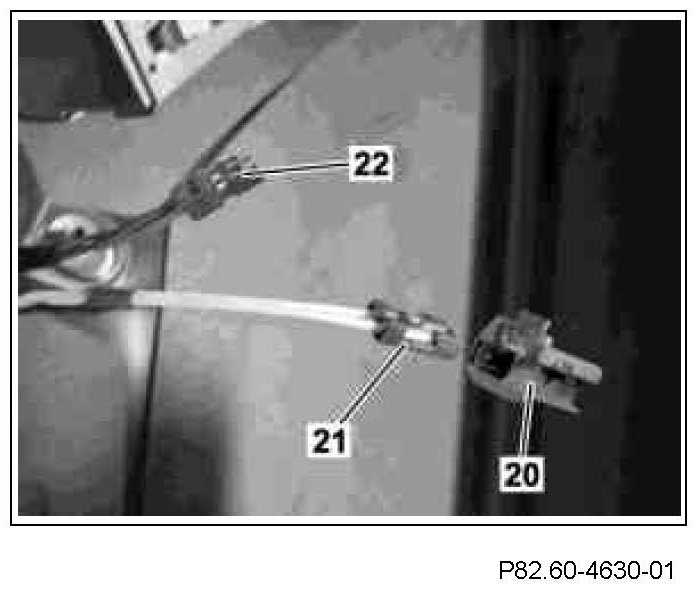

7 Disconnect black, 6-pin connector (20) and black 4-pin antenna line connector (19) from digital TV tuner (A2/42).

Shown on Model 220







8 Remove black, 4-pin connector (22) and black, 2-pin MOST connector (21) from black, 6- pin connector (20).

Black, 6-pin connector (20) is no longer needed.

Shown on Model 220

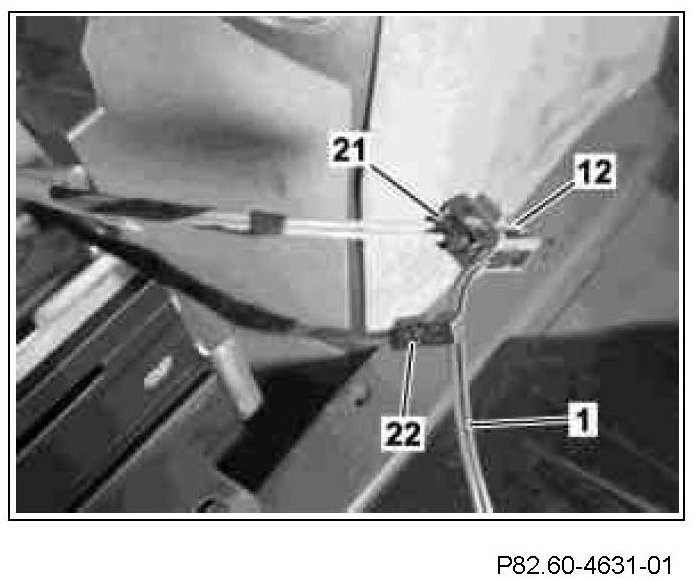

9 Install black, 2-pin MOST connector (21) into green, 6-pin connector (12) of digital TV tuner adapter line (1).

Shown on Model 220

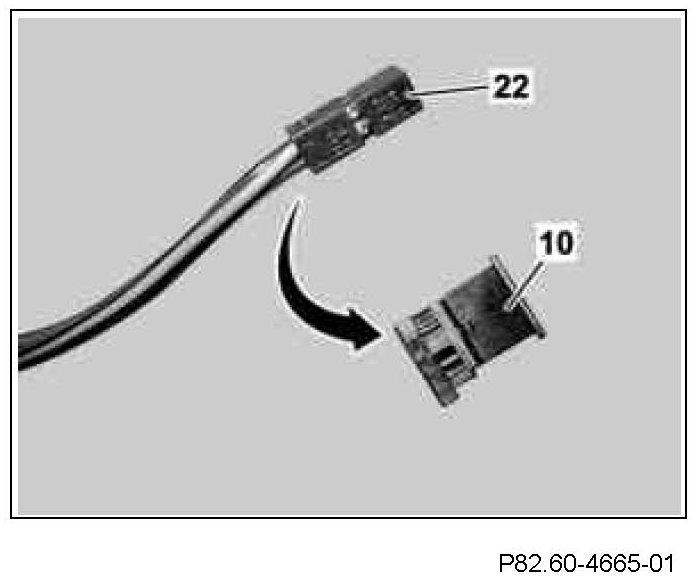

10 Remove lines from black, 4-pin connector (22) of on-board wiring harness and install in same positions black, 4-pin connector (10) provided in digital TV tuner parts kit.

Black, 4-pin connector (22) is no longer needed.

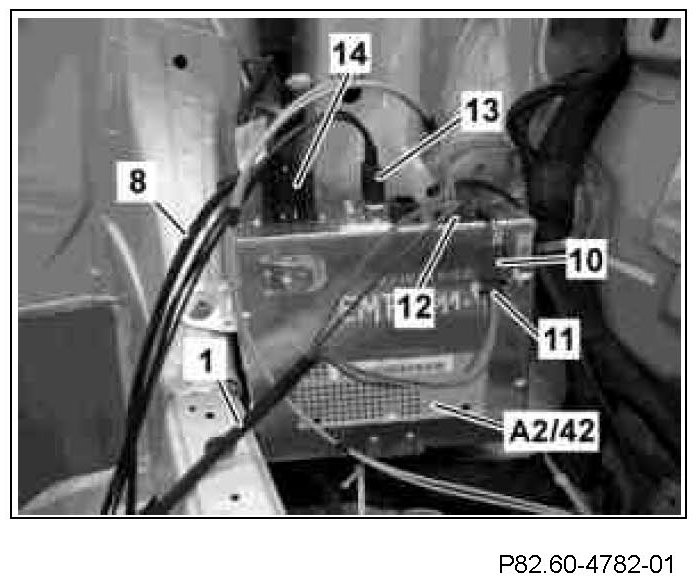

11 Connect green, 6-pin connector (12) of digital TV tuner adapter line (1) to TV tuner (A2/42).
12 Connect black, 4-pin connector (14) of adapter antenna line (8) from digital TV tuner to TV tuner (A2/42).
13 Connect plugs (13) of digital TV tuner adapter line (1) to AV1 input of TV tuner (A2/42) - colors must match.
14 Connect black, 4-pin connector (10) of on-board wiring harness to black 4-pin plug (11) of digital TV tuner adapter line (1).

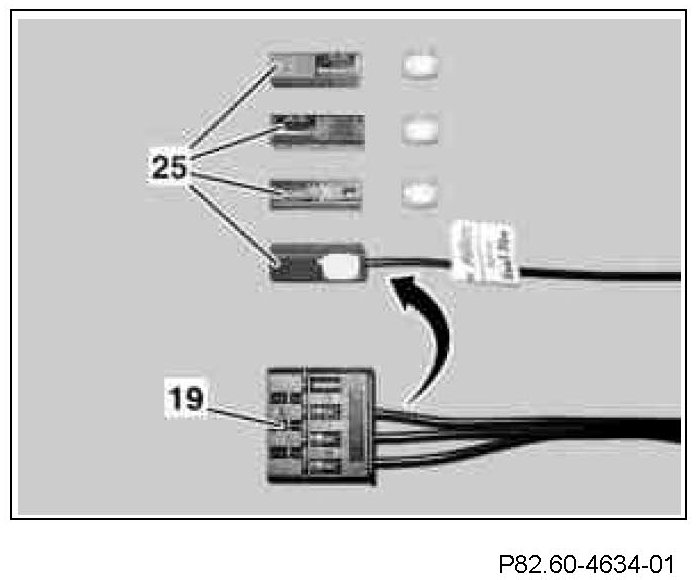

15 Remove antenna lines from black, 4-pin antenna line connector (19) of on-board antenna wiring harness and install in 1-pin connectors (25) provided in digital TV tuner parts kit.


The colored coding rings on the antenna lines must be removed before the antenna lines are installed in the 1-pin connectors (25). The antenna lines can be installed in any of the 1- pin connectors (25). Black, 4-pin antenna line connector (19) is no longer needed.

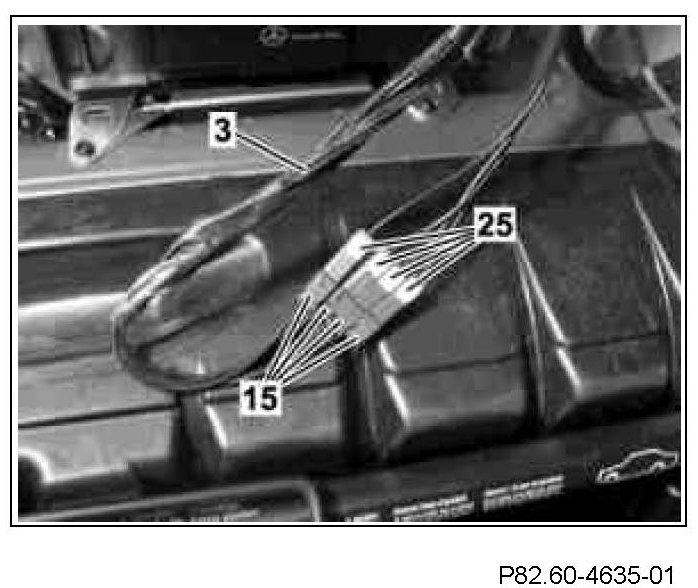

16 Connect 1-pin couplings (25) of on-board wiring harness to 1-pin plugs (15) of digital TV tuner antenna line (3).

Shown on Model 220

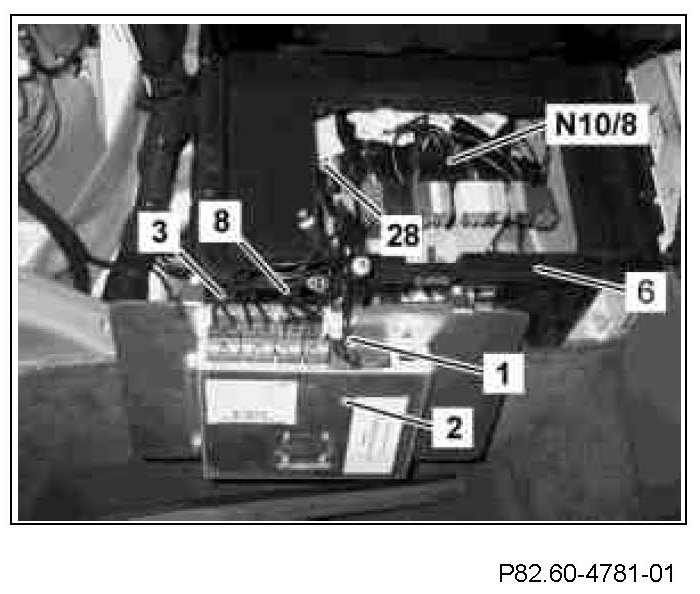

17 Strap down excessive length of digital TV tuner adapter line (1), digital TV tuner antenna line (3), and adapter antenna line (8) of digital TV tuner (2) to a loop (28) next to the rear SAM control unit (N10/8) below right rear luggage box (6).
18 Secure all retrofitted wiring harnesses together with on-board wiring harnesses in place so that they cannot chafe of rattle.

Risk of breakage: Do not kink fiber optical cable, route over sharp edges or bend in radii smaller than 25 mm. Tensile forces on inserts must not exceed 65 N.

Do not crush fiber optical cable, and do not compress with clamps or tie straps.
