AR80.61-P-0020RBS Remove, Install Rear Keyless Go Antenna



AR80.61-P-0020RBS Remove, Install Rear Keyless Go Antenna
- with CODE (889) Keyless-Go
- with CODE (P99) Special model "AMG Black Series"

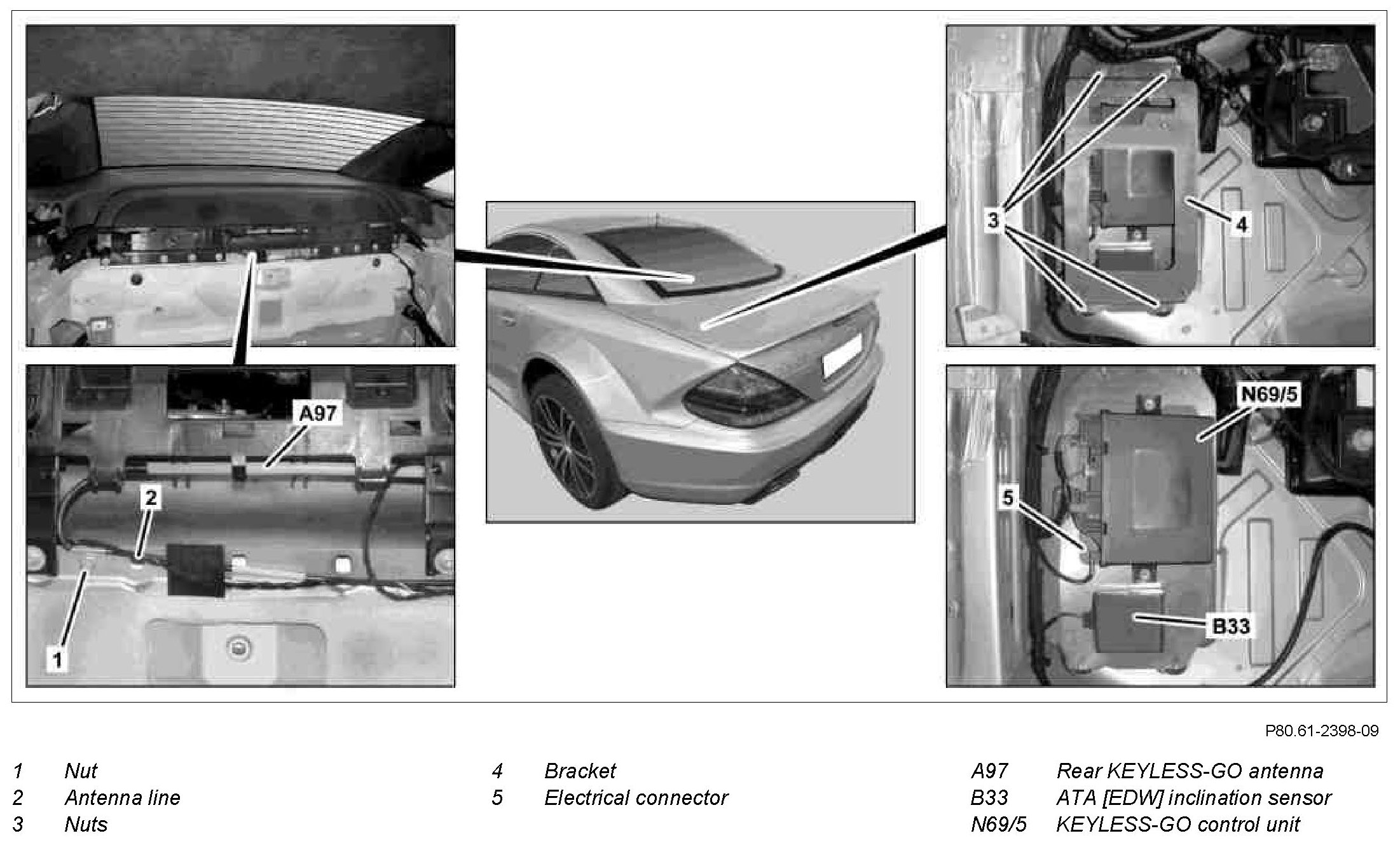

Component Identification:

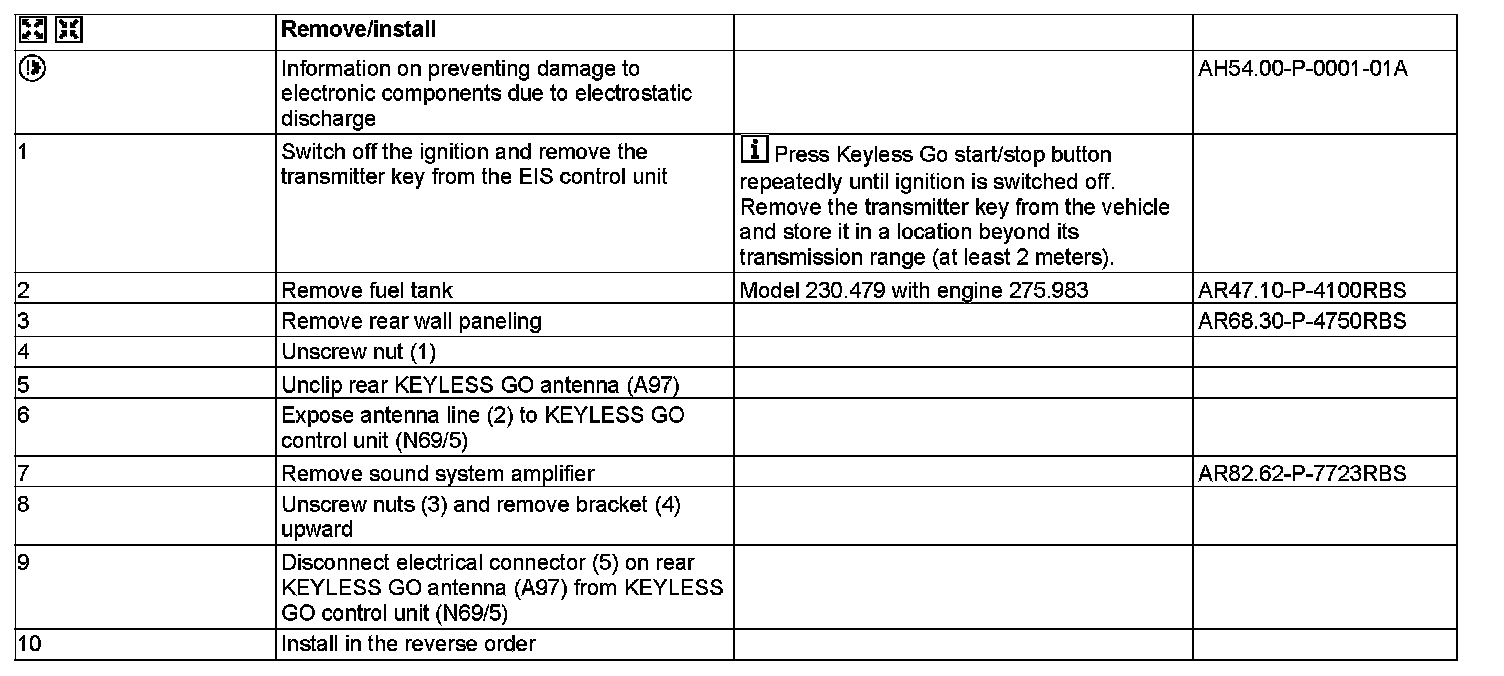

Steps 1 - 10:
