Accessory Control Display: Service and Repair



AR82.85-P-7472RA Remove/Install Operating, Display and Control Unit

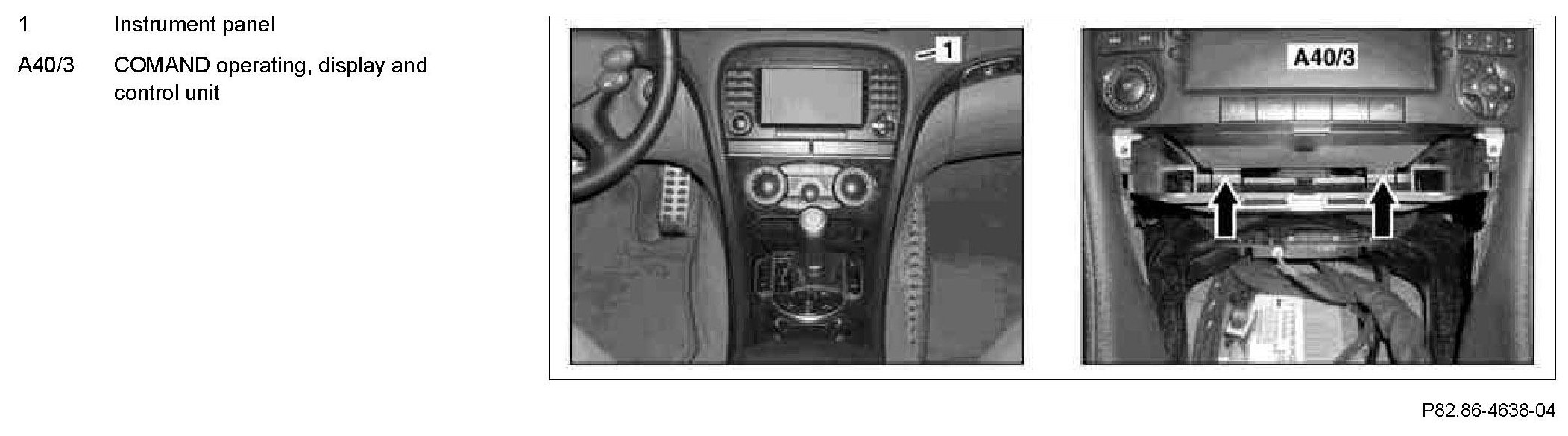

Component Identification:

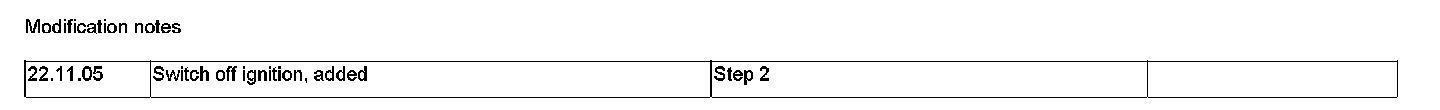

Modification Notes:

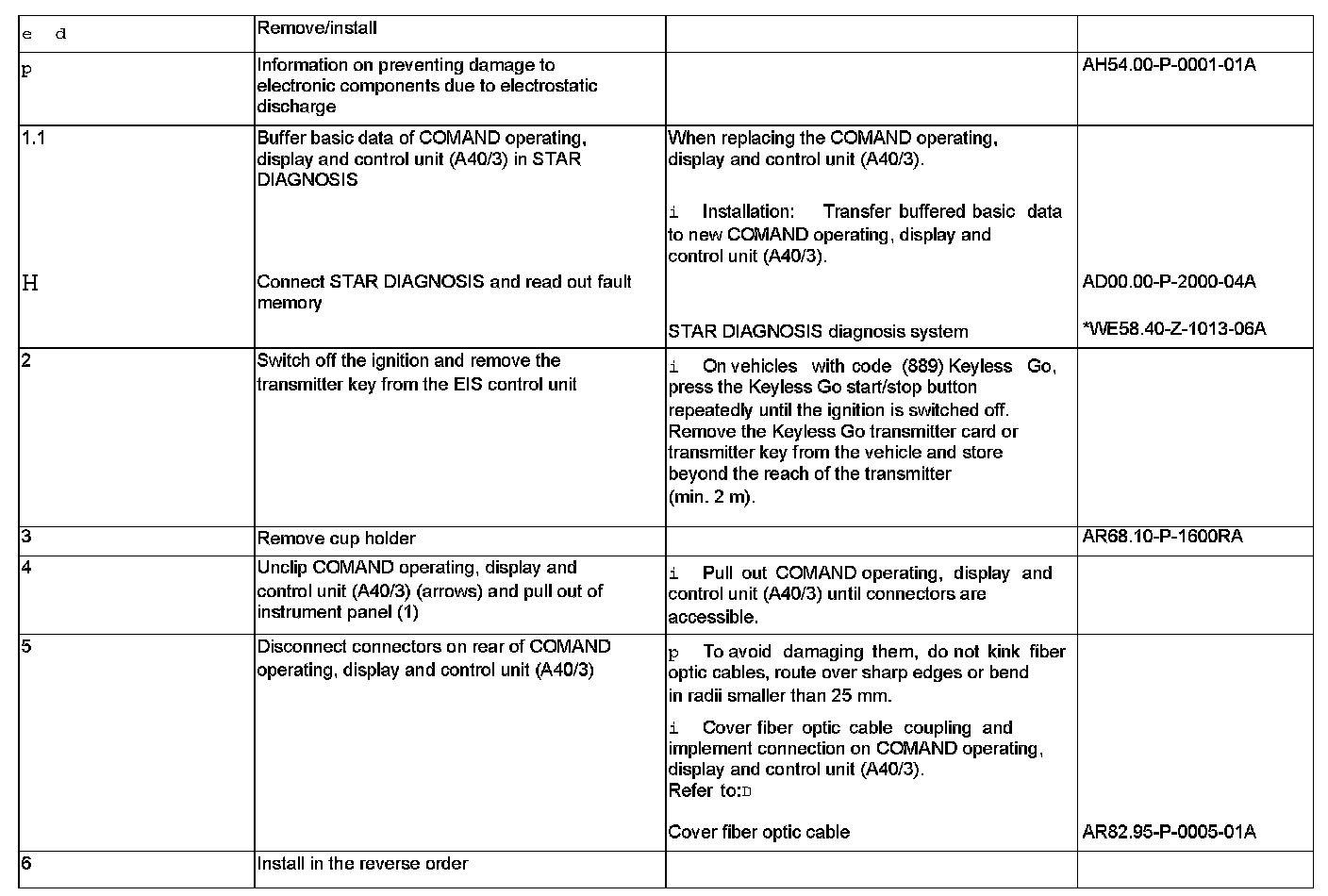

Steps 1.1 - 6:

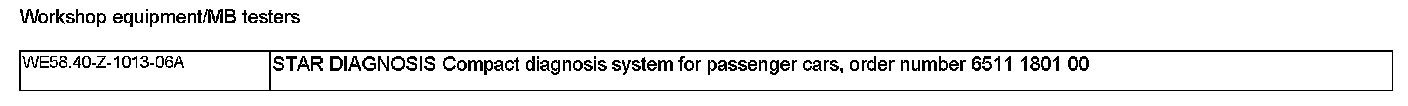

Workshop Equipment/MB Testers:
