GF82.85-P-3114-07RJ Operating, Display Unit With Control Unit, Design



GF82.85-P-3114-07RJ Operating, Display Unit With Control Unit, Design
- with CODE (498) Japan version

Component Identification:

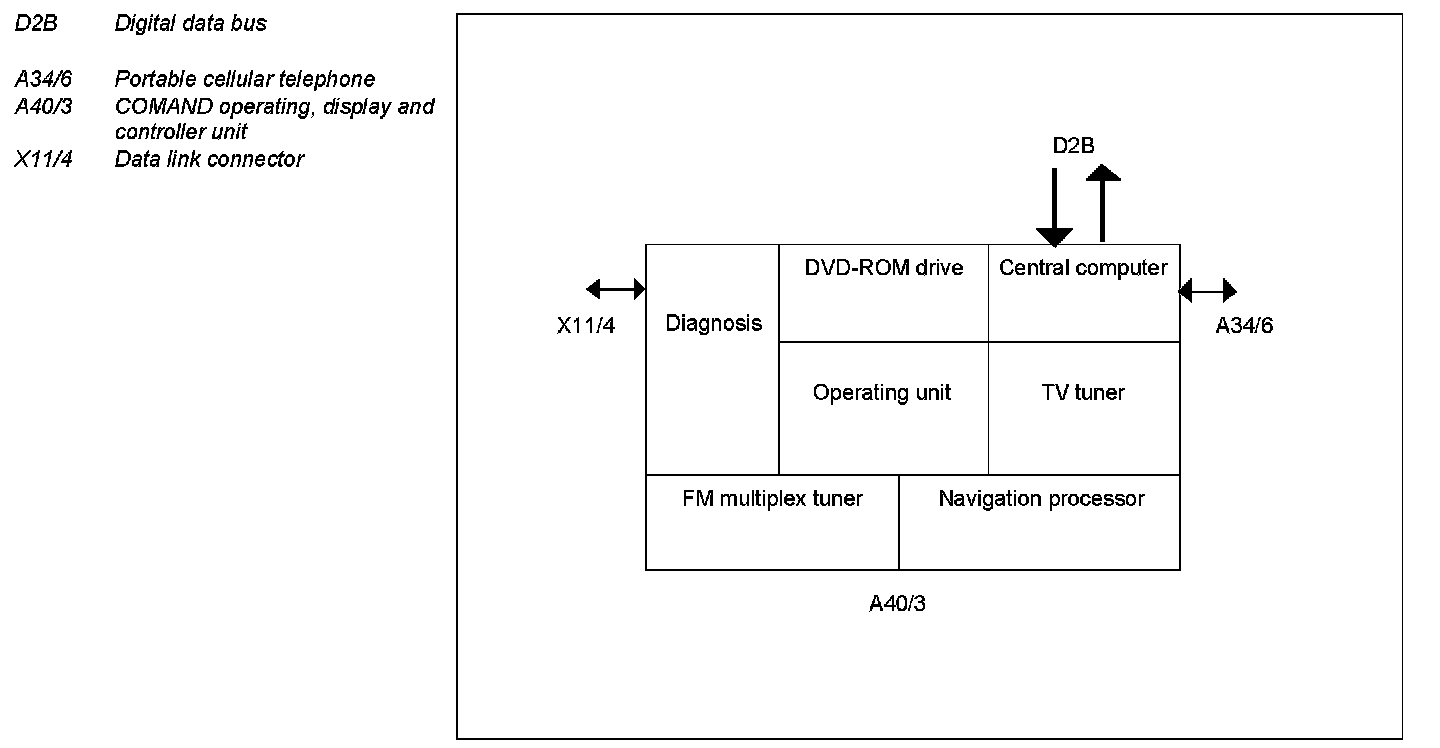

The following systems and components are integrated into the COMAND operating, display and controller unit (A40/3):
^ Graphic compatible color liquid crystal display (LCD)
^ Digital versatile disk (DVD) ROM drive for playing navigation DVDs and audio CDs
^ FM-multiplex tuner (for processing traffic information)
^ TV tuner
^ Navigation processor

The COMAND operating, display and controller unit (A40/3) is also equipped with an "AUX jack" in the glove compartment, which can be used as a connection option for additional audio sources such as, e.g. an MP3 player.

The following interfaces are available in the COMAND operating, display and controller unit (A40/3):
^ Controller Area Network bus, class B (interior) (CAN-B)
^ Digital data bus (D2B)
^ Serial interface for portable CTEL (A34/6)
