Home >> Mercedes Benz >> 2005 >> E 500 4MATIC Wagon (211.283) V8-5.0L (113.969) >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Pivot >> Service and Repair

Wiper Pivot: Service and Repair



AR67.20-P-5146TA Replace Cover On Rear Window Wiper Axle

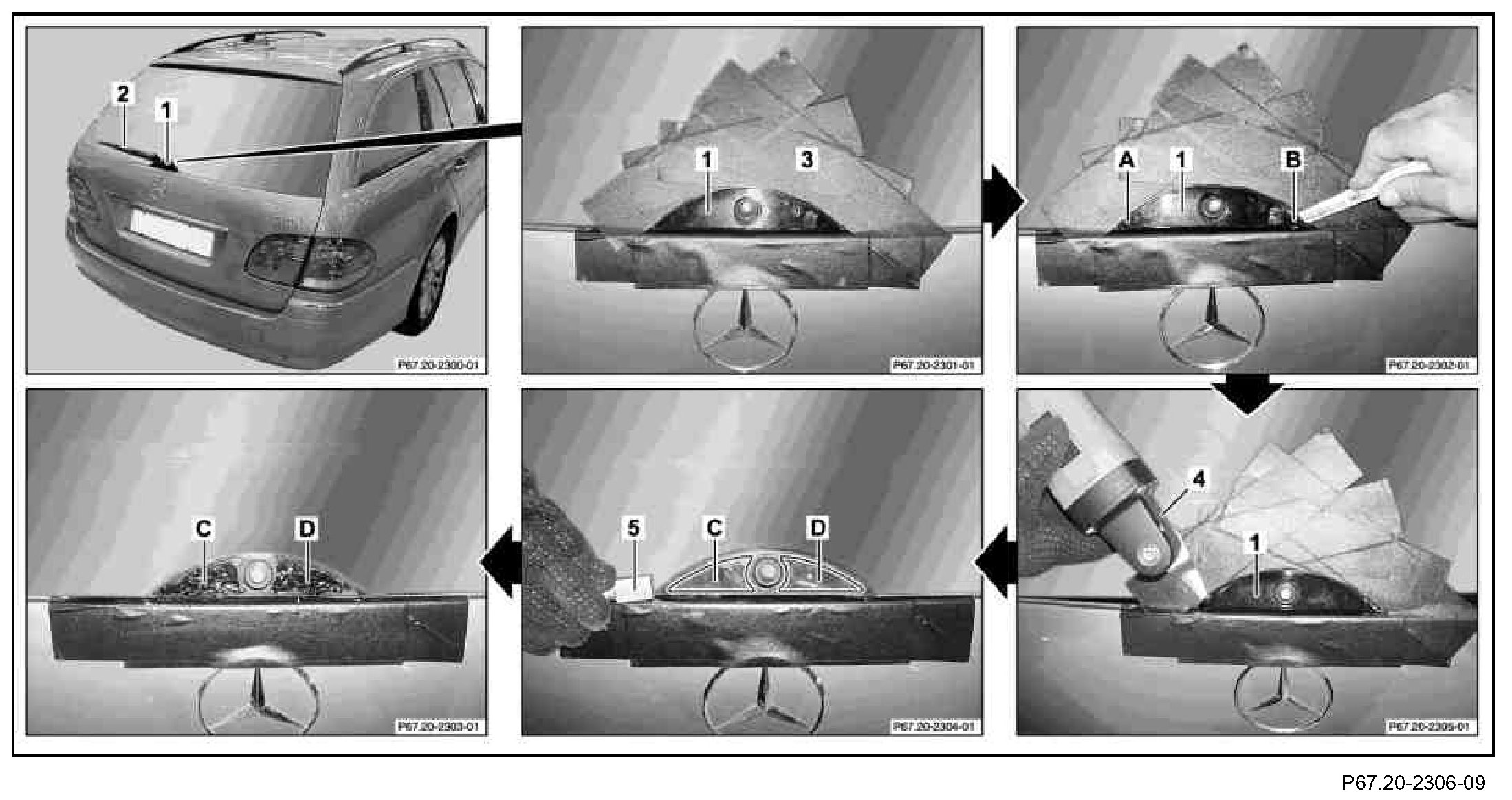

Component Identification:

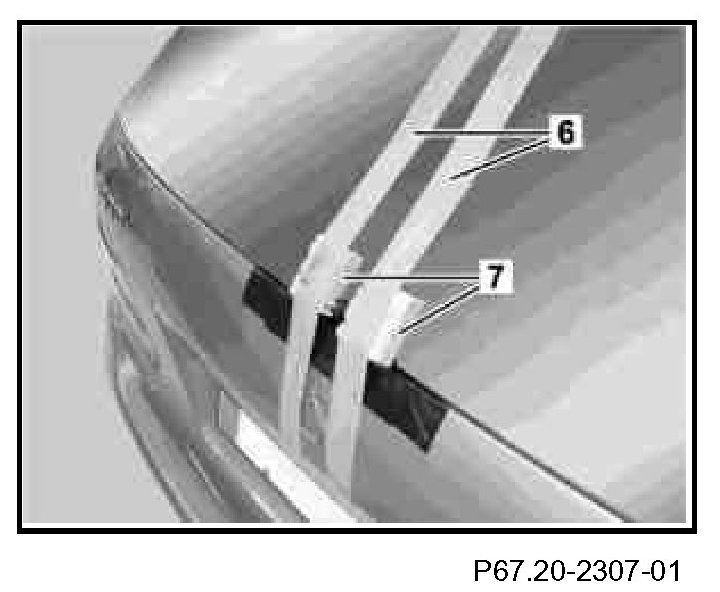

Component Identification:

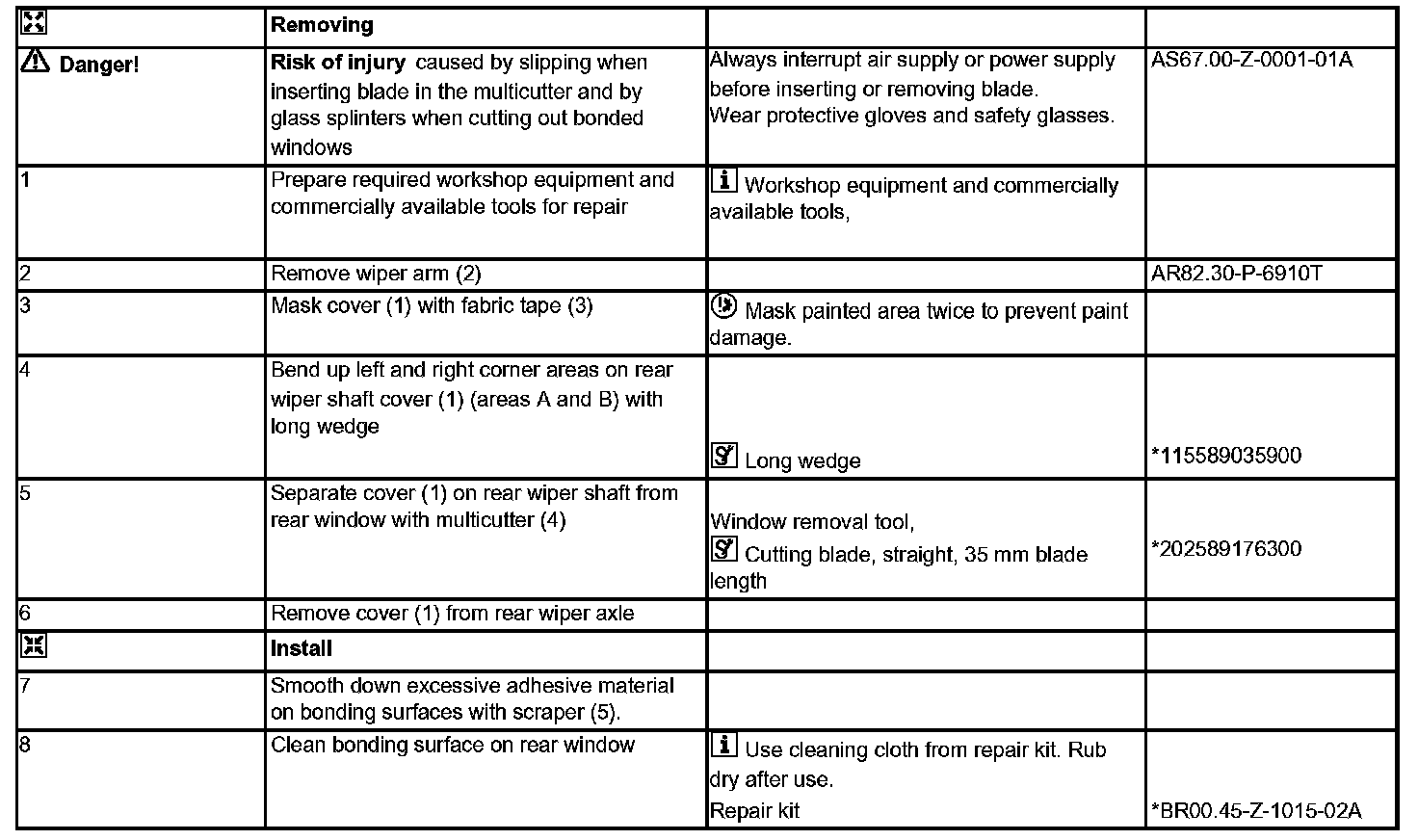

Steps 1 - 8:

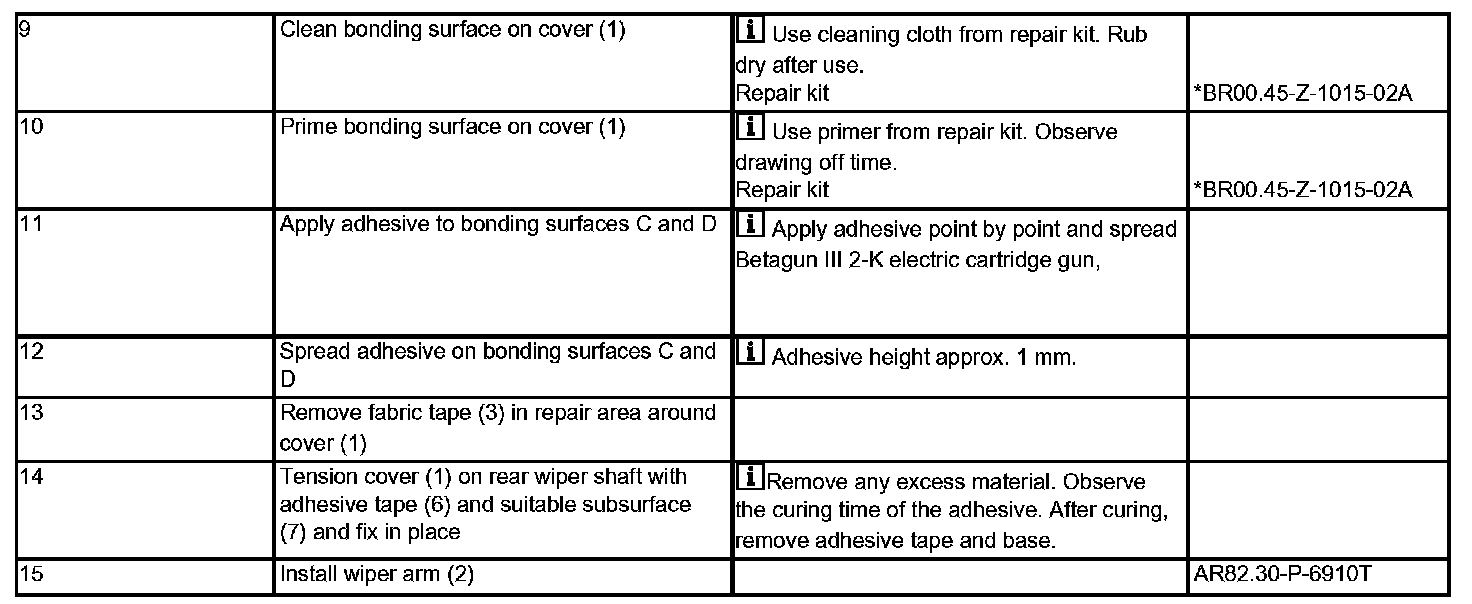

Steps 9 - 15:

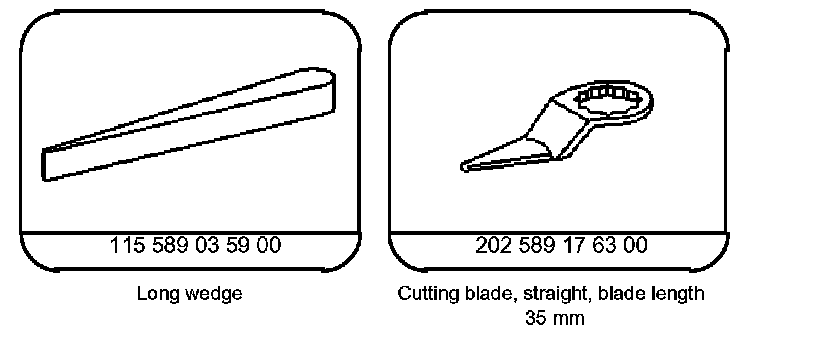

Special Tools:

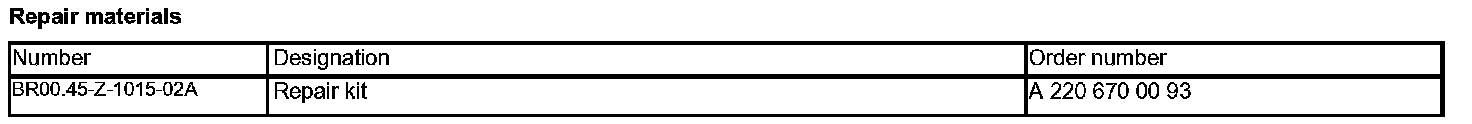

Repair Materials:
