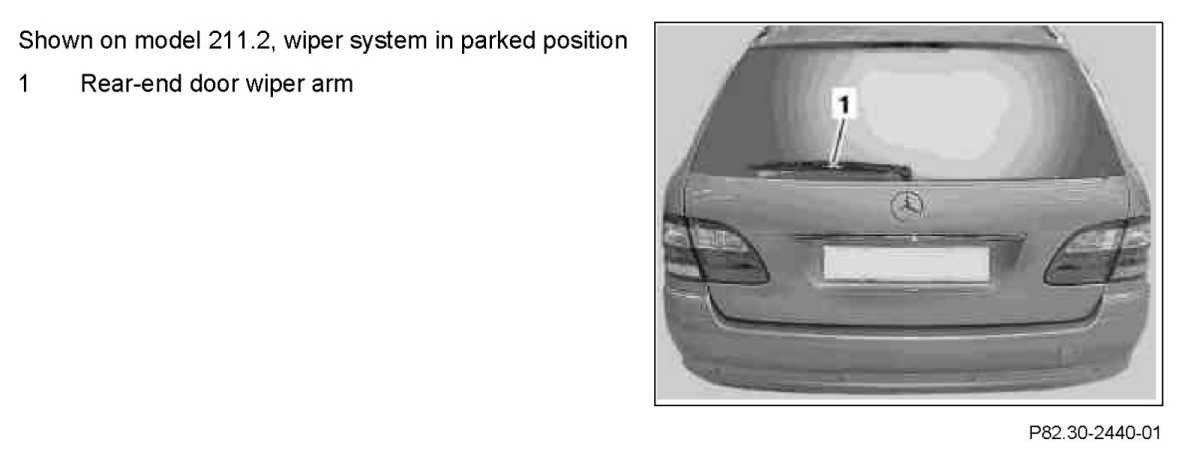

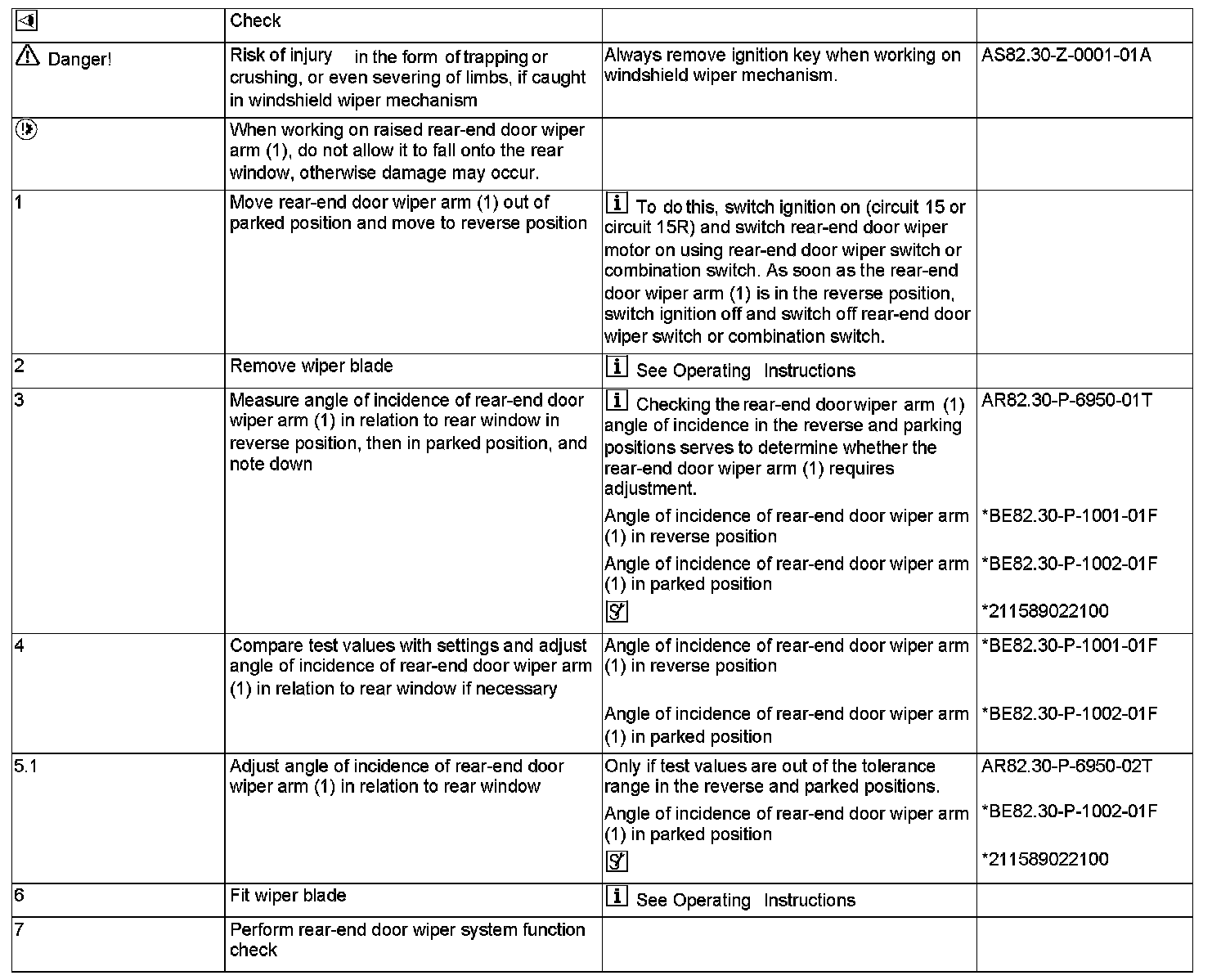

AR82.30-P-6950T Check and Adjust Rear-End Door Wiper Arm



AR82.30-P-6950T Check and Adjust Rear-End Door Wiper Arm

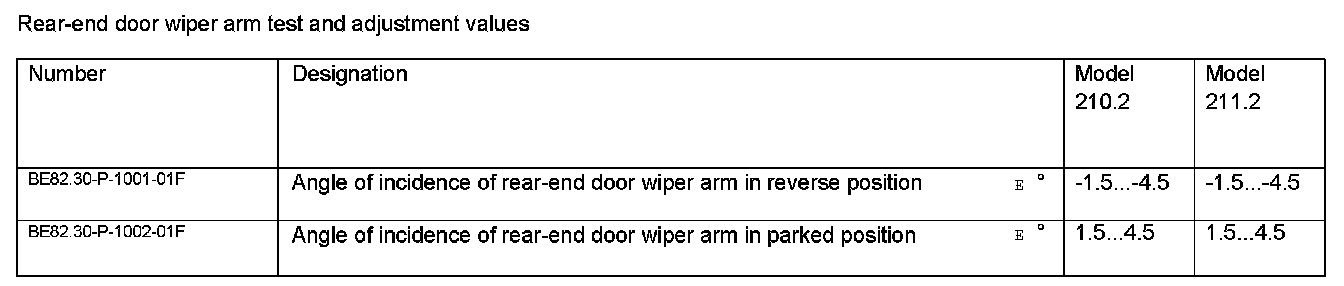

Rear-end Door Wiper Arm Test And Adjustment Values:

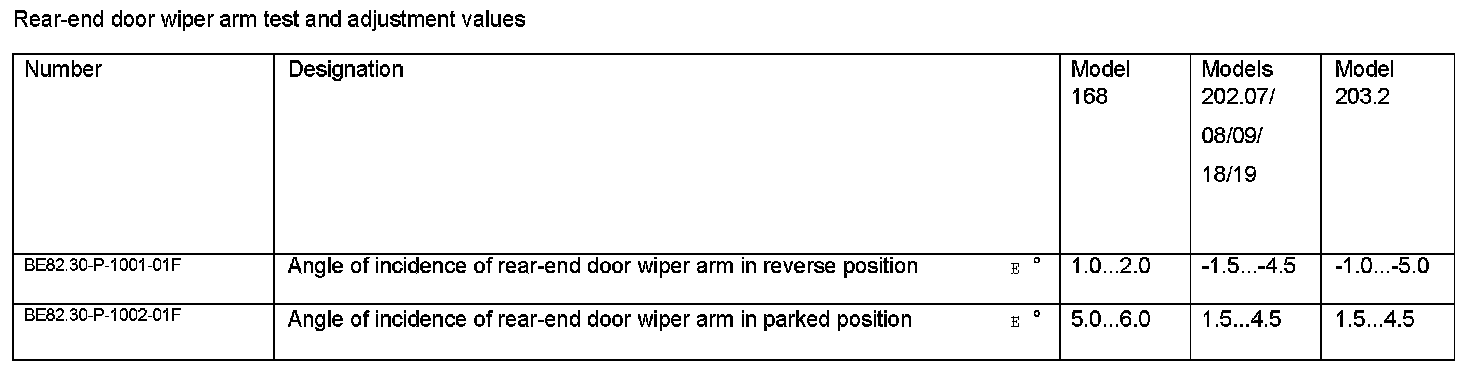

Rear-end Door Wiper Arm Test And Adjustment Values:
