AR82.35-P-6920T Remove/Install Tailgate Spray Nozzle




AR82.35-P-6920T Remove/Install Tailgate Spray Nozzle

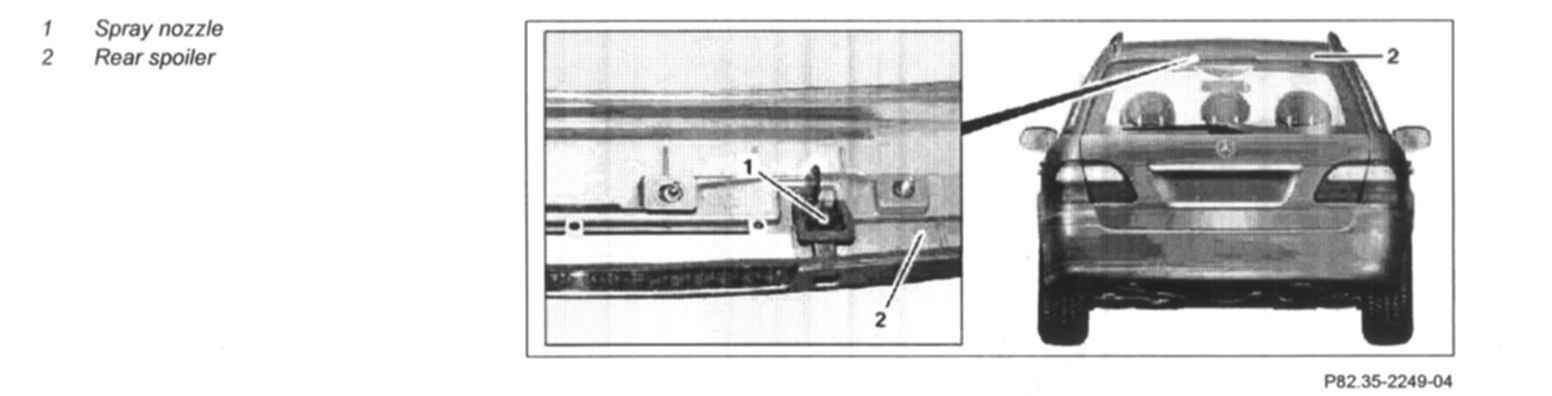

1 Remove rear spoiler (2)
2 Unclip spray nozzle (1) from rear spoiler (2) and remove
3 Install in the reverse order
