AR28.10-P-4150-04P Install Radial Shaft Seal at Rear Axle Output Flange

AR28.10-P-4150-04P Install radial shaft seal at rear axle output flange
Automatic transmission fluids (ATF, Specification 236.10)

Special Tools:

Component Identification:

1 Coat lip of new radial sealing ring with automatic transmission fluid (ATF).

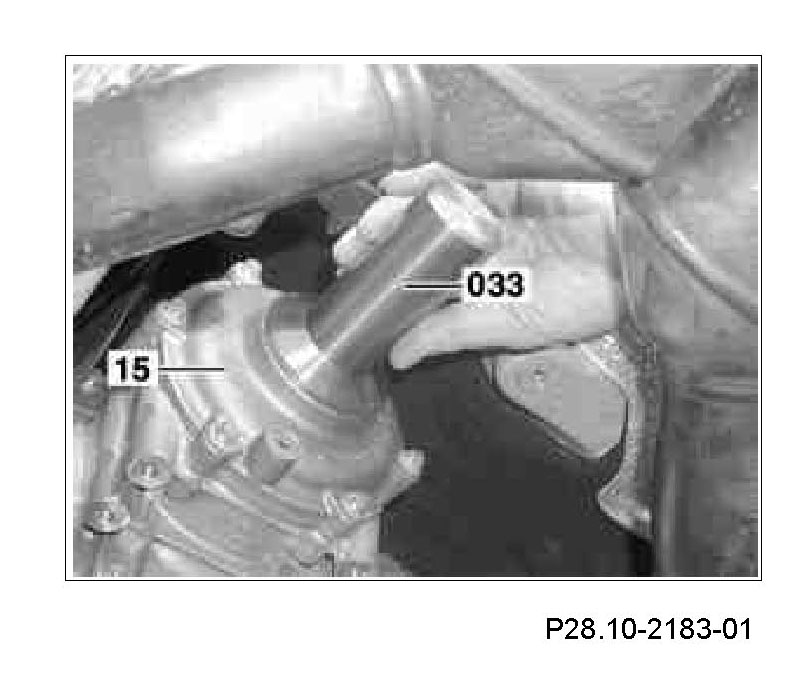

2 Press new radial sealing ring into transmission cover (15) using drift (033).

Shown on model 203
