AR28.10-P-4075T Remove/Installing Radial Shaft Seal at Output Flange to Front Axle
AR28.10-P-4075T Remove/Installing Radial Shaft Seal at Output Flange to Front Axle

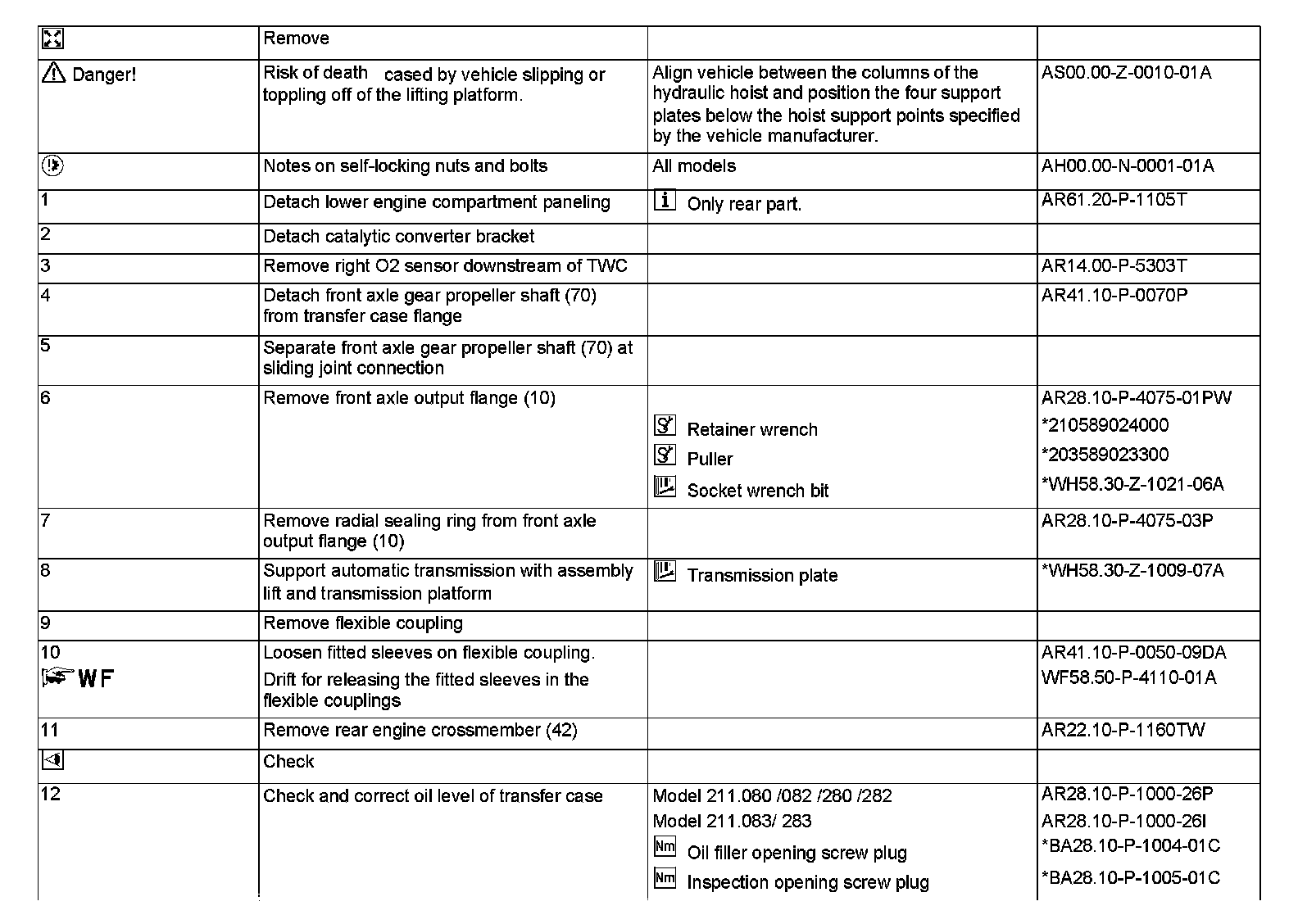

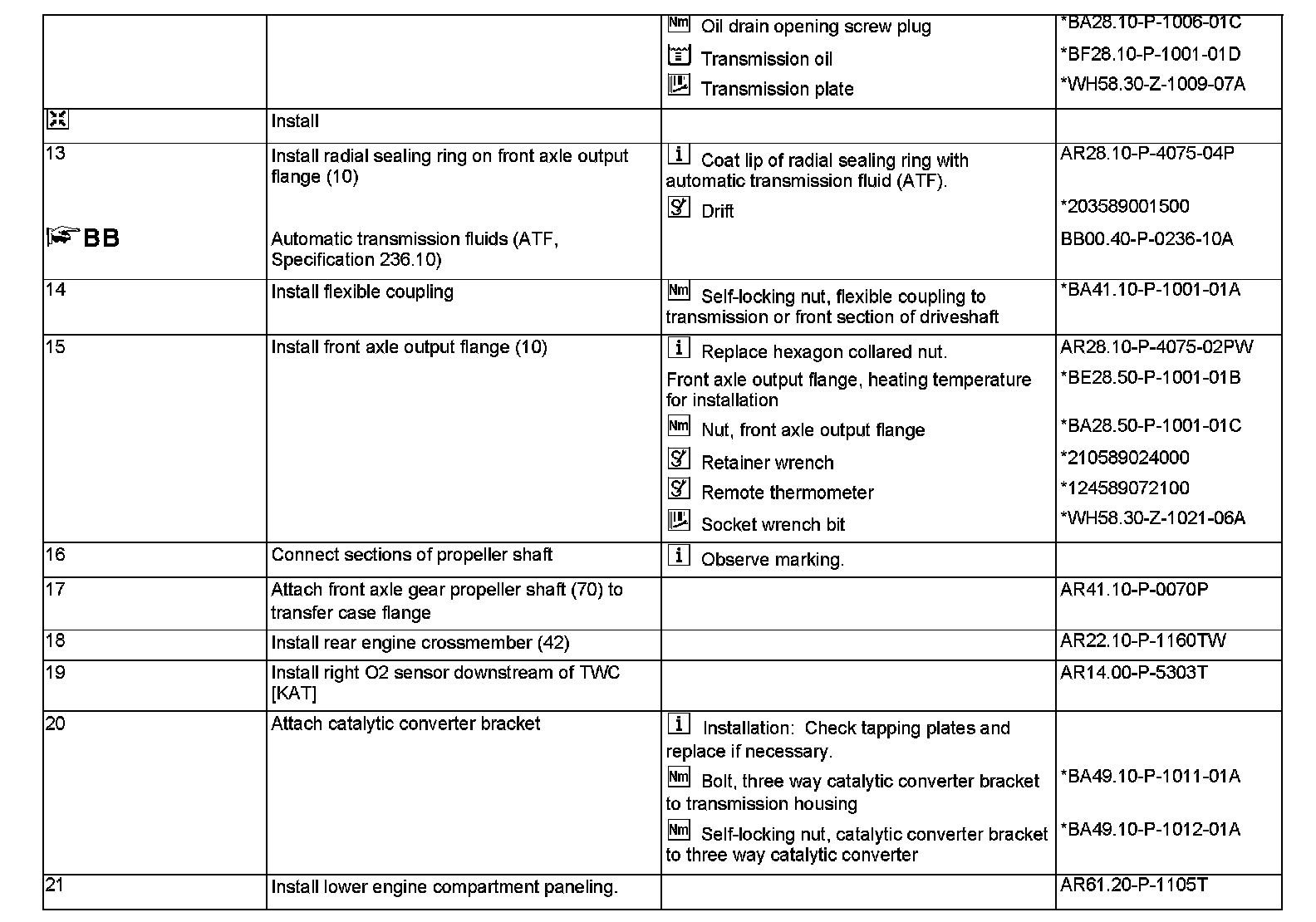

Remove/installing radial shaft seal at output flange to front axle
