AR28.10-P-4075-04P Install Radial Shaft Seal

AR28.10-P-4075-04P Install radial shaft seal
Automatic transmission fluids (ATF, Sheet 236.10)

Special Tools:

Component Identification:

1 Coat lip of new radial sealing ring with automatic transmission fluid (ATF).

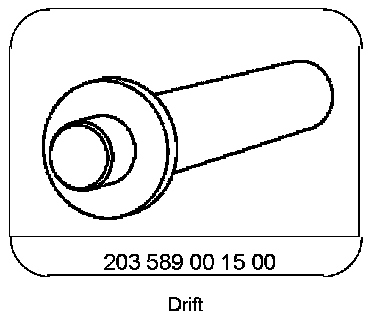

2 Use drift (011) to press radial sealing ring into the transmission housing front section (16a).

Shown on model 203
