AR28.10-P-1000-21P Remove/Install Radial Sealing Rings on Front Section of Transmission Housing

Removing and installing radial sealing rings on front section of transmission housing





Removing

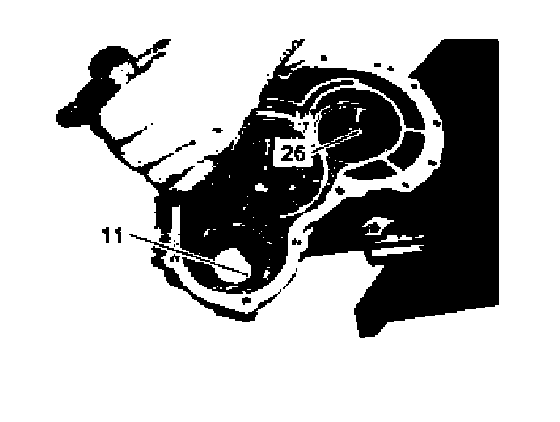

1. Use a suitable tool to drive radial sealing ring (11) out of front axle output flange and radial sealing ring (26) out of rear axle drive output shaft.

Installing





2. Coat lip of new radial sealing ring of front axle output flange with Automatic Transmission Fluid (ATF).

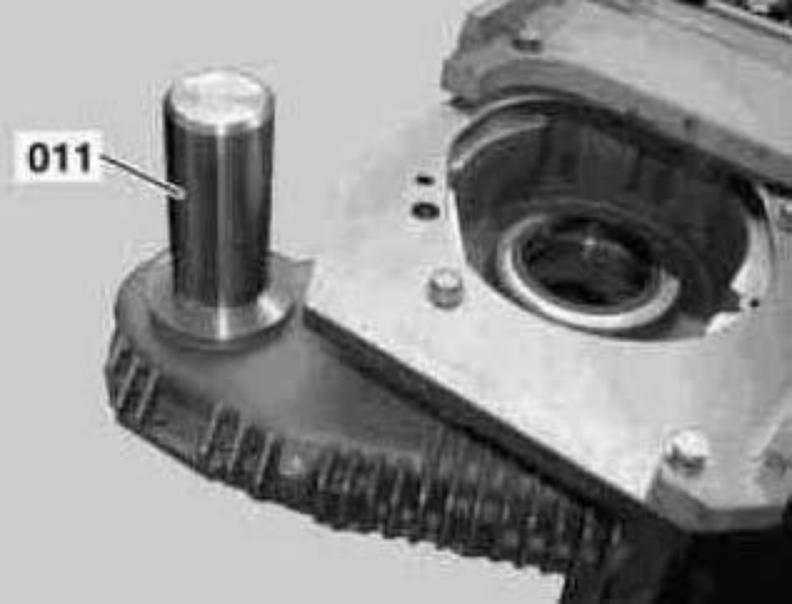

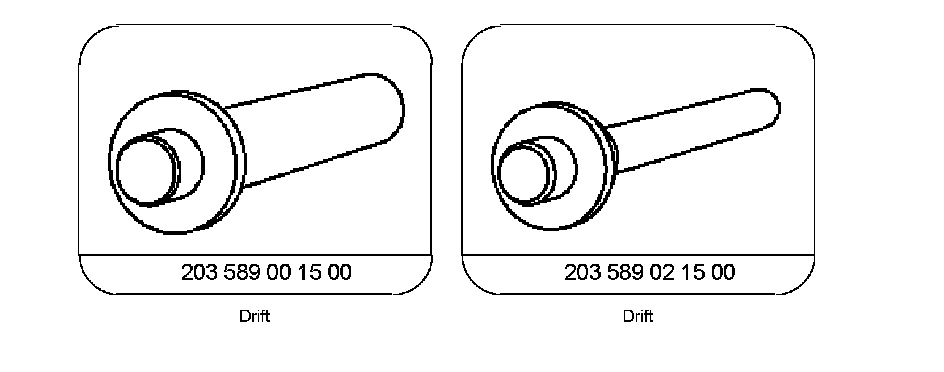

3. Press in radial sealing ring of front axle output flange using drift (011).





4. Coat lip of new radial sealing ring of rear axle drive output shaft with Automatic Transmission Fluid (ATF).

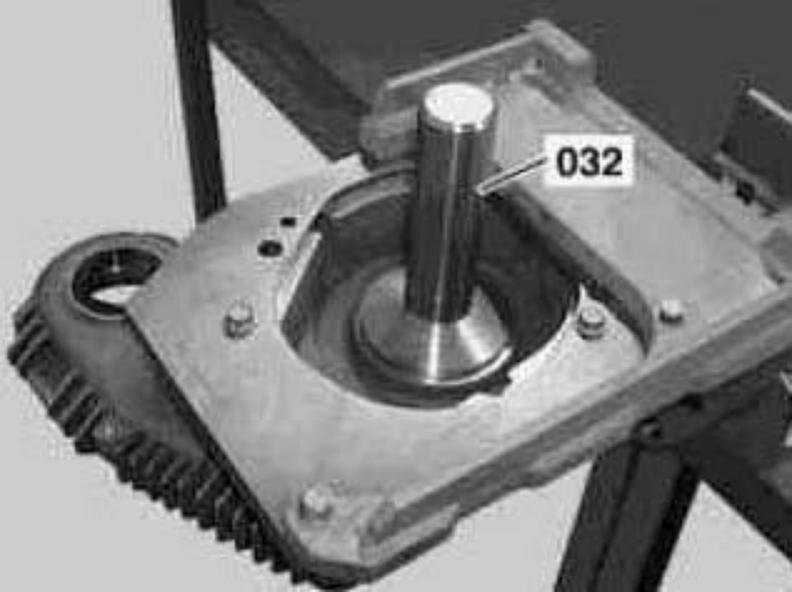

5. Press in radial sealing ring of rear axle drive output shaft using drift (032).
