AR28.10-P-1000-25P Disassembling and Assembling Front Axle Drive Output Shaft



Disassembling and assembling front axle drive output shaft





Disassembling

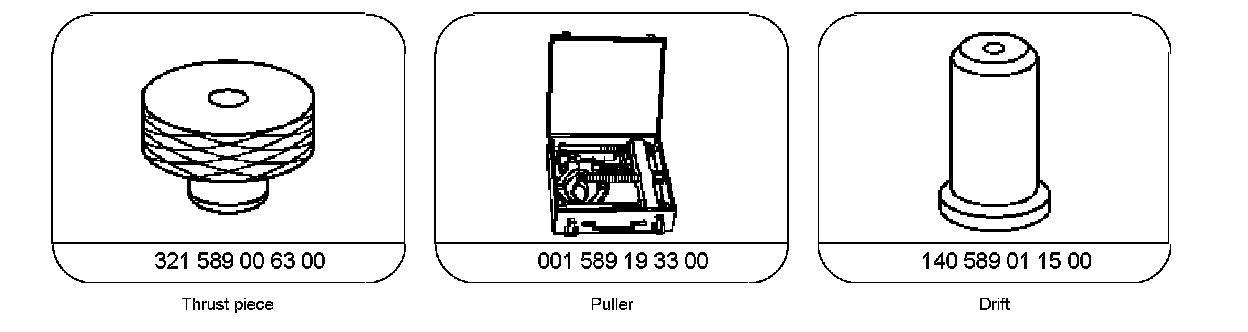

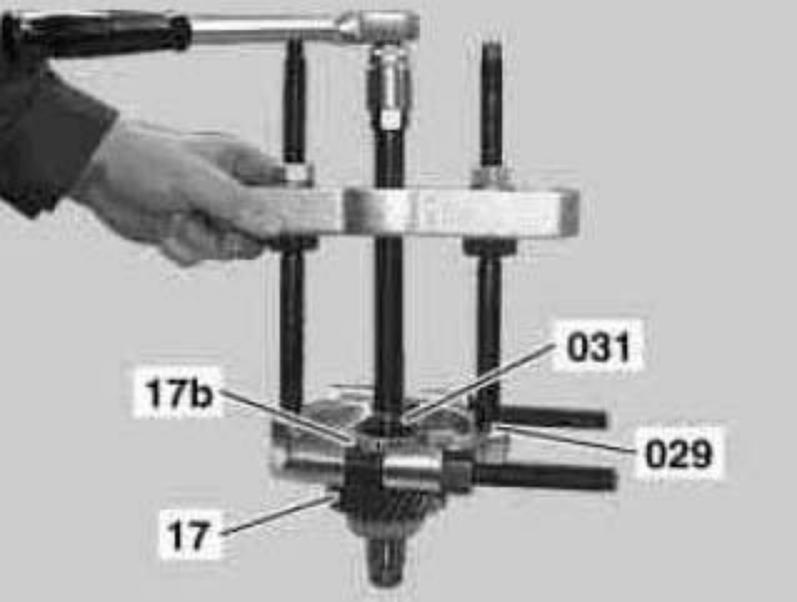

1. Pull tapered roller bearing (17b) off front axle drive output shaft (17) using puller (029). To do this, place thrust piece (031) on front axle drive output shaft (17).

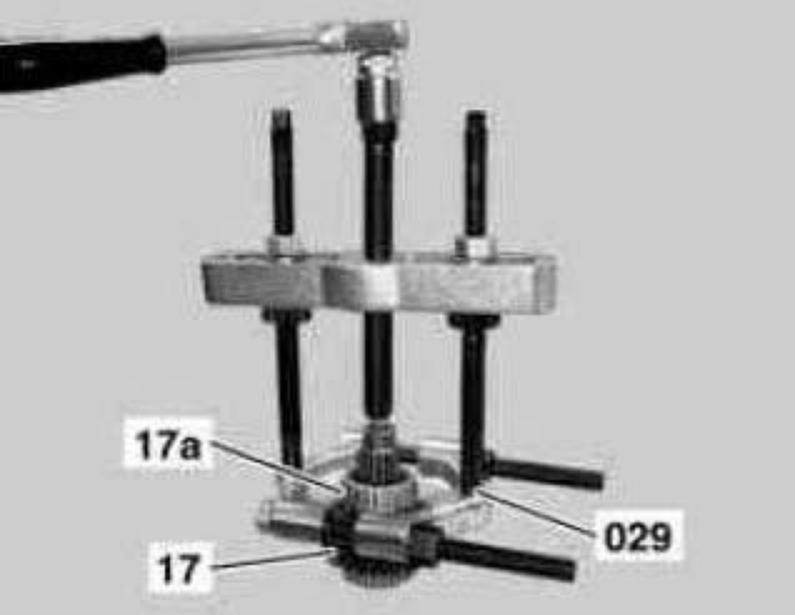

2. Pull tapered roller bearing (17a) off front axle drive output shaft (17) using puller (029).

Assembling





3. Press tapered roller bearing (17a) and tapered roller bearing (17b) onto front axle drive output shaft (17) using drift (015).
