AR28.10-P-1000-22P Disassembling and Assembling Rear Axle Drive Output Shaft

Disassembling and assembling rear axle drive output shaft





Disassembling

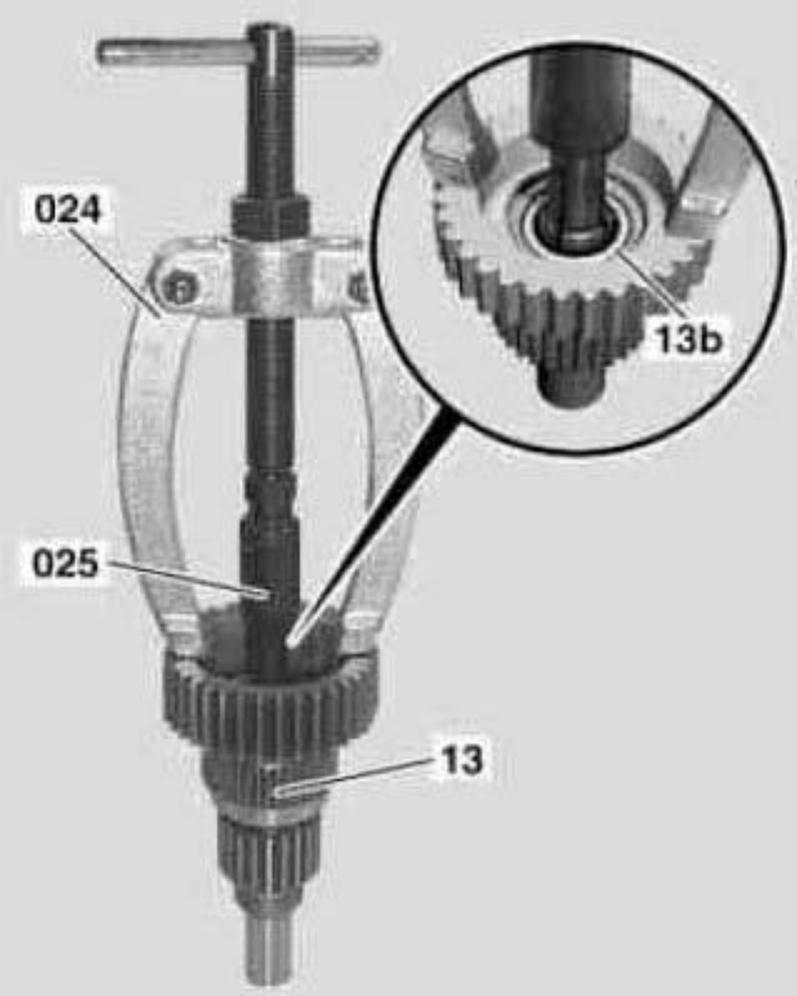

1. Pull large needle bearing (13b) out of rear axle drive output shaft (13).

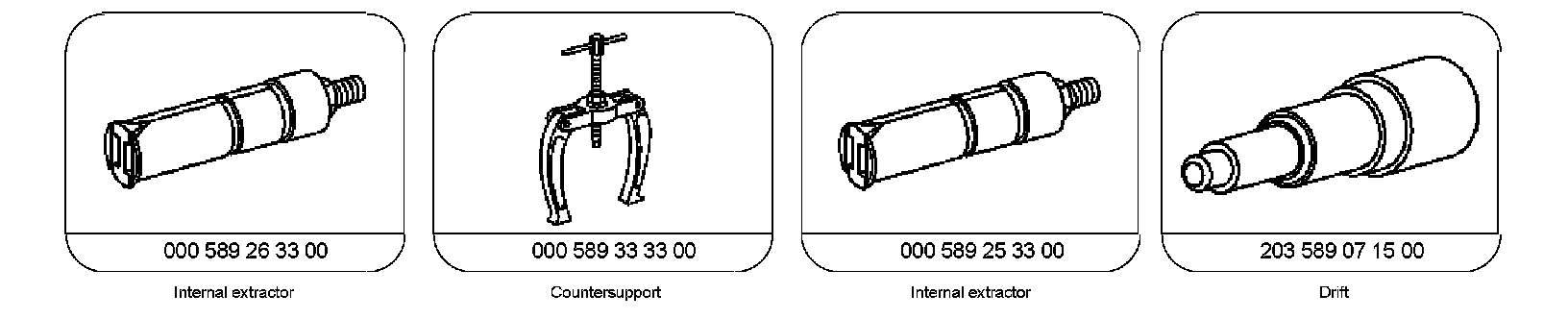

To do this, use internal extractor (025) and countersupport (024).

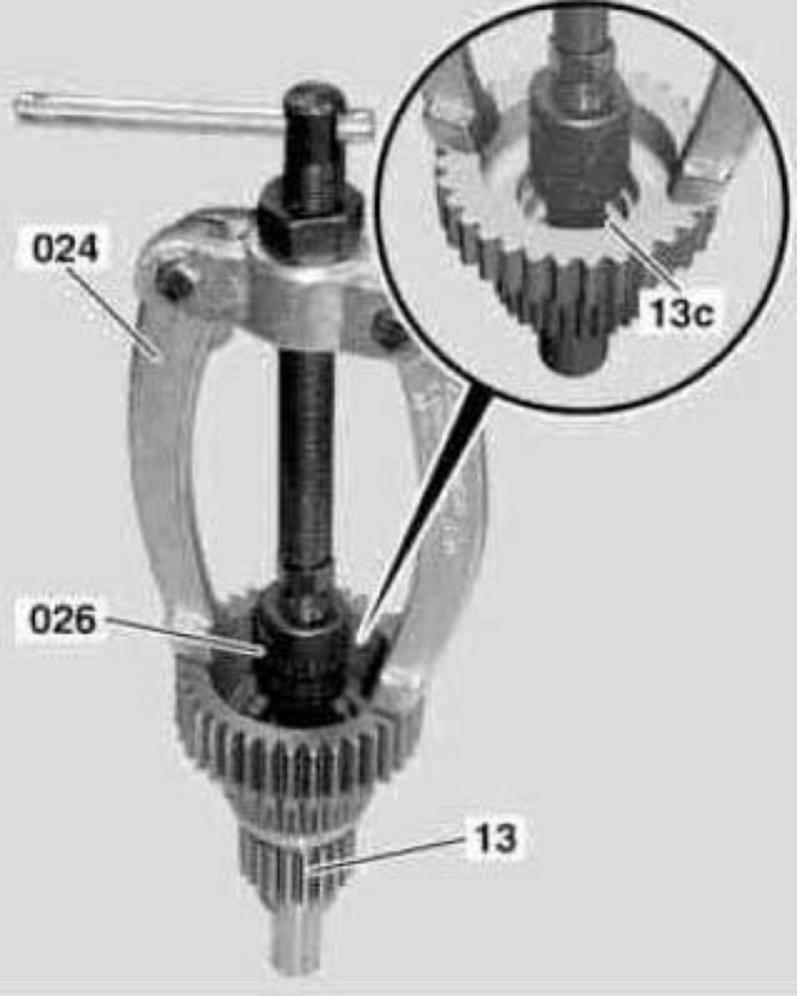

2. Pull small needle bearing (13c) out of rear axle drive output shaft (13).
To do this, use internal extractor (026) and countersupport (024).

Assembling

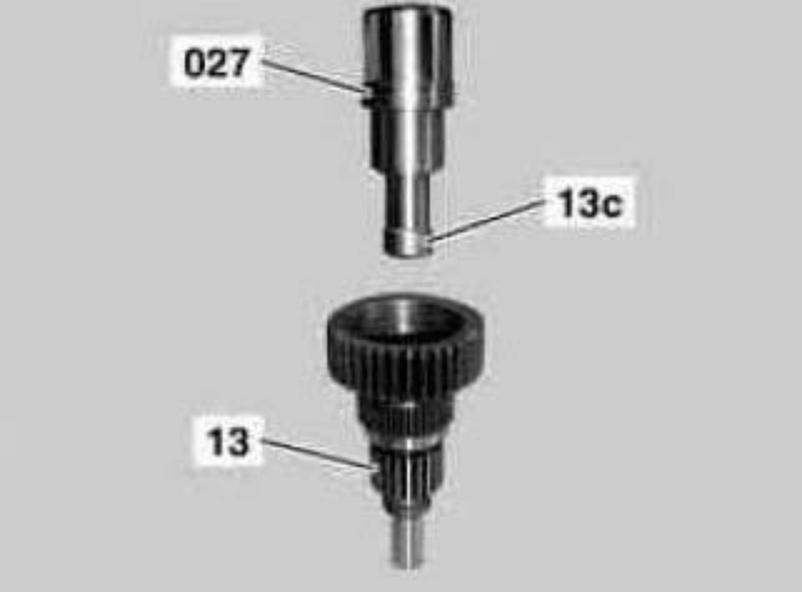

3. Press small needle bearing (13c) into rear axle drive output shaft (13) using drift (027).

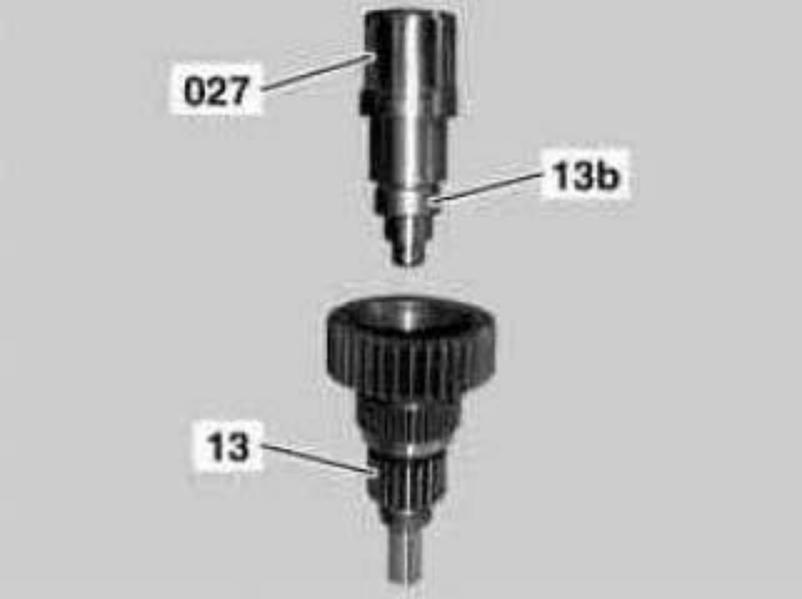

4. Press large needle bearing (13b) into rear axle drive output shaft (13) using drift (13).
