Fluid Pump: Description and Operation

GF28.55-P-3000P Transfer case oil feed, function
- 211.082/282 with TRANSMISSION 722.668
- 211.083/283 with TRANSMISSION 722.672
- 211.087 with TRANSMISSION 722.676


15.03.07 The document has been updated to this date and will no longer be subject to revision.

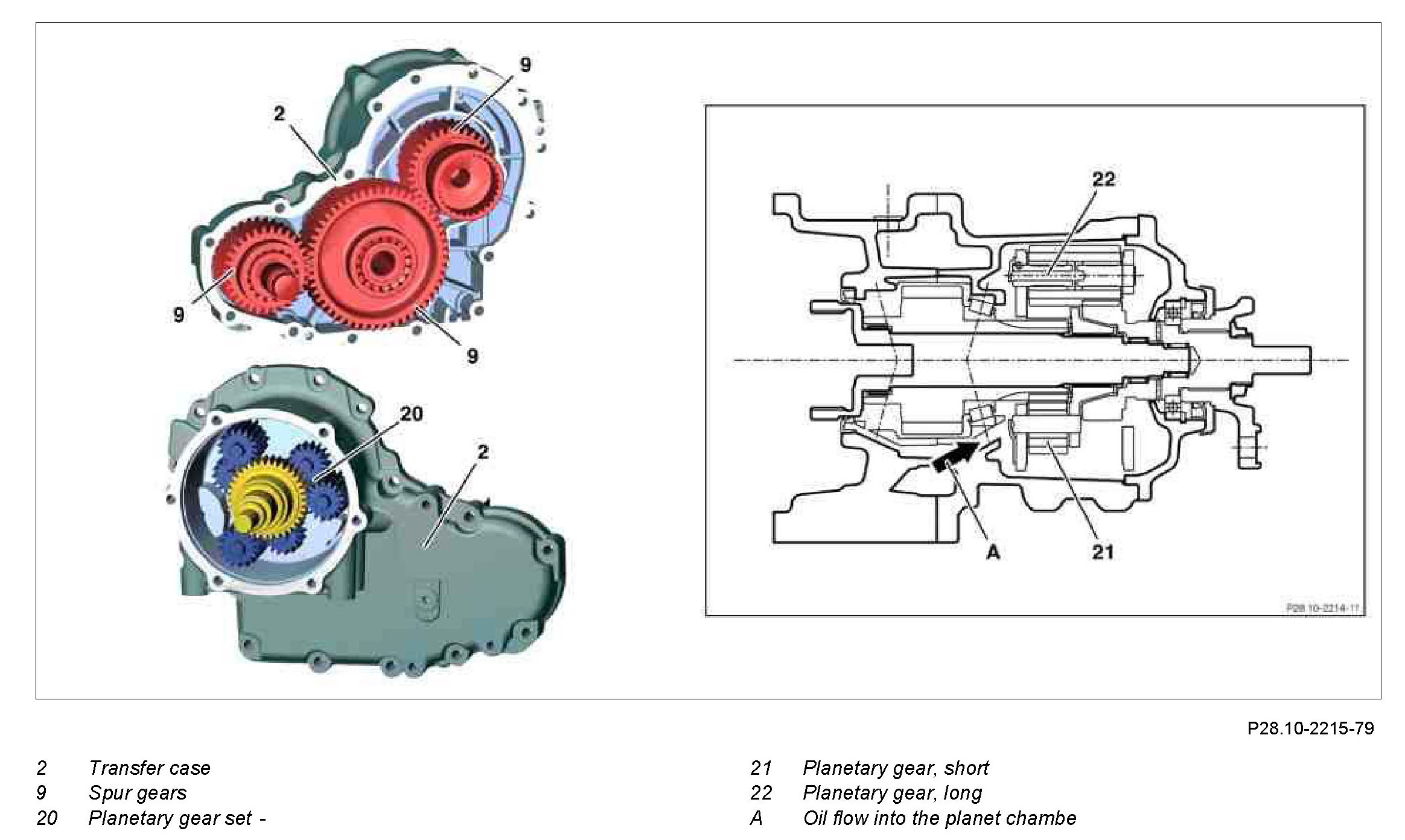

Component Identification:

Oil system
The helical spur gears (9) in addition serve as an oil pump and, via oil ducts (see arrow A) and an oil splasher pipe, supply the bearings and the planetary gear set (20) with lubricating oil. The transfer case (2) receives a lifetime filling (fill for life).
