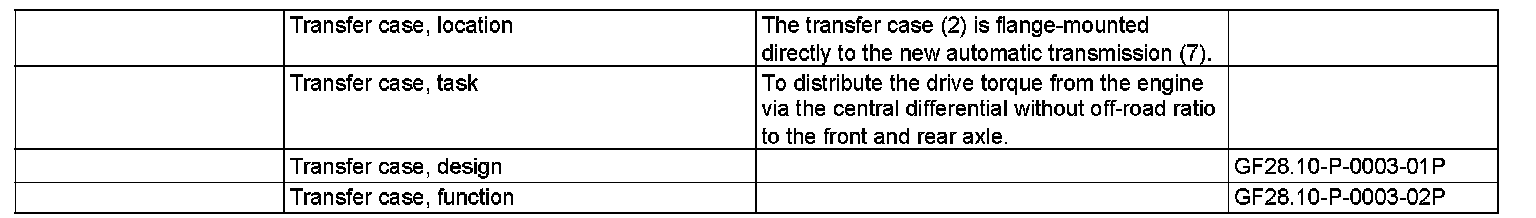

GF28.10-P-0003P Transfer Case, Location/Task/Design/Function



GF28.10-P-0003P Transfer case, location/task/design/function
- 211.082/282 with TRANSMISSION 722.668
- 211.083/283 with TRANSMISSION 722.672
- 211.087 with TRANSMISSION 722.676

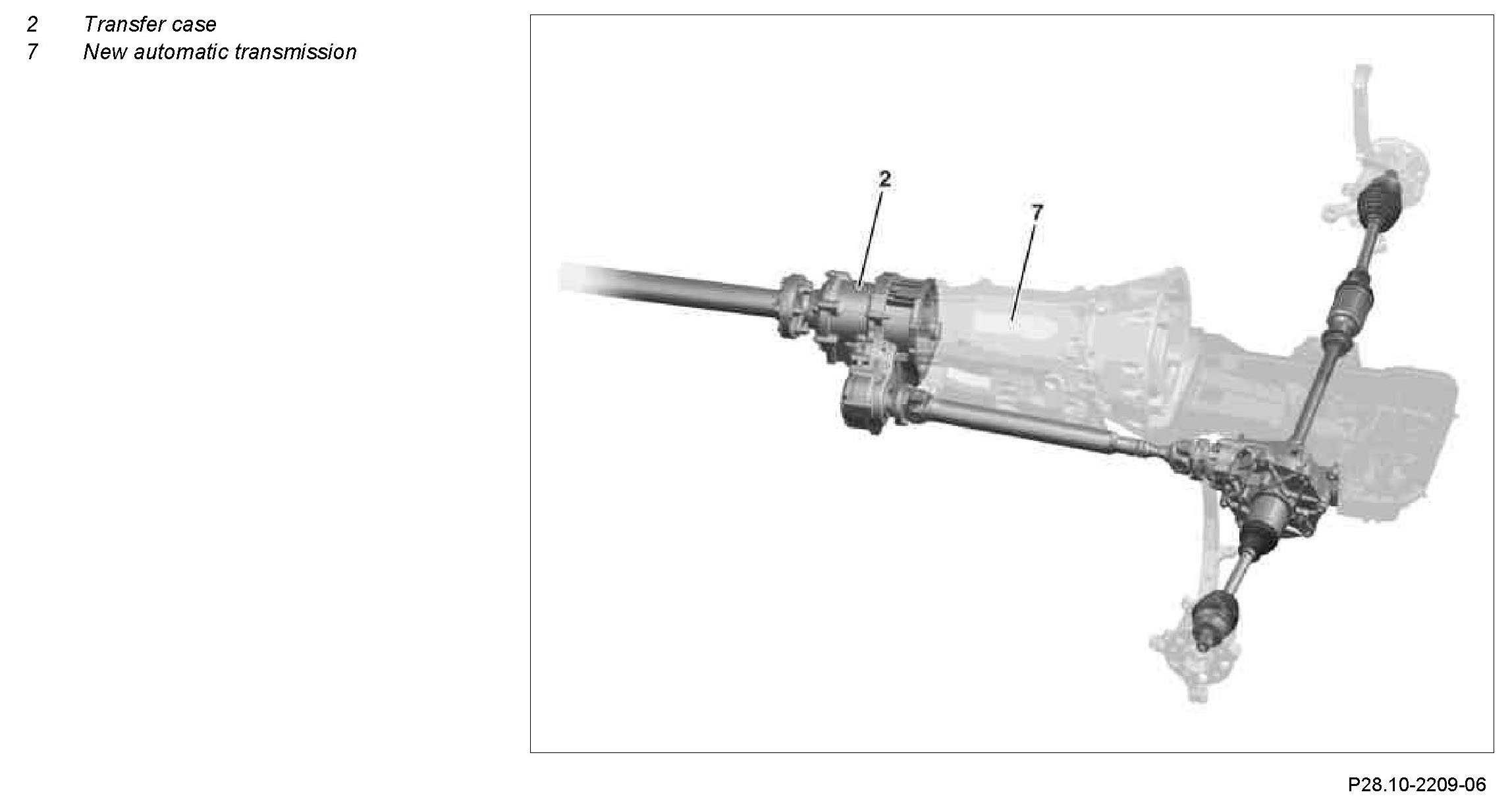

Component Identification:
