AR33.20-P-0315I Remove/Install Front Axle Shaft Flange and Double-Row Angular Ball Bearing



AR33.20-P-0315I Remove/install front axle shaft flange and double-row angular ball bearing

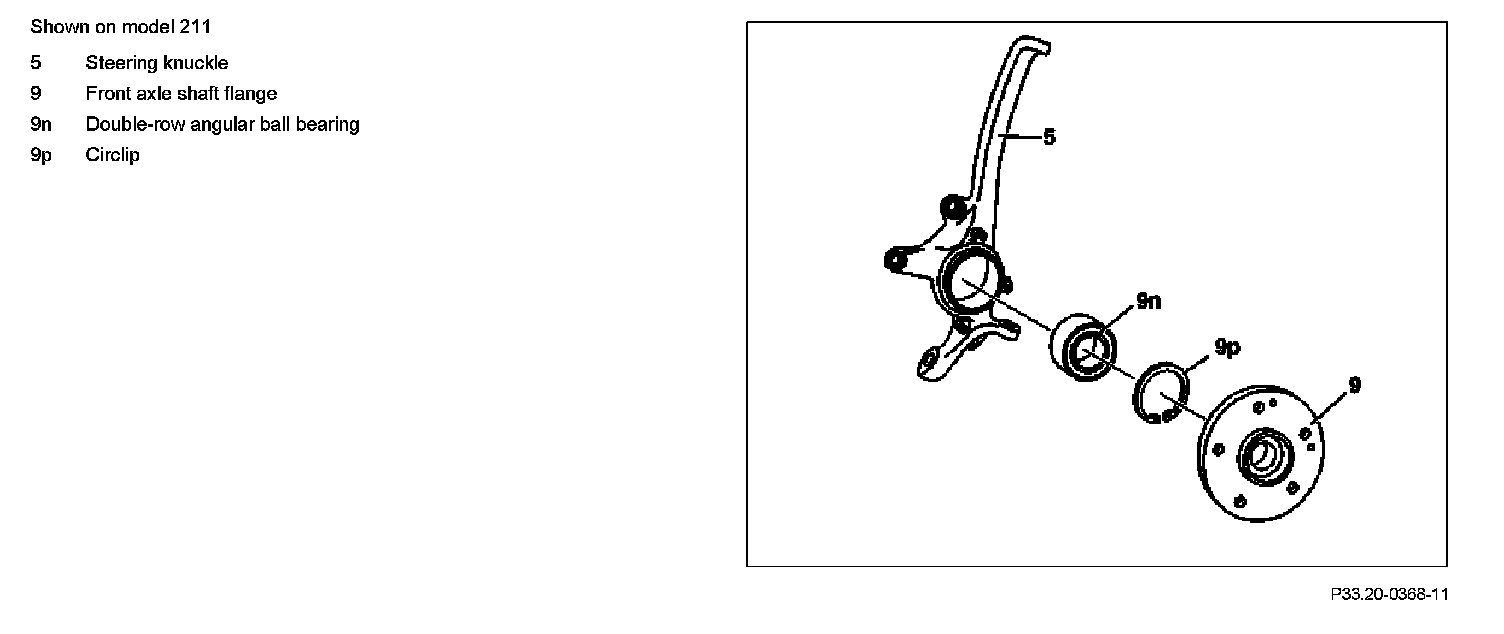

Component Identification:

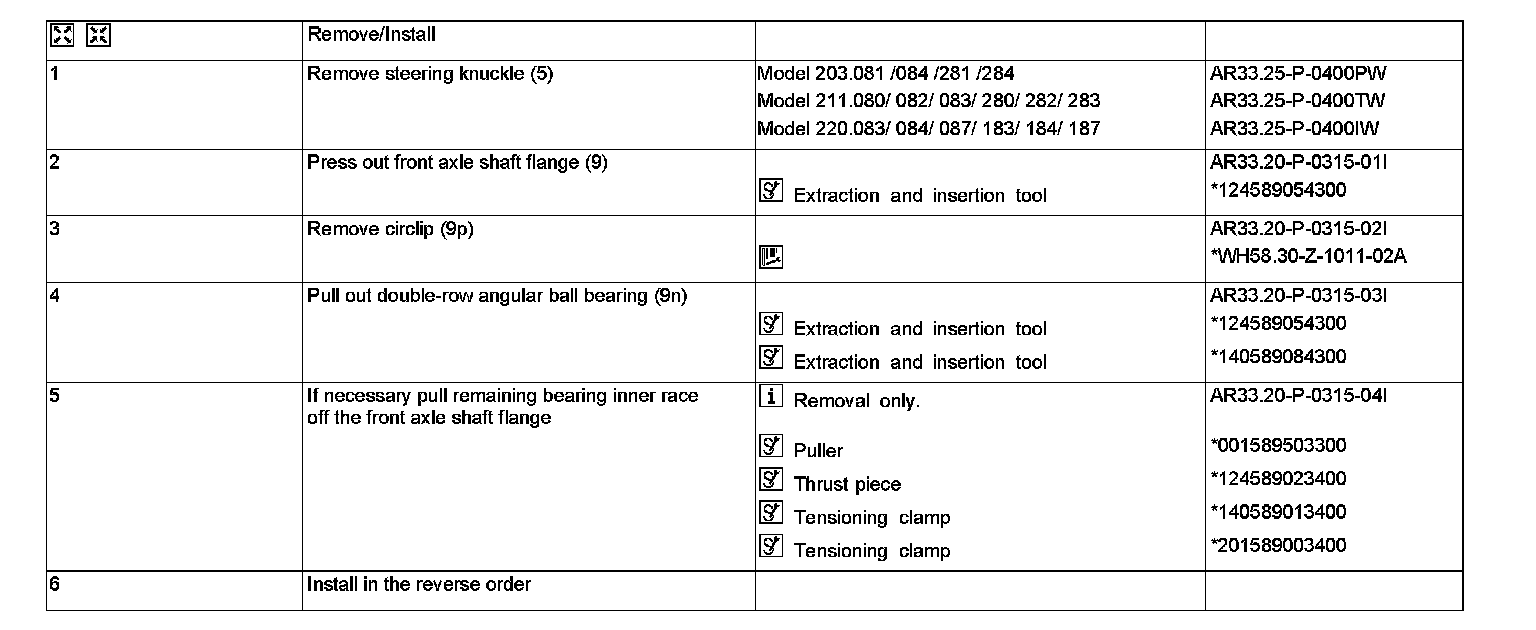

Steps 1 - 6:

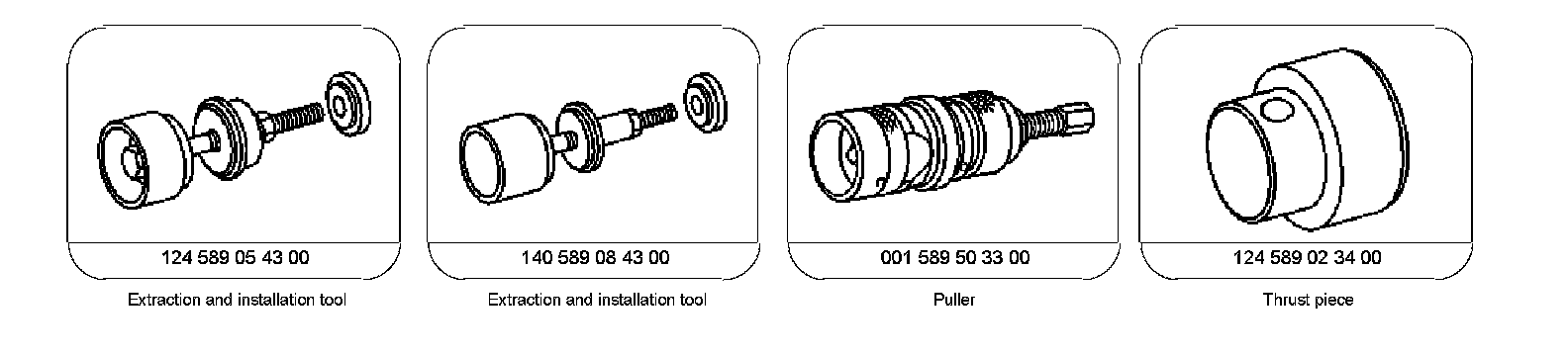

Special Tools:

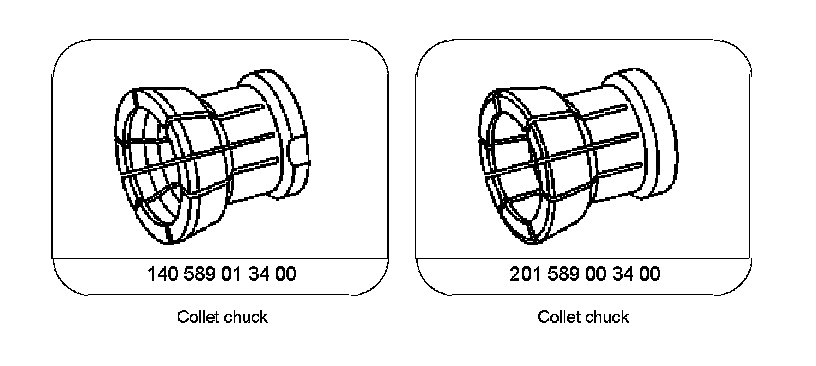

Special Tools:

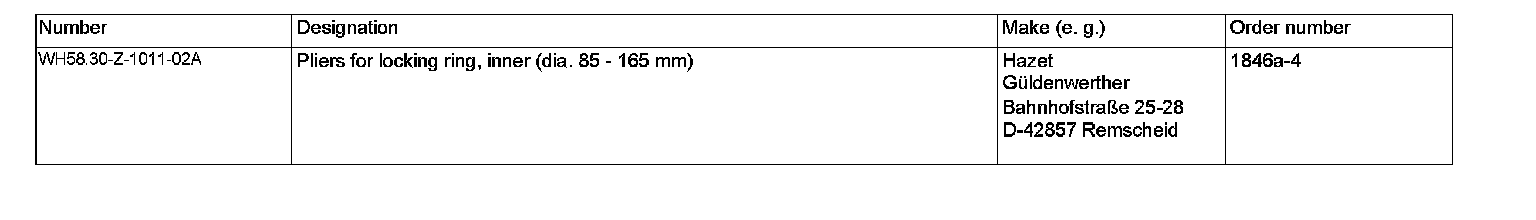

Commercially Available Tools:
