Procedures

AR33.20-P-0315-04I Pull Inner Bearing Race Off Front Axle Shaft Flange





124 589 02 34 00
Thrust piece





001 589 50 33 00
Puller





140 589 01 34 00
Chuck





201 589 00 34 00
Chuck





140 589 00 34 00
Chuck

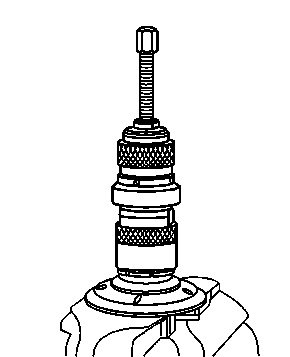

1 Clamp front axle shaft flange (9) into vise using aluminum jaws.
2 Place thrust piece (014b) onto front axle shaft flange (9).





3 Screw clamping pliers onto puller and tighten.
With model 203 use clamping pliers 201 589 00 34 00.
On model 211, 220 use clamping pliers 140 589 01 34 00.
On model 169, 245 use clamping pliers 140 589 00 34 00.
4 Push pulling device completely over the bearing inner race. At the upper grooves, clamp the clamping pliers over the conical sleeve of the puller.
5 Using the pulling device, pull the bearing inner race off the front axle shaft flange.
