AR35.31-P-0530TA Replace Radial Seal Ring on Drive Pinion (Rear Axle Center Assembly Installed)

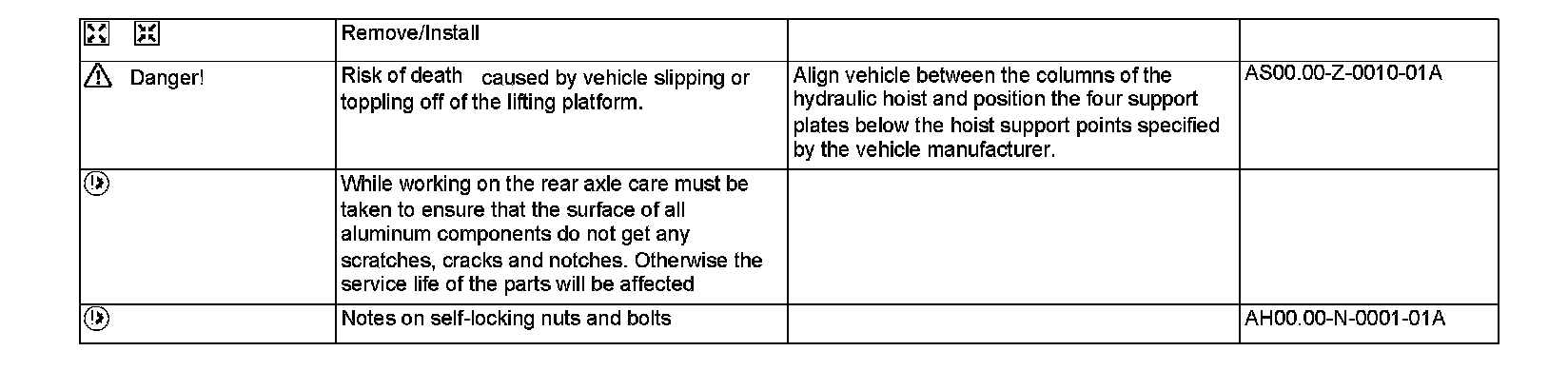

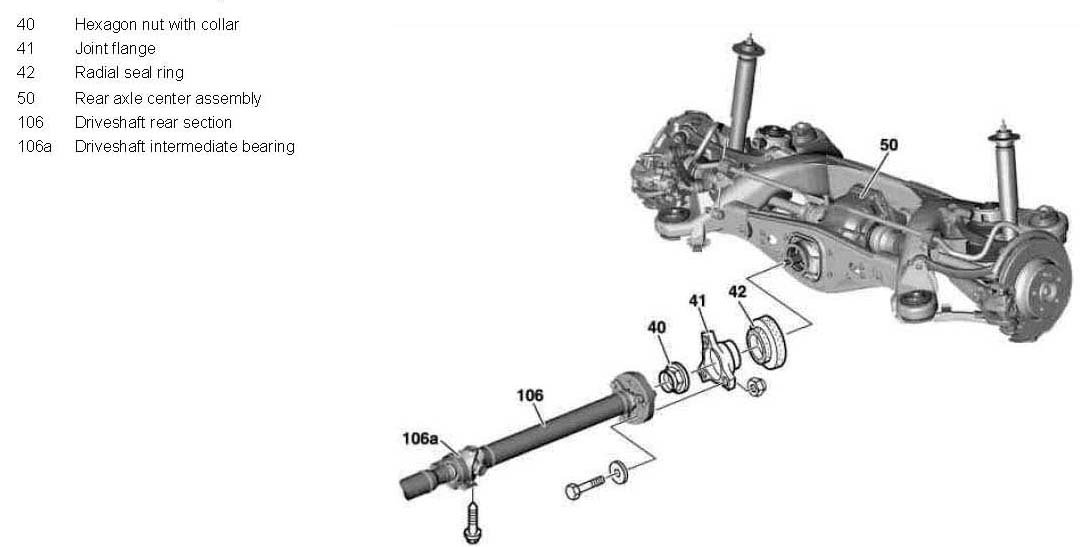

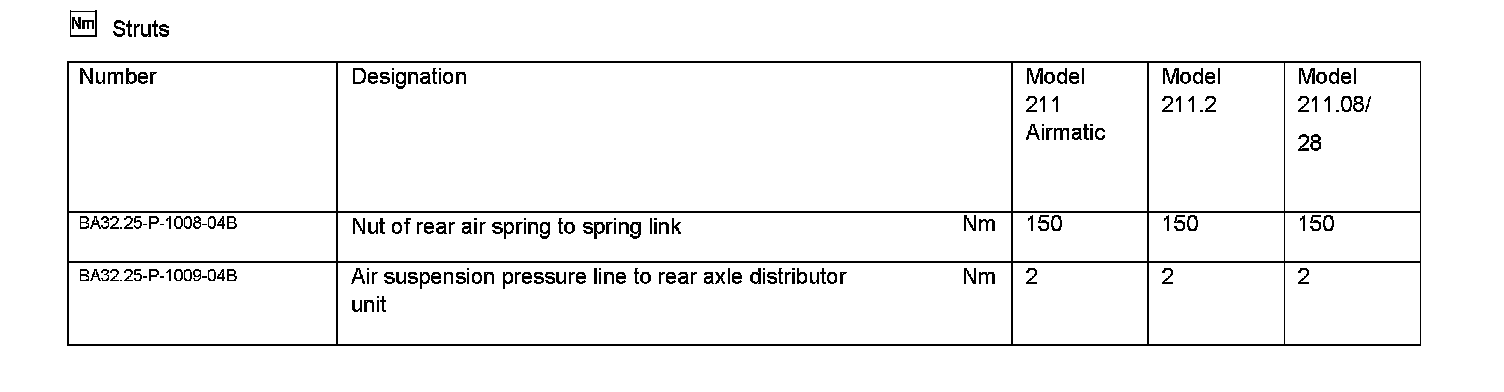

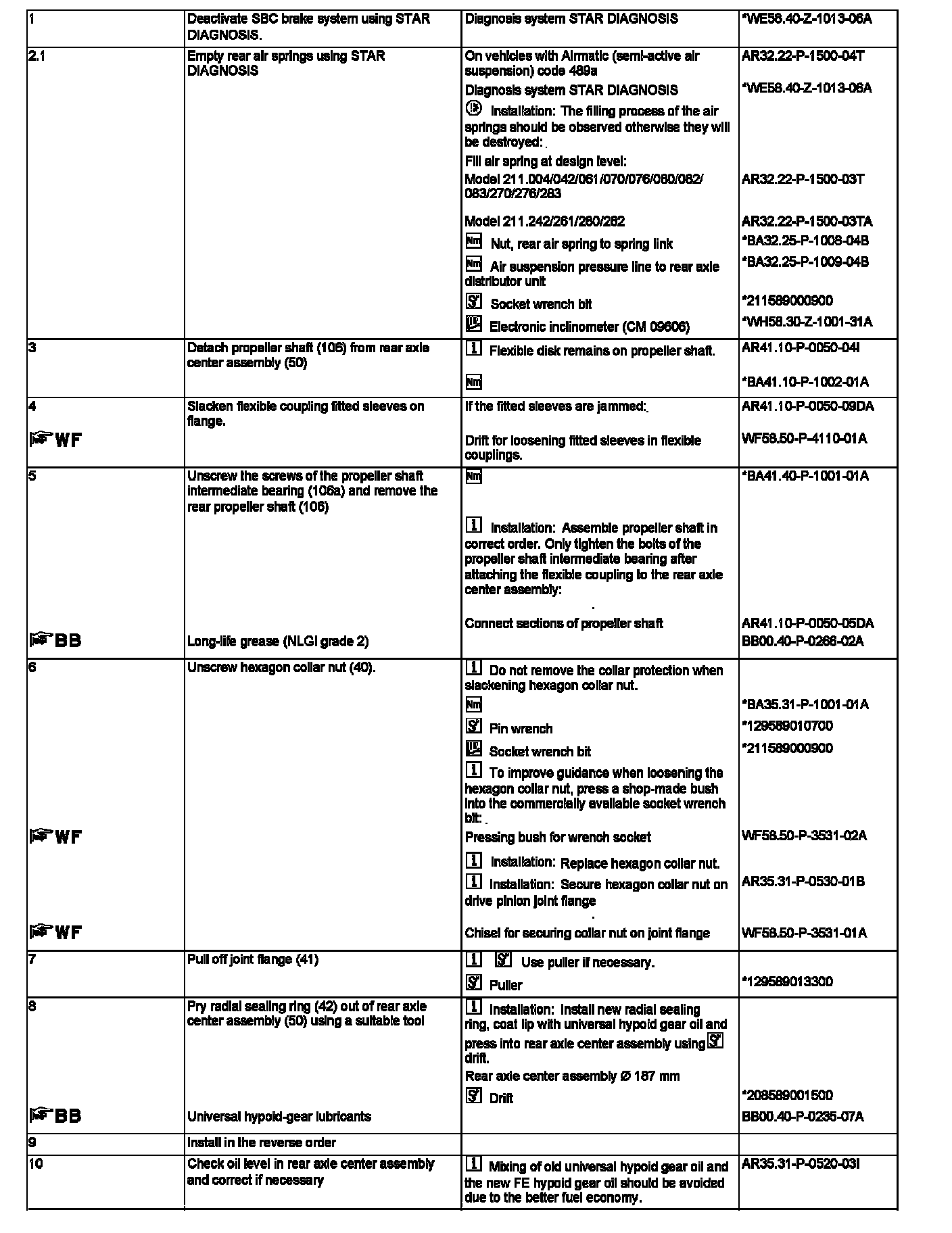

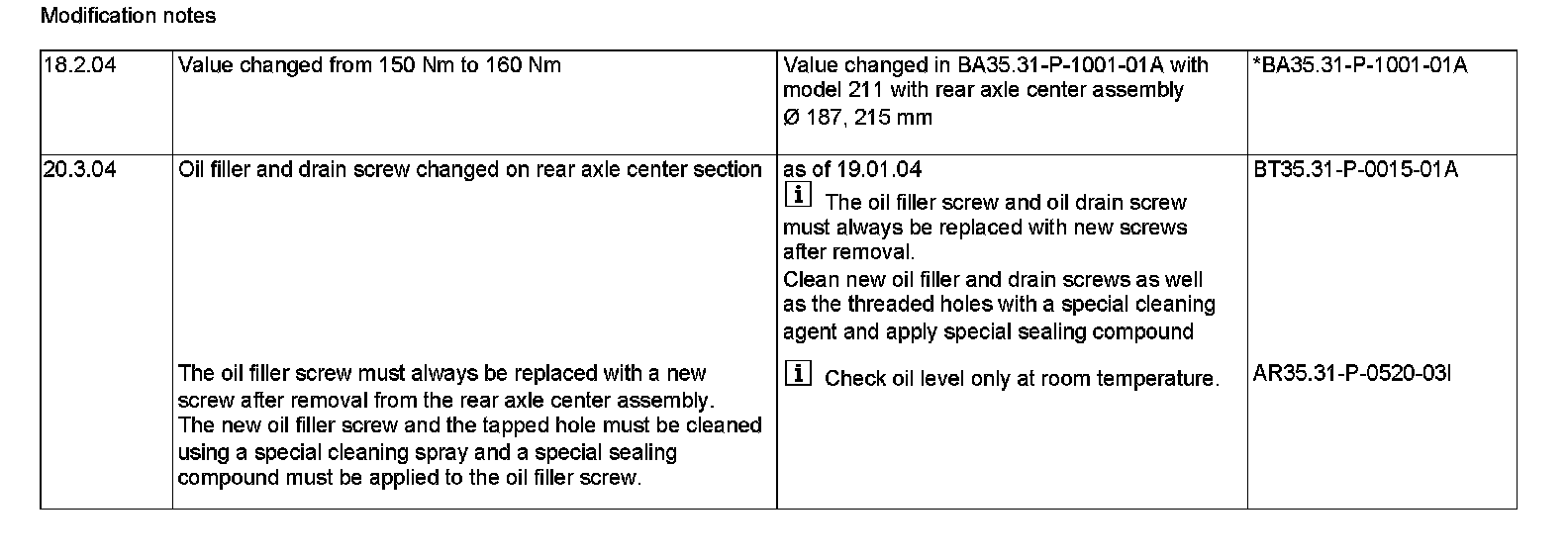

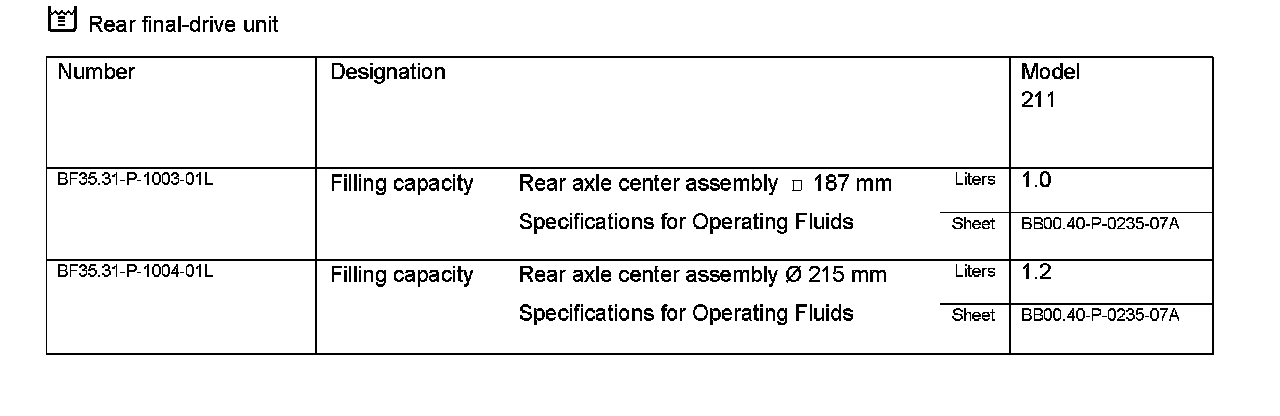

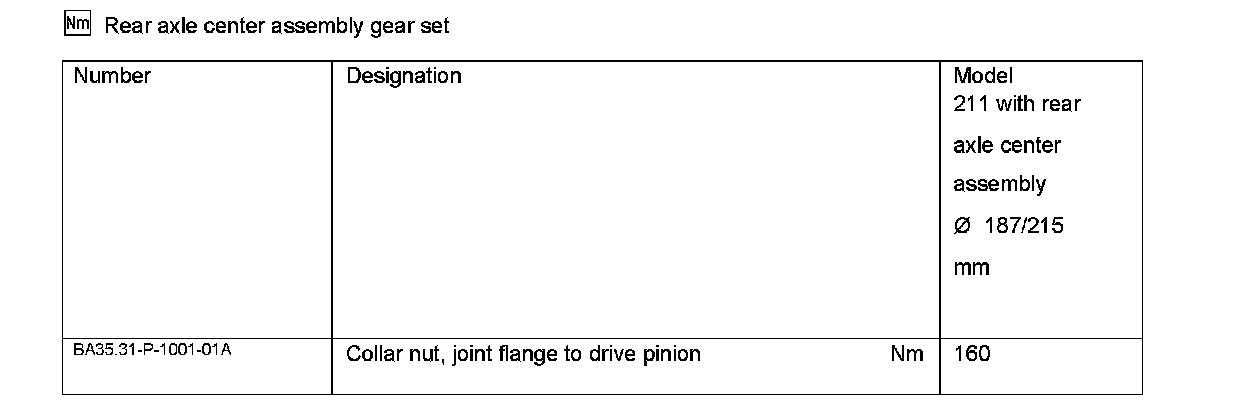

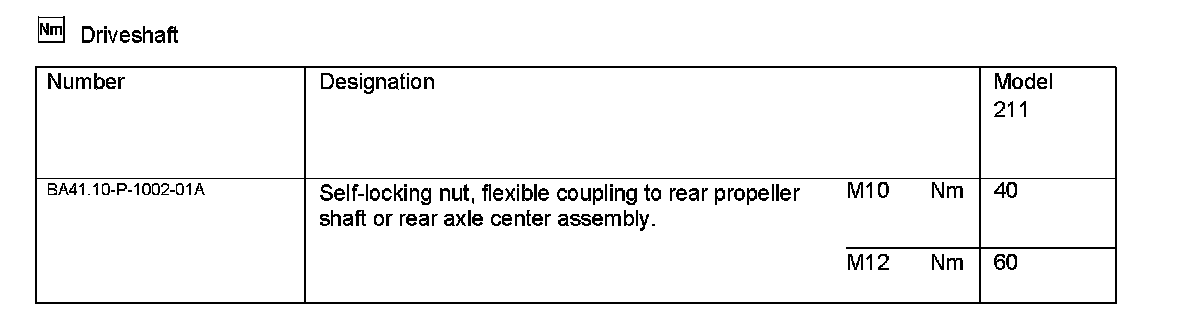

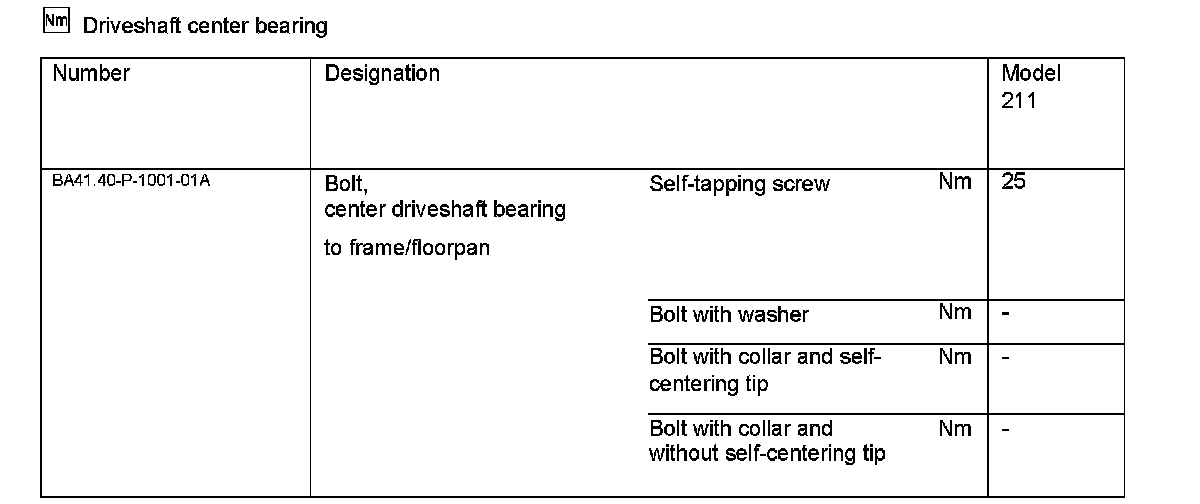

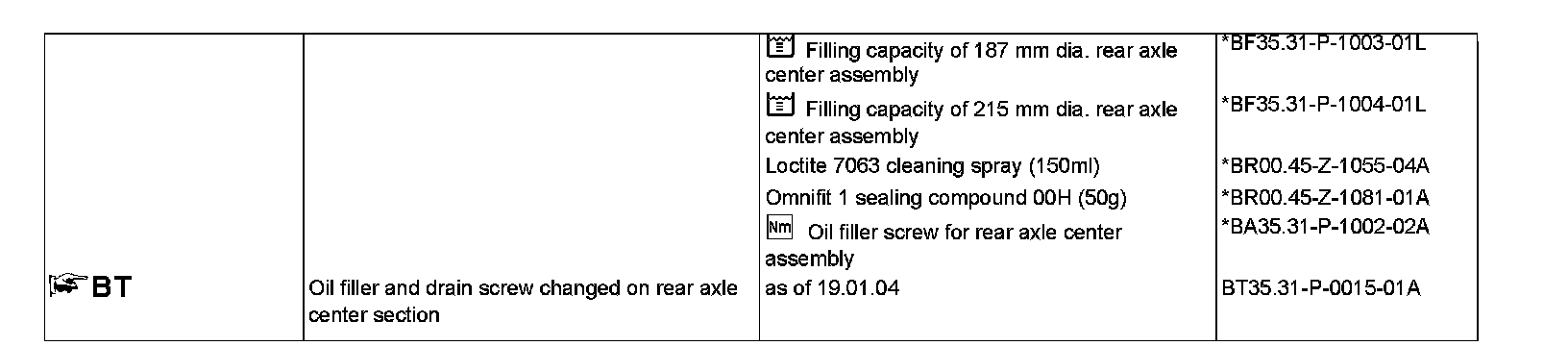

Replace radial seal ring on drive pinion (rear axle center assembly installed)









�m-:

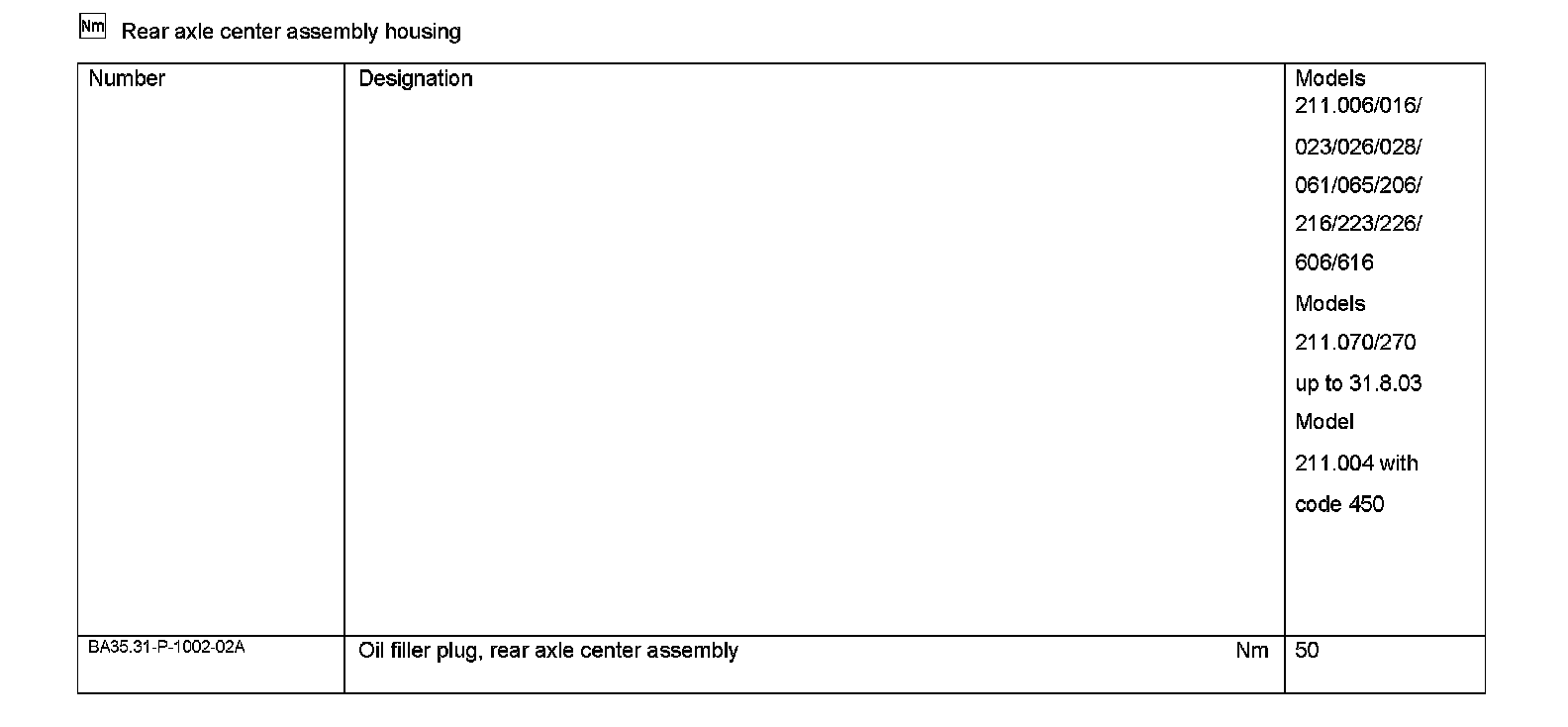

Rear axle center assembly housing:
