Home >> Mercedes Benz >> 2005 >> E 500 4MATIC Wagon (211.283) V8-5.0L (113.969) >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Seals and Gaskets >> Service and Repair >> AR33.30-P-0540VM Install New Radial Sealing Ring on Outside Right of Front Axle Gear

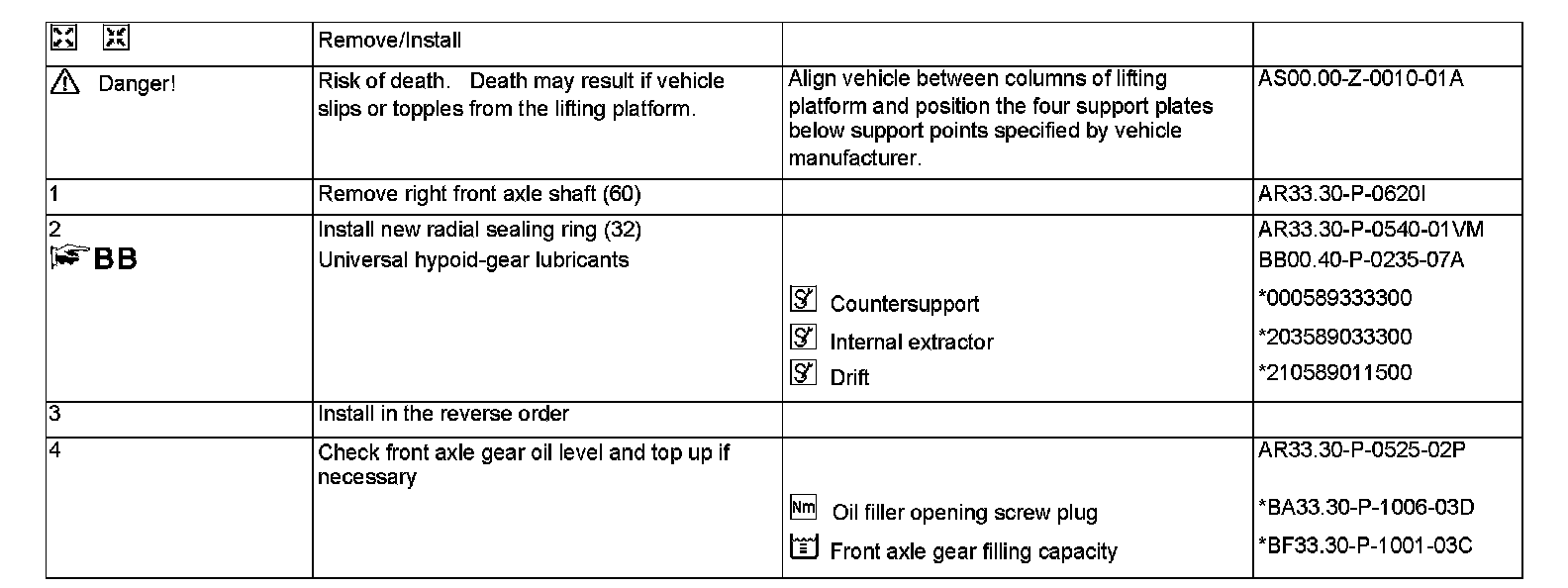

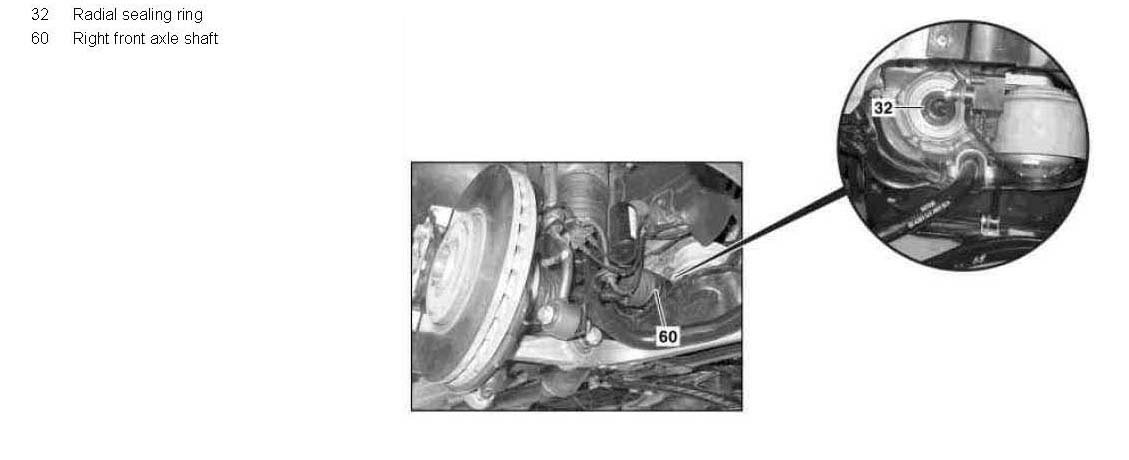

AR33.30-P-0540VM Install New Radial Sealing Ring on Outside Right of Front Axle Gear




AR33.30-P-0540VM Install New Radial Sealing Ring on Outside Right of Front Axle Gear
