AR33.30-P-0540-01VM Install New Right Outer Radial Sealing Ring

AR33.30-P-0540-01VM Install new right outer radial sealing ring
Universal hypoid gear oils (SAE 85 W-90)

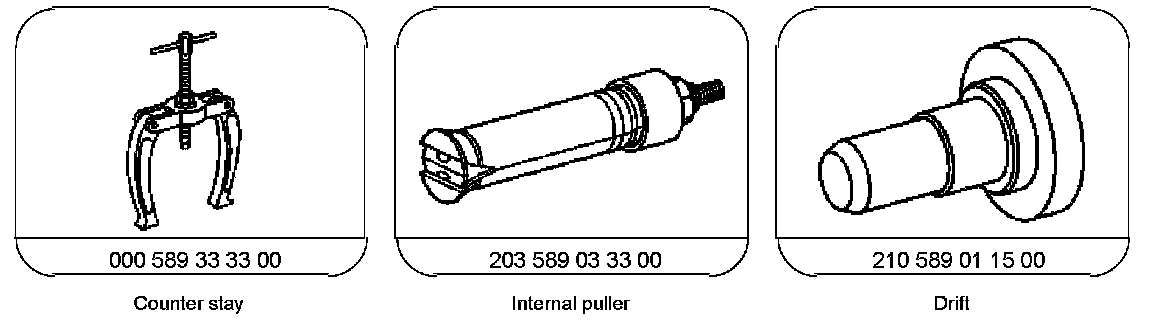

Special Tools:

Removing

Component Identification:

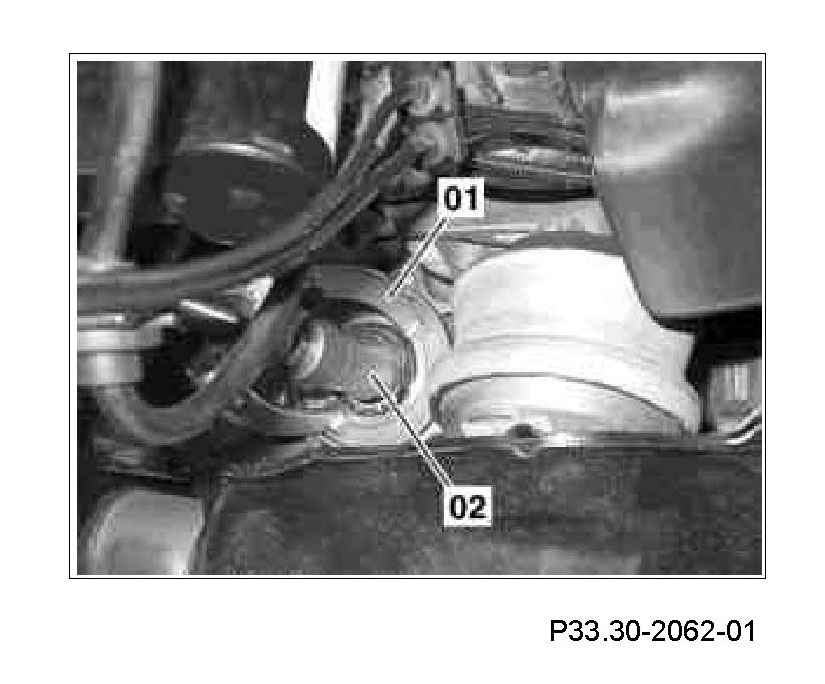

1 Pull out radial sealing ring using countersupport (01) and internal extractor (02).

Install
2 Coat sealing lip of new radial sealing ring with universal hypoid gear oil.
3 Press radial sealing ring into front axle gear housing using drift and suitable extension.
