AR33.30-P-0530-02P Replace Radial Sealing Ring

AR33.30-P-0530-02P Replace radial sealing ring
Universal hypoid gear oils (SAE 85 W-90)

Front Final-drive Unit:

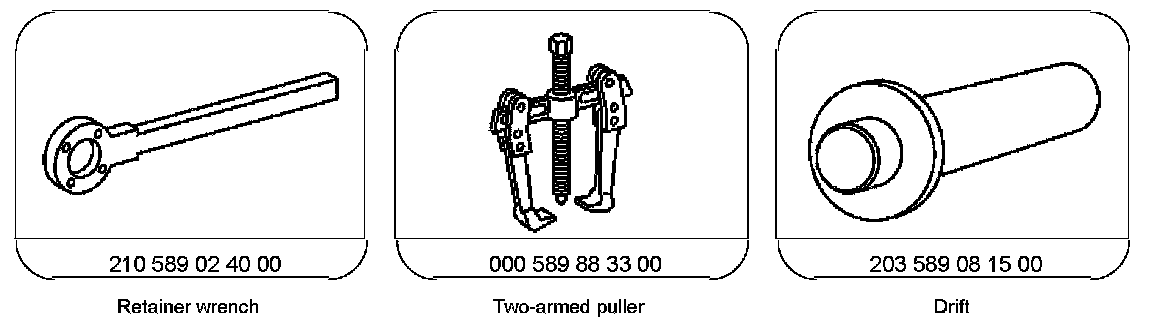

Special Tools:

Removing

Component Identification:

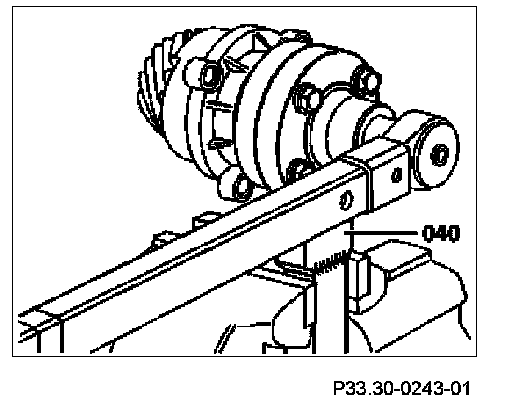

1 Attach retainer wrench (040) at flange of drive pinion with bearing cap and clamp in vise.
2 Slacken self-locking hexagon collar nut and unscrew.

Component Identification:

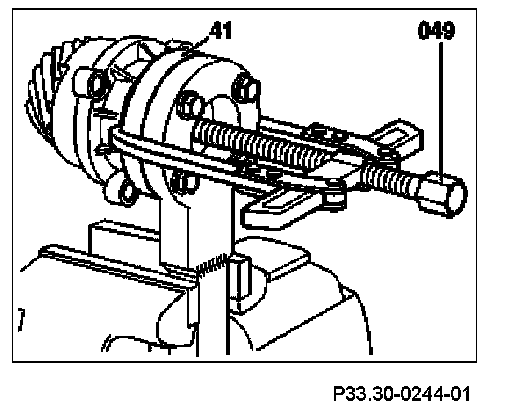

3 Detach flange (41) of drive pinion using puller (049).

Component Identification:

4 Clamp drive pinion together with bearing cap in a vise.

Use clamping jaws.

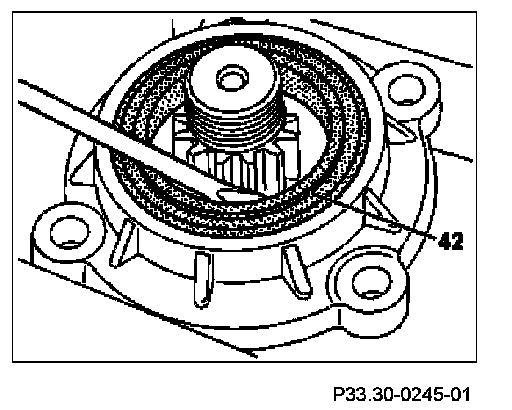

5 Press out radial seal (42) with a suitable tool.
6 Check flange of drive pinion for galling and replace if necessary.

Install

Component Identification:

7 Coat sealing lip of new radial seal (42) with universal hypoid gear oil.

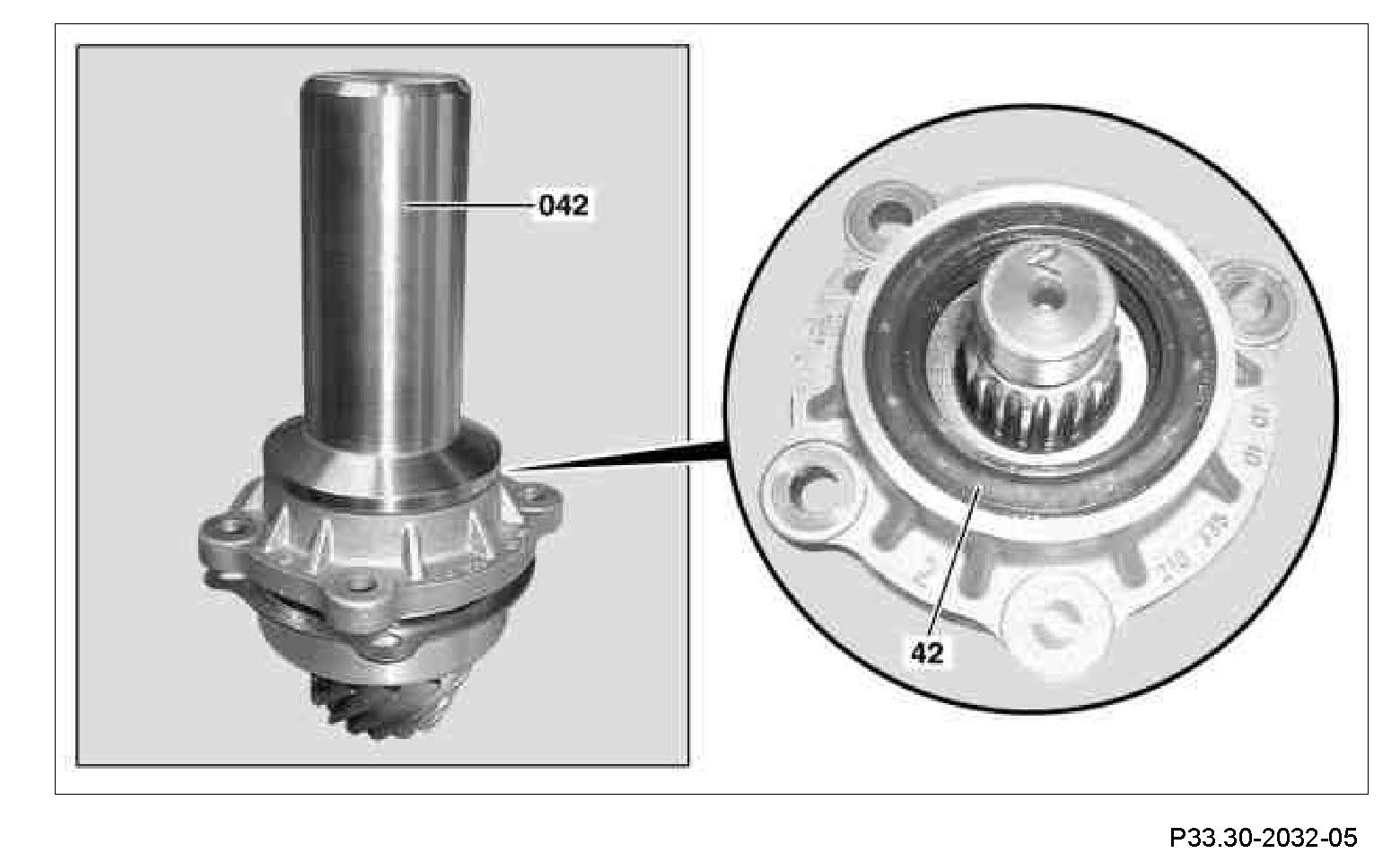

8 Use drift (042) to press radial seal (42) flush into bearing cap.

Component Identification:

9 Coat splines in flange (41) and at drive pinion with universal hypoid gear oil.

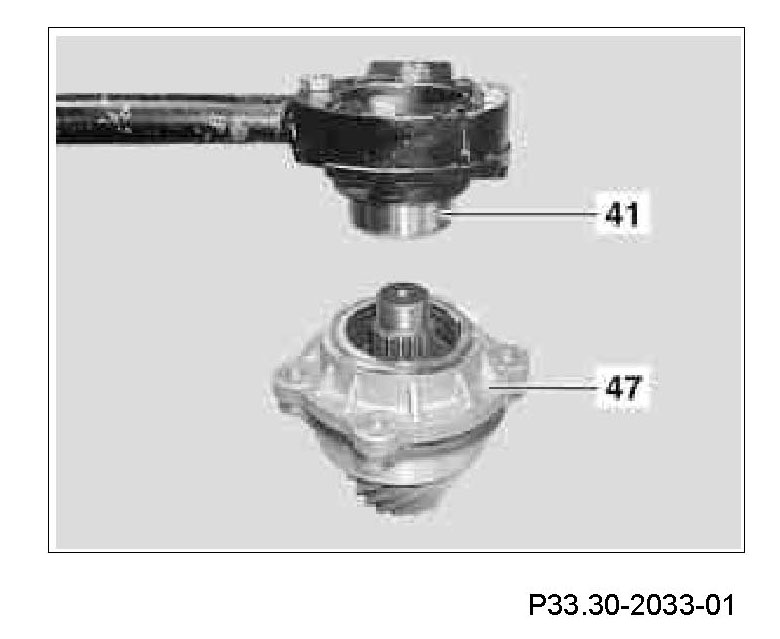

10 Press flange (41) onto drive pinion with bearing cap (47).

Component Identification:

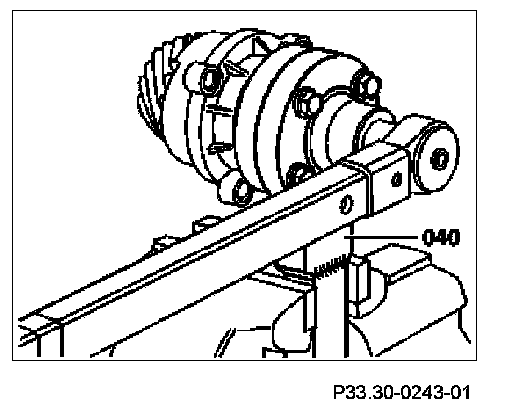

11 Clamp retaining wrench (040) in vise.
12 Coat contact surface of hexagon collar nut at flange with universal hypoid gear oil.

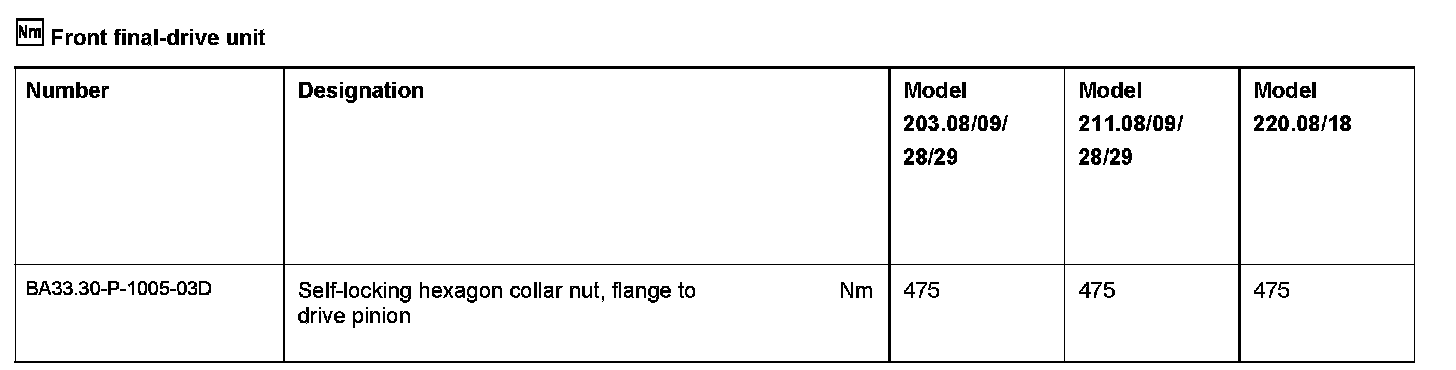

13 Screw on and tighten self-locking hexagon collar nut

Replace self-locking hexagon collar nut.

14 Remove retaining wrench (040).
