Home >> Mercedes Benz >> 2005 >> E 500 4MATIC Wagon (211.283) V8-5.0L (113.969) >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Differential Cover >> Service and Repair

Differential Cover: Service and Repair

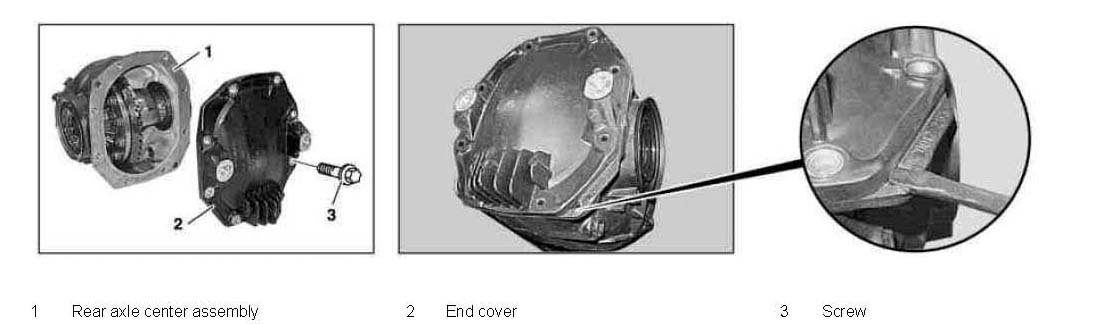

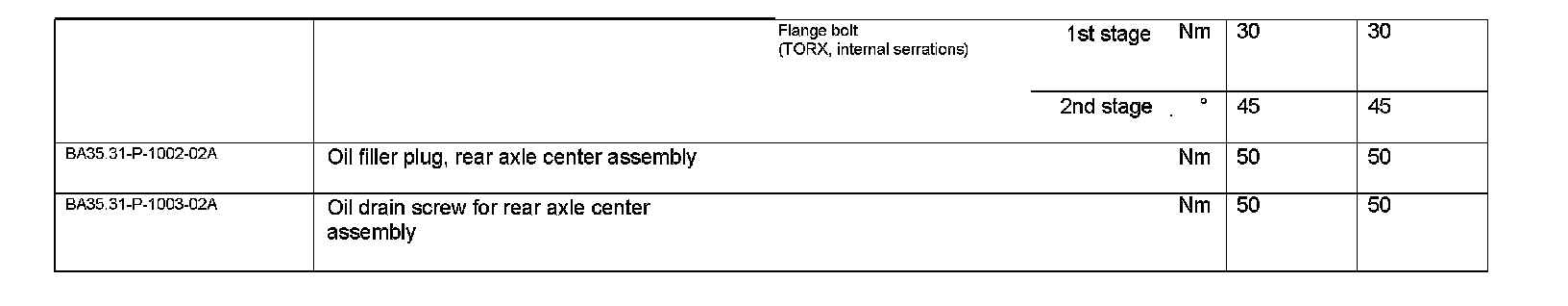

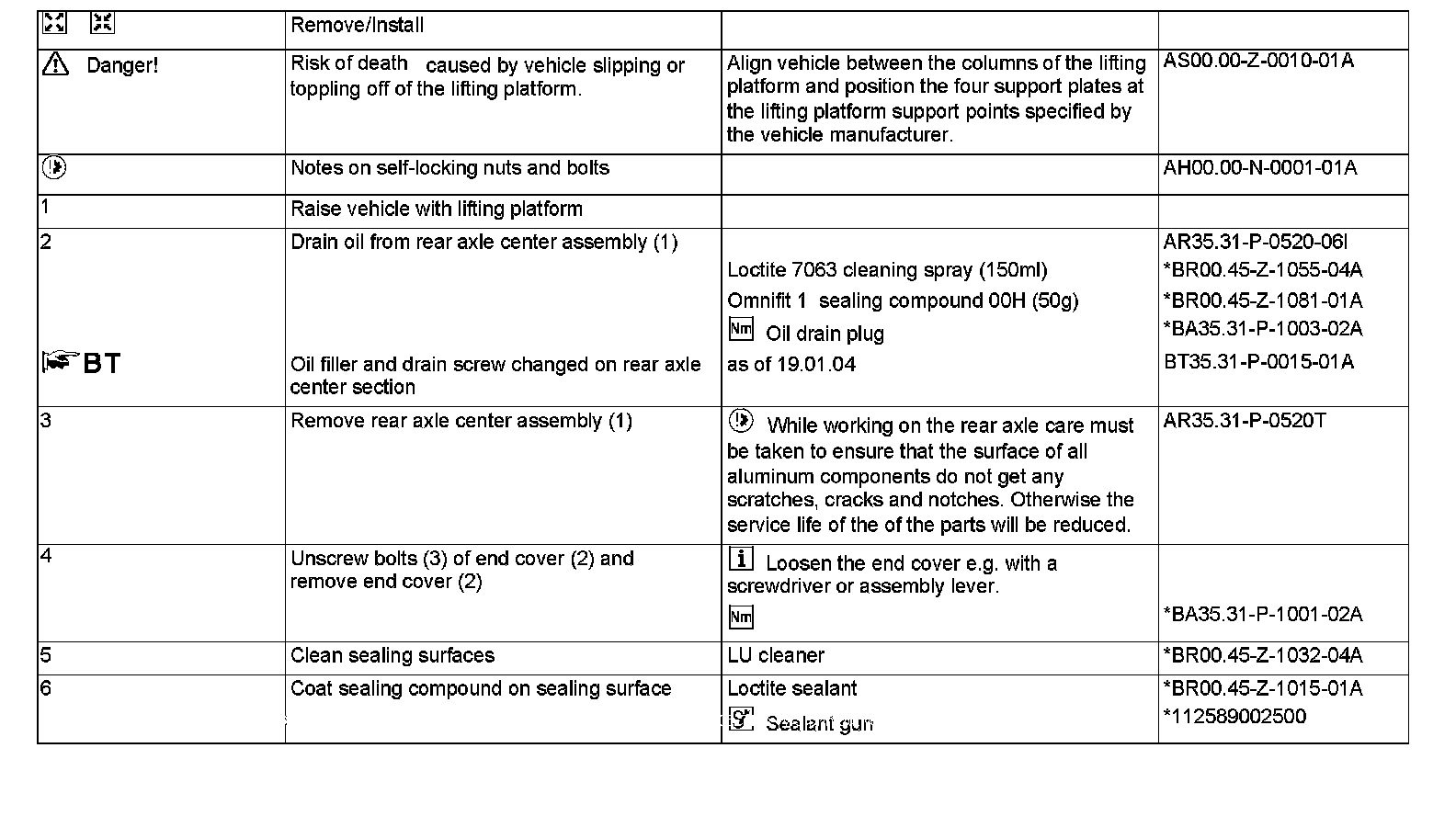

Install/remove end cover on rear axle center assembly
