AR35.20-P-0302TA Remove/Install Wheel Bearing

AR35.20-P-0302TA Removing/installing wheel bearing
- except CODE (489) Airmatic (semi-active air suspension)

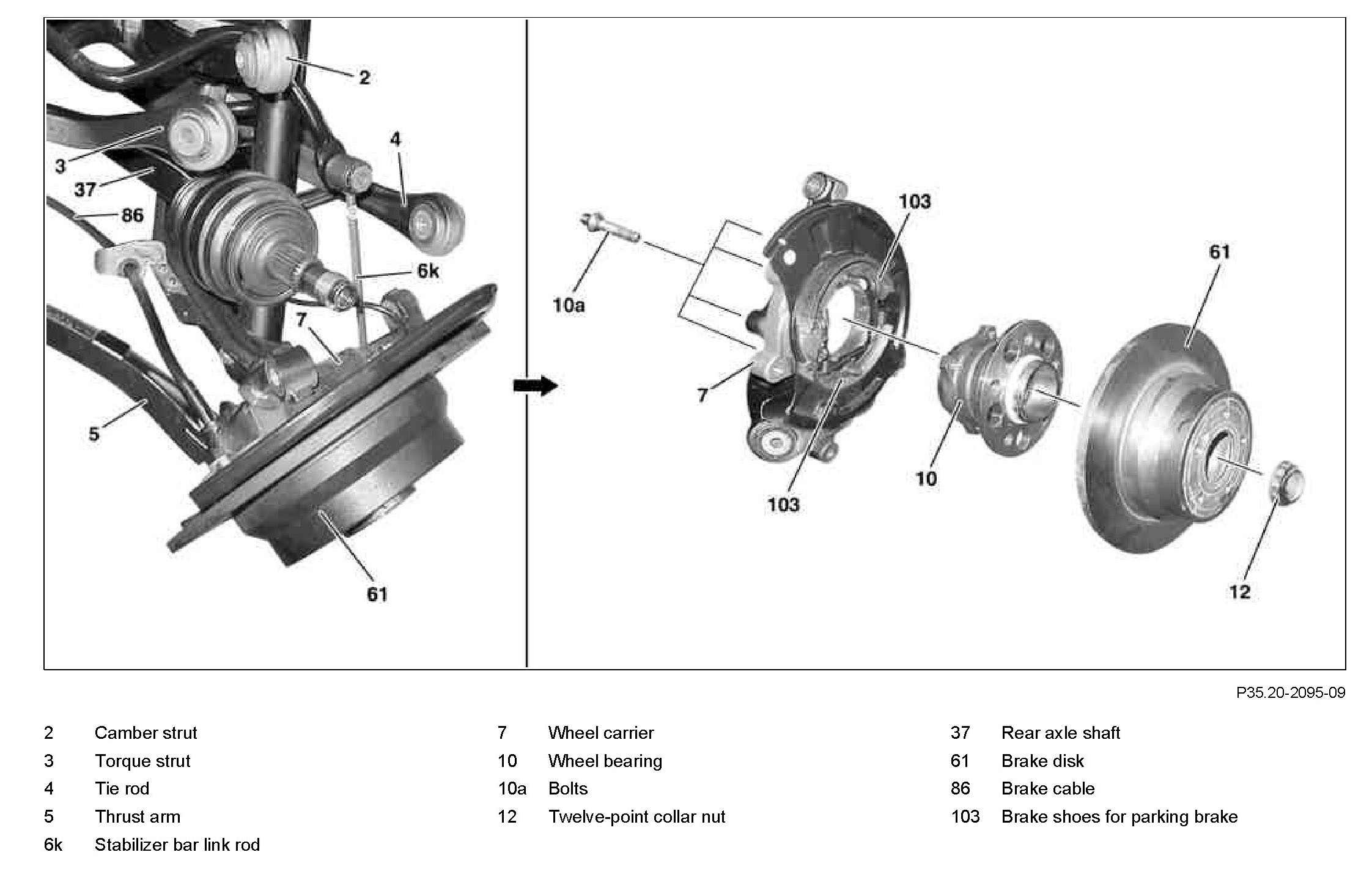

Component Identification:

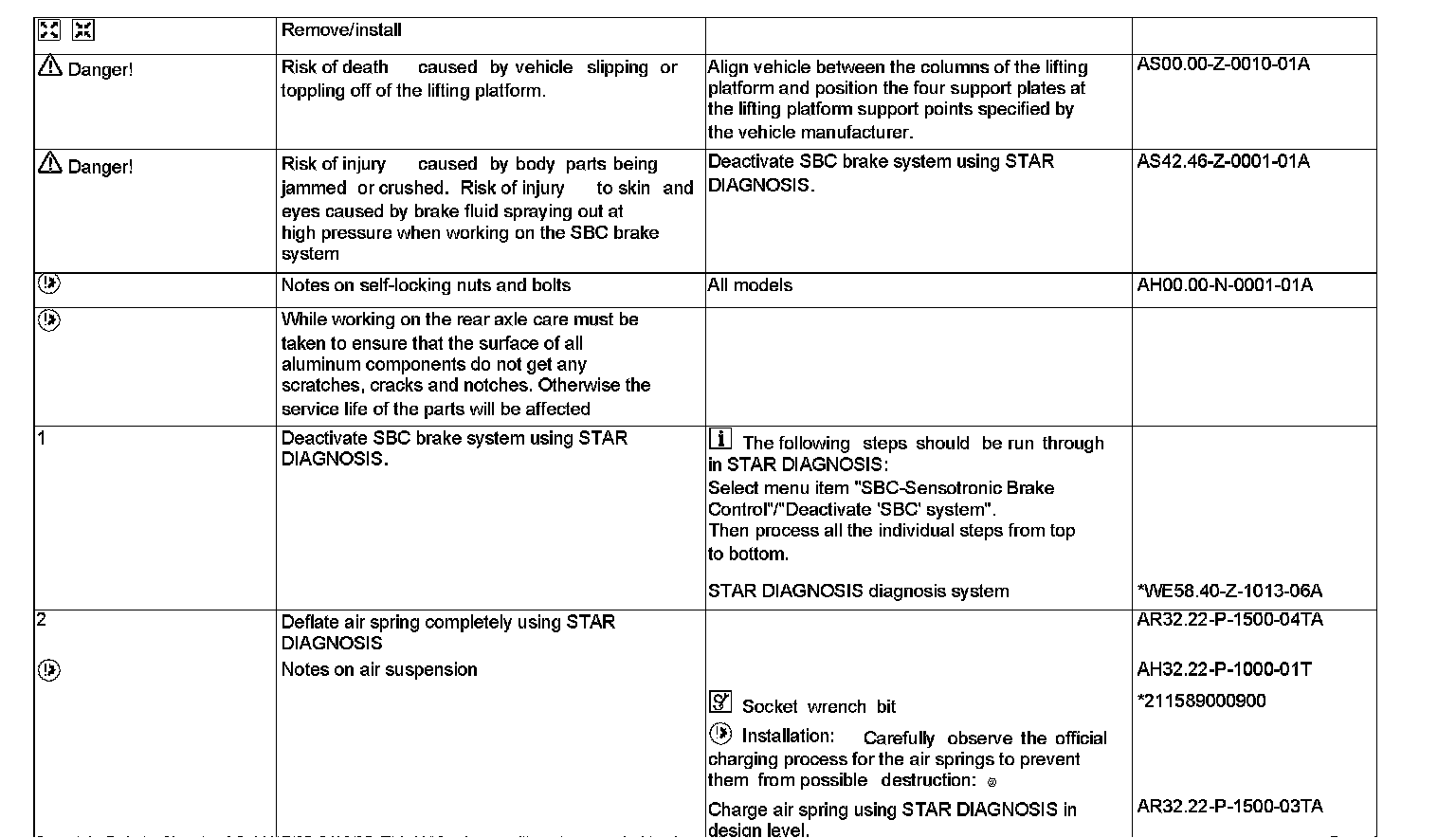

Steps 1 - 2:

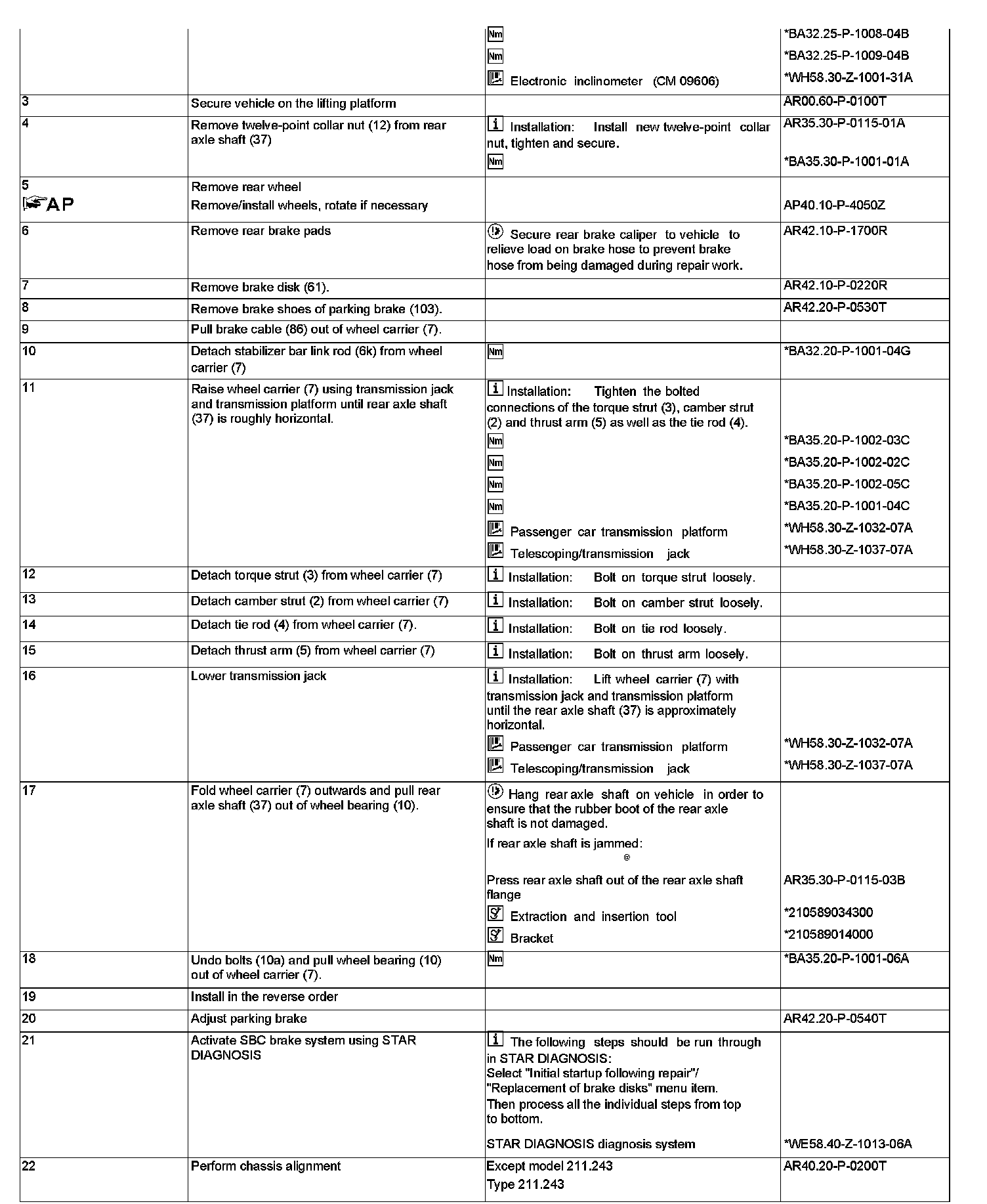

Steps 3 - 22:

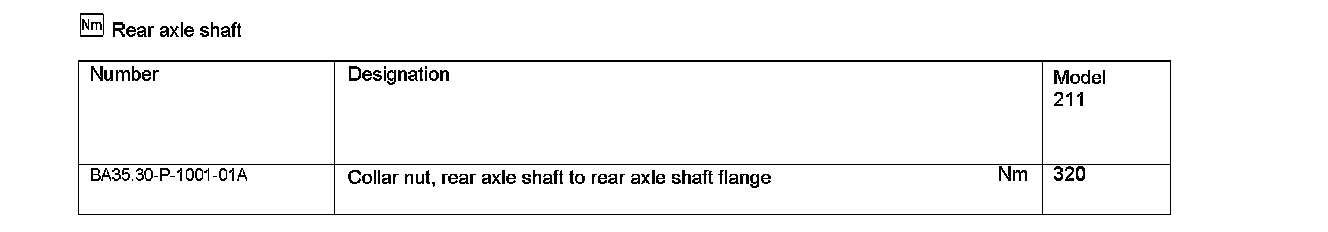

Rear Axle Shaft:

Rear Axle Torsion Bar:

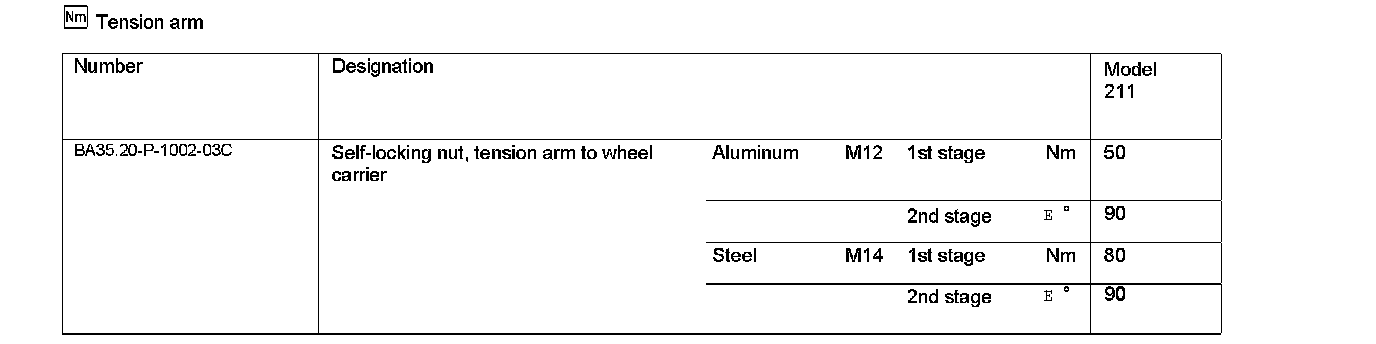

Tension Arm:

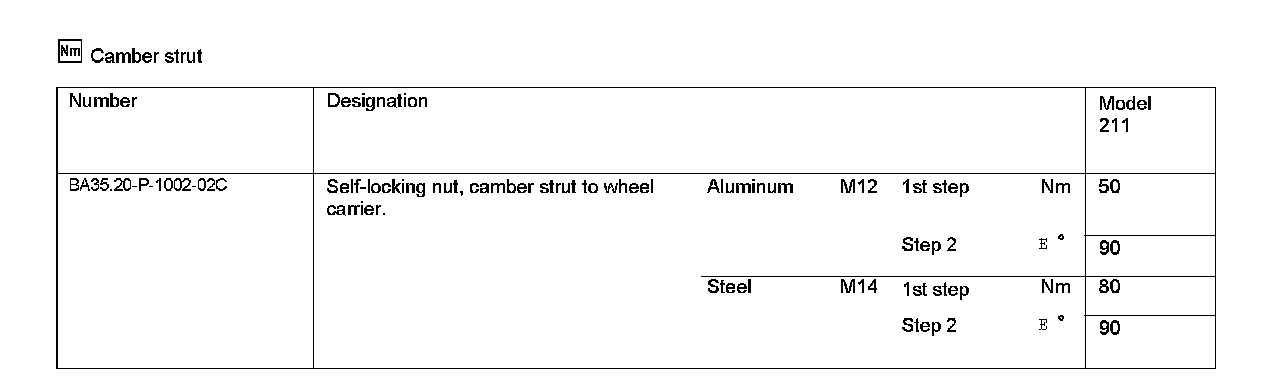

Camber Strut:

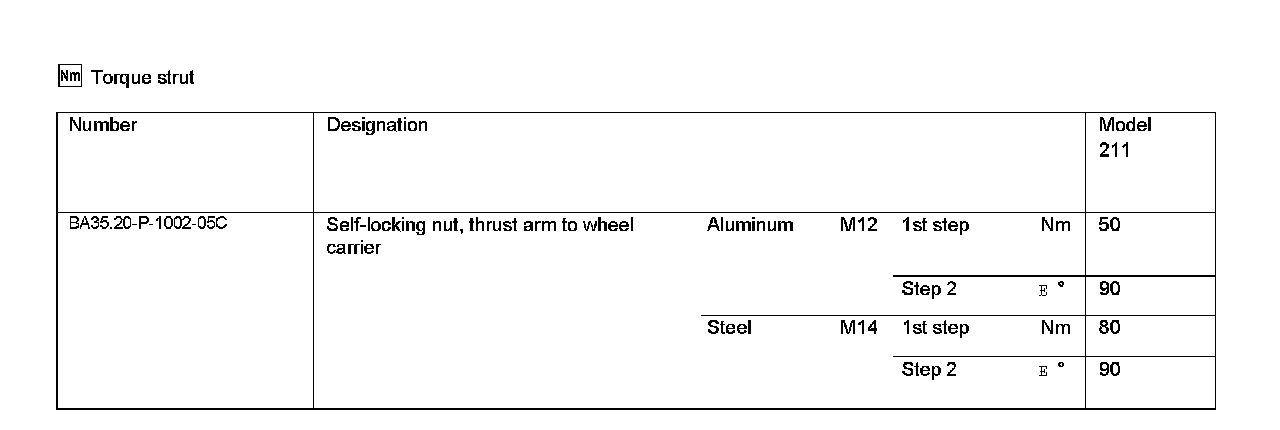

Torque Strut:

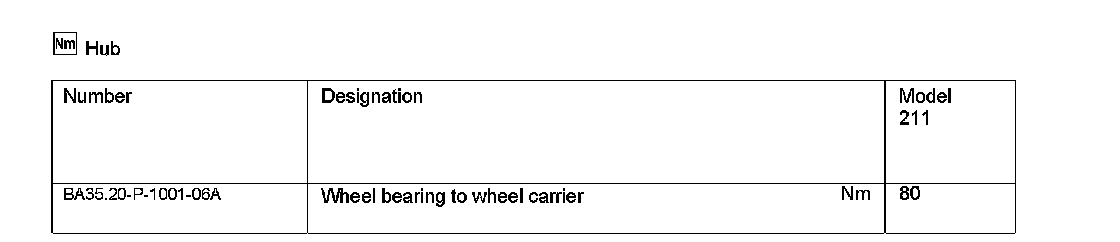

Hub:

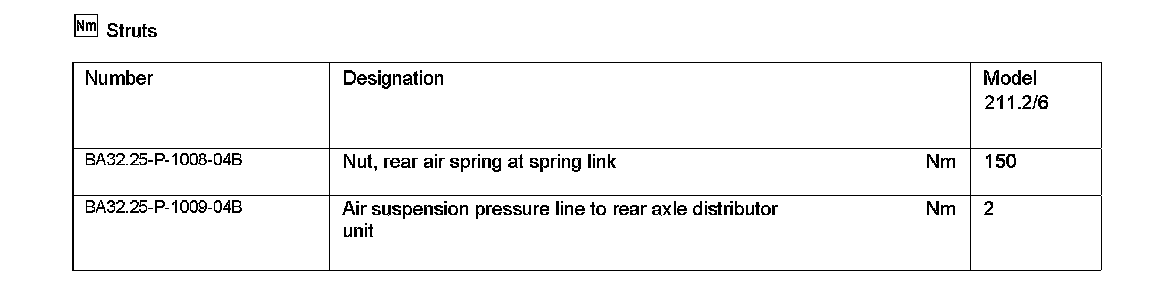

Struts:

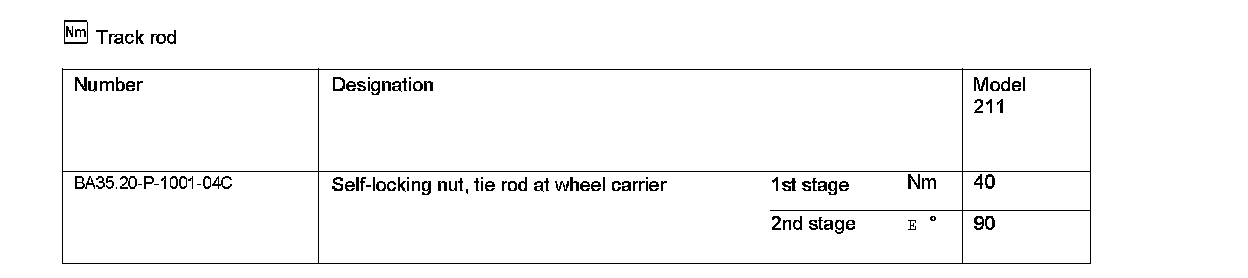

Track Rod:
